Technical Information

ACC 2
Technical Information

Model

ACC 2
ACC 2

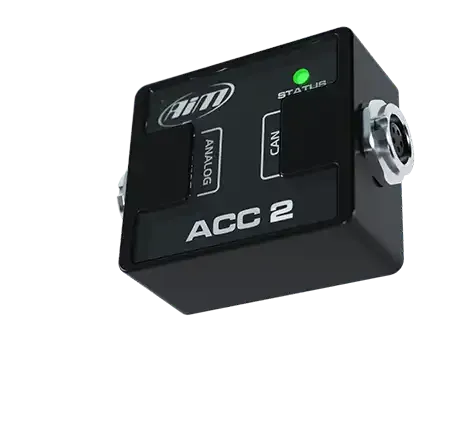

Overview

ACC is the new compact and powerful Analogue CAN Converter that manages up to four channels at 200 Hz each. Now compatible also with the Aim Solo 2 DL.

Key Features

  • ACC 2 manages 4 analogue inputs:
  • Thermocouples
  • Thermoresitances
  • 0-5 V
  • 0-12 V
  • ...to a max frequency of 200 Hz each.

Size & Weight

  • Dimensions: 44.0 x 38.0 x 19.8 mm
  • Weight: 50g

In The Box

  • 1 x ACC Converter
  • 1 x CAN Cable 100cm
  • 1 x 4 channel harness

Technical

  • Analogue channels: 4 fully configurable channels, 24 bit, A/D, 200 Hz each: Thermocouple (with dedicated cable), TR, 0÷5 V, 0÷12 V
  • External power: 9÷15 V operational, 12÷15 V fully operational
  • Connection: CAN
  • Connectors: 2 Binder 712 female connectors
  • Material: PA6 30% glass

Waterproof

  • IP 65

Diagram

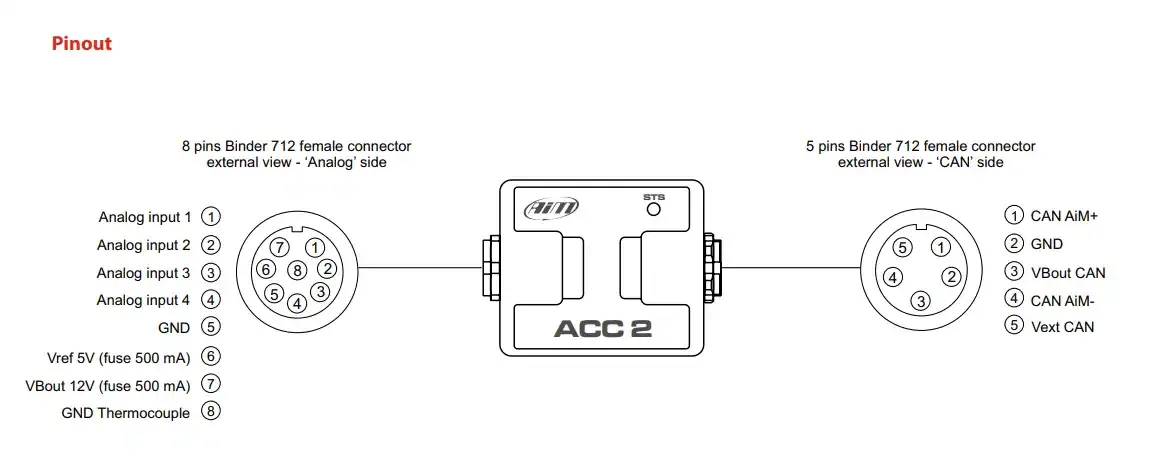

ACC pinout
