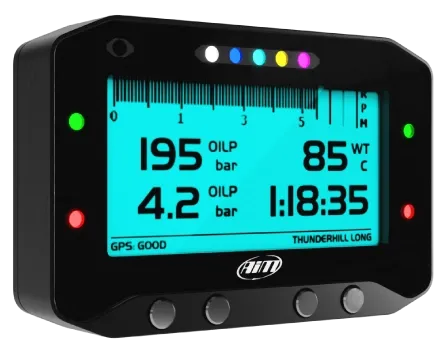

The Aim EVO4s Data logger is the new powerful and flexible datalogger, an evolution of the well known EVO4. It maintains the same one connector per channel connection logic, but with a completely redesigned internal electronic board. Aim EVO4s is fully compatible with the last generation of Aim dash/displays and with the new powerful Race Studio 3 software.
A wide range of sources for your data
The EVO4S car racing datalogger samples all the information you need via data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 module included in the kit. From analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.
Many sensors can be connected to Aim EVO4s via:
5 Analog channels with configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV inputs or thermocouple input, used to sample data coming from temperature, pressure, suspension and other kinds of sensors.
2 Speed inputs, which allow to monitor the different wheels behavior.
1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).
Internal three-axial accelerometer and gyro sensor
A built-in inertial platform lets you have the most powerful system for understanding oversteering, understeering, banking, etc.
EVO4S features a LOW SIDE type (switch to ground) digital output. You can configure it in order to turn it on or off depending on the value of the analog or digital inputs, ECU values, expansion values, GPS information or math channels.
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
Expand the system according to your needs
Thanks to GPS05 Module (included in the kit) and its GPS Manager software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
It adds 4 K thermocouples.
LCU-One Lambda Controller
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.
Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers.
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Race Studio 3
Race Studio 3 is the heart of your MXG managing all your racing activities.
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
With Race Studio 3 you can also analyse all data recorded by MXG and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
A wide range of data sources
EVO4S is the evolution of the well known EVO4. It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and with the new powerful Race Studio 3 software.
EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.
Connection Kits For Sport Bikes
Aim designed specific applications to allow easy installation and connection of EVO4S on sports bikes.
Installation kits for Ducati, Honda, Kawasaki, and Suzuki are currently available. More will follow.
In The Box
- EVO4S, harness,
- GPS08 Module
LEDs: 1 system status
CAN connections: 2
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 1,000 industry leading ECUs
Expansion CAN connection: GPS, Channel Expansions, Thermocouple Expansions, Lambda Controllers, SmartyCam HD
Analog inputs: 5 fully configurable, max 1,000 Hz each
Digital inputs: 2 Speed inputs, lap signal, coil RPM input
Digital outputs: 1 (1 Amp max)
Accelerometer: Internal Three-axial ± 5G + Three-axial Gyroscope
Internal memory: 4 GB
Body: Anodized aluminum
Connectors: 13 Binder connectors
Dimensions: 130 x 35 x 46.6 mm
Weight: 330 g
Power consumption: 350 mA
