Aim Evo 5

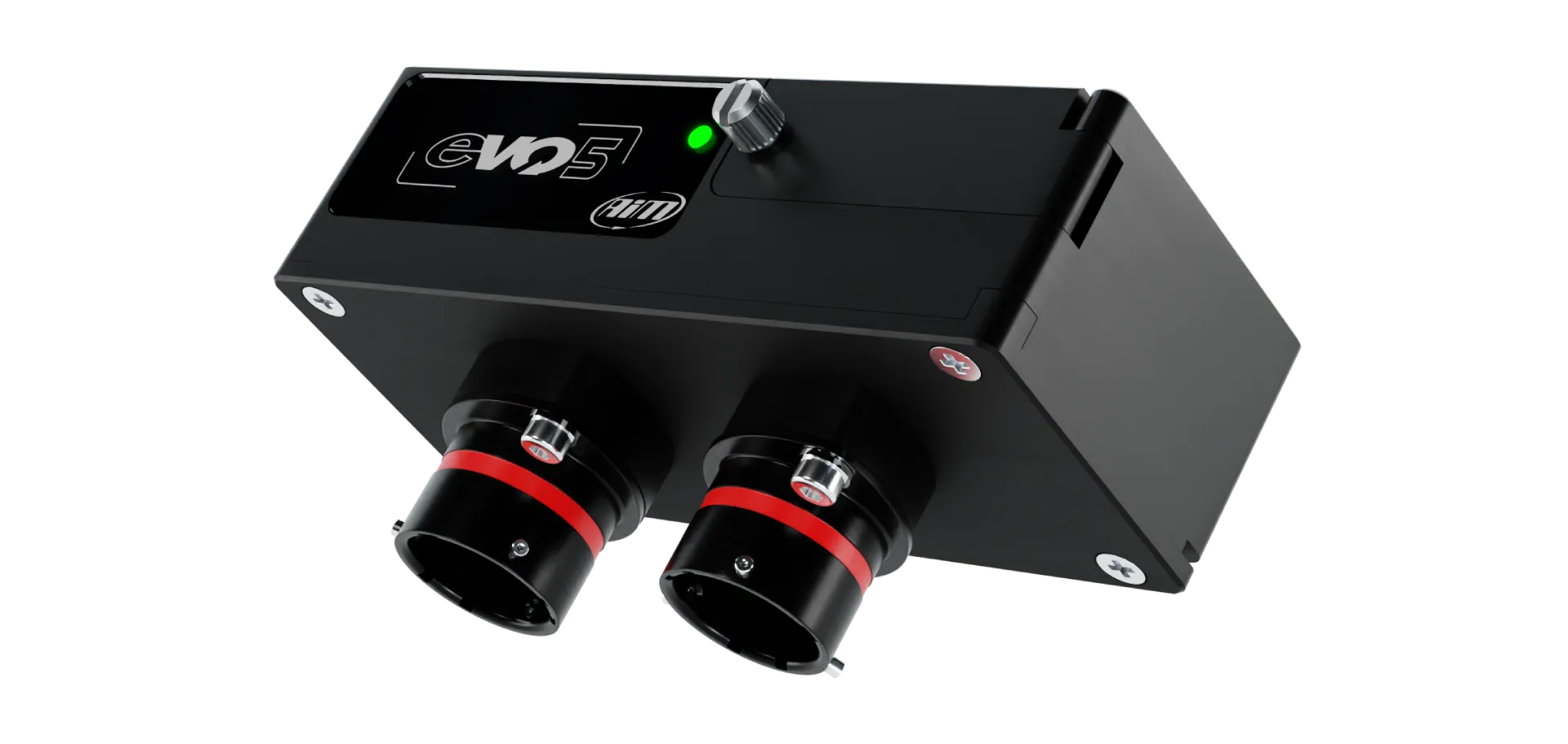

The New Aim EVO 5 data logger, is the evolution of the traditional logger that over the years has become a standard de facto data acquisition system in a huge amount of racing championships.  With its compact aluminum body, the Aim EVO 5 data logger can be easily placed in any vehicle. Its configuration with the new Race Studio 3 software is simple and immediate. Compatibility with Aim visors will come soon.

EVO5 samples all the data you need from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro also from the GPS08 Module included in the kit.
And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 8 configurable analog channels, to the RPM input and to 4 wheel speed inputs.

Two Digital Outputs

EVO 5 Two digital outputs

EVO5 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs.

They permit to automatically run external systems,i.e. to switch on/off additional lights, to activate/ de-activate a cooling fan or circulation pumps, etc. when a certain event happens

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

more info

Internal SD card

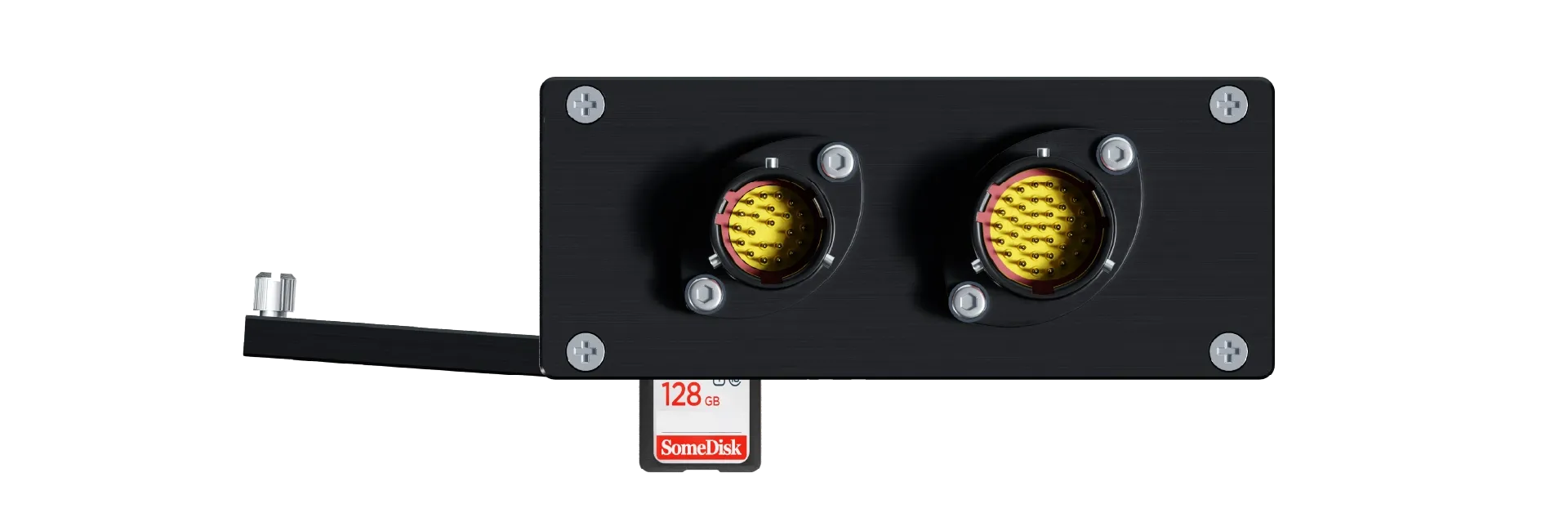

The internal SD card (not included in the box) permits to record all possible data you may ever need. The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent any data loss possibility.

No way to have a faster data downloading: you remove the SD and it is done! Of course, a USB connection is available, too.

Wi-Fi Connection

Configure the system and download your data over a secure 802.11 WiFi connection, even if your car is 100 meters far from you.

wifi
Internal SD card

Two multi-channel Motorsport connectors

Two multi-channel Motorsport connectors: simple and straightforward, one top quality harness for ALL your connections. A 37 pins connector for main applications (power, CAN, Aim CAN network, etc.) and a 22 pins connector for additional functions like CAN 2, digital outputs.

Two multi-channel Motorsport connectors

Expand the system according to your needs

Channel Expansion It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

LCU-One Lambda Controller

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

Memory Module
Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers.

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

Connection Example

Race Studio 3

Race Studio 3 is the heart of your MXG managing all your racing activities.

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Aim MXG Race Studio 3
MXG RS3 Analysis

Analysis

With Race Studio 3 you can also analyse all data recorded by MXG and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

A wide range of data sources

MXG is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.


In The Box
  • EVO5
  • harness
  • GPS08 Module
  • software
In The Box
  • EVO5
  • SD card
  • harness
  • GPS08 Module
  • software
Technical Specs

ECU connection : CAN, RS232, K-Line
External modules connection : GPS Module, Channel Expansion, TC Hub, Lambda controller, SmartyCam HD
Analog inputs : 8 fully configurable: 0-5V, 0-12V, K thermocouples. Max freq 1 KHz each
Digital inputs : Coil RPM and 4 speed inputs
Inertial platform : Internal 3 axis ±5G accelerometer + 3 axis gyro
Digital outputs : 2, up to 1 A each
Second CAN : Yes
Wi-Fi connection : Yes
Internal memory : 4 GB
SD card : Internal: up to 128 GB
Connectors : 2 Motorsport
Body : Anodized aluminum
LEDs : 1 system status
Dimensions : 114.4×47.2×58.8 mm
Weight : 300 g
Waterproof : IP65

evo 5 dimensions_drawing

Accessories

ACCESSORIES

22 pins harness
Part number: V02586030
Download the tech sheet

37 pins harness with 1 thermocouple
Part number: V02586040
Download the tech sheet

37 pins harness with 2 thermocouples
Part number: V02586050
Download the tech sheet

SPARE PARTS

37 pins harness
Part number: V02586020
Download the tech sheet

GPS08 Module
More info
