Aim GS Dash

Aim GS Dash Display for EVO4s and EVO 5

Aim GS Dash has been designed to show data sampled by the new generation of Aim loggers, EVO4S and EVO5. It displays all racing data coming from your vehicle’s ECU, from the accelerometers and from the GPS. Data can be displays as well as from your custom sensors.

Aim GS-Dash Display for EVO4s and EVO 5

Easy and immediate readability

In its compact structure, Aim GS Dash  features a wide 268×128 pixel display to maximise readability.  The screen can be backlit in one of the seven available colors and the incorporated light sensor makes brightness and contrast ideal in all light conditions.

GS DASH Easy and immediate readability

Up to 9 pages, The Aim GS Dash Shows You The Data You Need

GS-Dash swaps among pages showing lap times and data in a 100% customisable way. Just choose your data and create your pages displaying up to 8 fields each. The “RPM and Lap Time” page layout is also available to display RPM Graph, Lap Time and three channels of your choice.

The Aim GS Dash Shows You The Data You Need

Aim GS Dash Lap Times

You can visualise the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).

GS DASH Lap Times

Aim GS Dash Fully configurable shift lights and alarm LED’s

The GS Dash features five individually configurable RGB LED shift lights. You will choose colour and value thresholds for their activation. In addition, they can also be configured to show your best lap/split time or monitor RPM level. Alarms LED’s are configurable as well and can be managed in a very flexible way: you can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch-off.

GS DASH Fully configurable shift lights and alarm LEDs

Easy Configuration

Shift Lights and alarms are to be configured using Race Studio 3 configuration panel.

AIM GS DASH Easy configuration

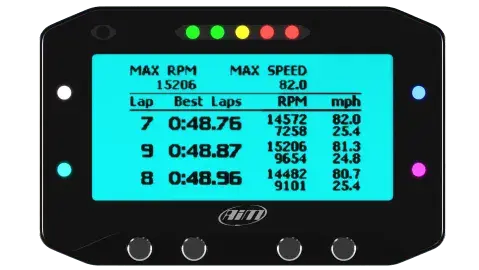

Recall Your Session Highlights

A key-data summary is available at the end of each racing session. You can also see a list of all the laps of the sessions, with their times, min/max speed and min/max RPM’s.

GS Dash, Recall your session highlights

GS Dash Keyboard Operations

GS-Dash can perform some operations via the pop-up keyboard:

  • Enabling/disabling the back-light
  • Selecting the track you are racing in the list of the 30 nearest tracks automatically prompted by GS-Dash
  • Checking GS-Dash firmware version
  • Deleting the data stored in EVO4s / EVO5 memory
GS Dash, Recall your session highlights

Compact and resistant chassis

Its small dimension makes it particularly suitable for small cockpit installation (i.e. bikes, formula cars). Manufactured in aluminum with edge-to-edge glass and metallic pushbuttons the Aim GS Dash is robust and fully waterproof.

GS Dash Compact and Resistant Chassic
In The Box

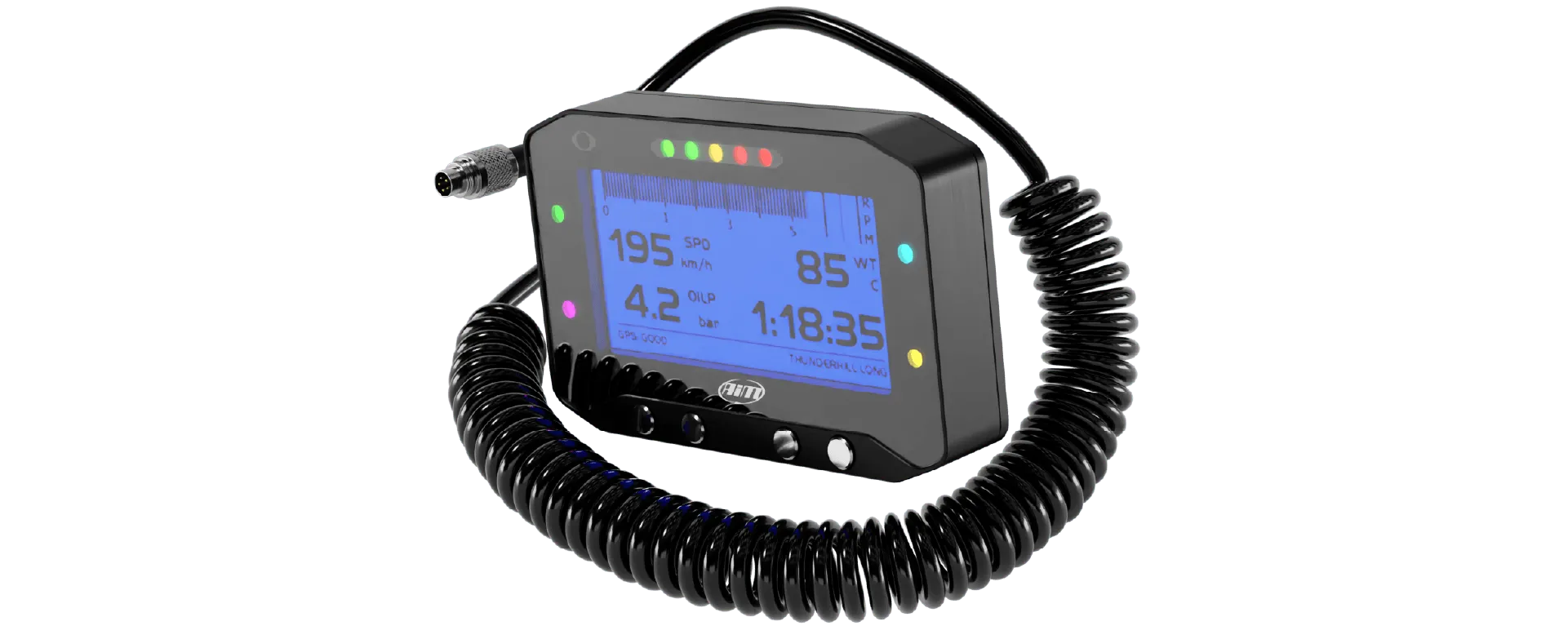

  • GS-Dash with spiral cable
Technical Specs
Display resolution: 268 x 128 pixels
Backlight: 7 configurable RGB colors
Ambient light sensor: Yes
Shift lights: 5 configurable RGB LEDs
Alarm LEDs: 4 configurable RGB LEDs
Display pages: Fully configurable
Body: Aluminium
Pushbuttons: Metallic
Dimensions: 127.8 x 82 x 22.2 mm
Weight: 380 g
 GS Dash dimensions drawing
