Aim MX 2E Lotus Plug & Play Dash Logger Kit

Ride lighter, Read clearly, Go faster
MX 2E Dash Cluster

Driving a Lotus is a visceral experience, the pleasure of driving and the thrill of performance.

A Lotus owner only wants the very best for their car. That’s the reason why we designed the AiM MX-2E dash-logger. It adds a timeless modern feel  to  an iconic lightweight British sports car.

Driving a Lotus is a visceral experience

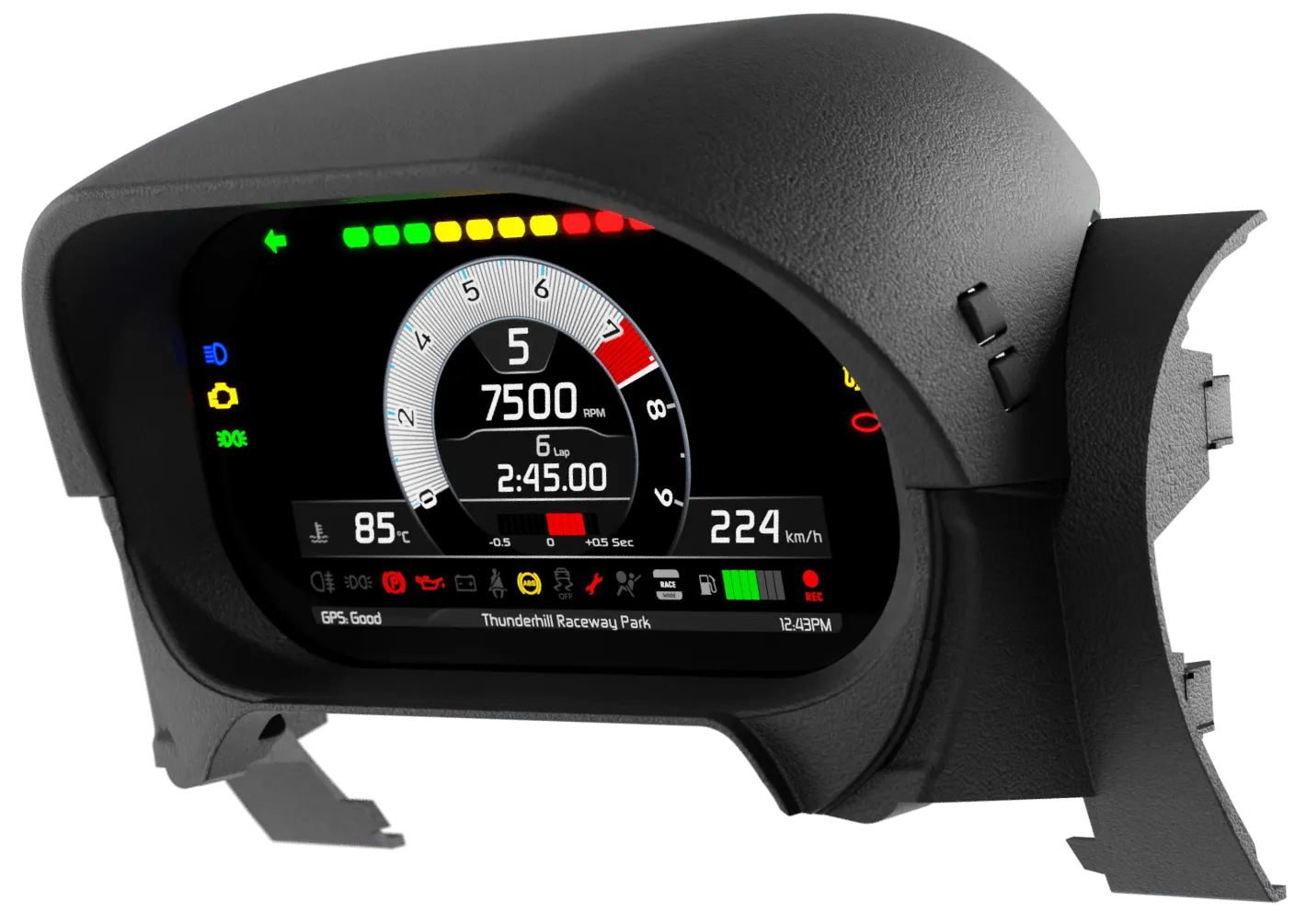

Full Plug & Play Dash Logger Kit

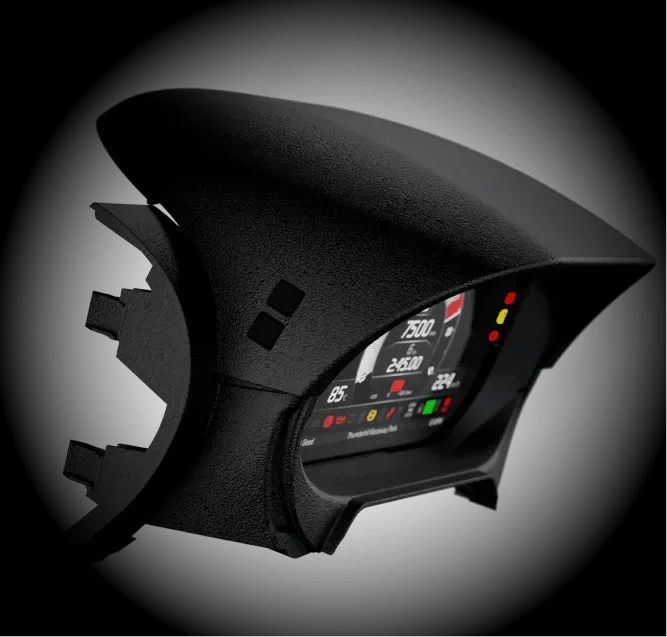

Featuring an ad-hoc engineered cluster in the kit, with 4 integrated buttons, MX-2E is designed to be easily installed on the Elise and Exige models produced in the years 2014-2019 and it’s fully Plug & Play.

Driving a Lotus is a visceral experience

High contrast TFT display

Wherever you are driving, on either a bright race track or through the lights and shadows of a mountain pass, the wide high contrast TFT display integrates an ambient light sensor which keeps the back light at optimum brightness levels. This guarantees an always perfect reading of the data shown.

Its aluminium body makes MX-2E a lightweight device and the racing inspired design will give your car an even better and more aggressive look.

High contrast TFT display

Road or Track: choose your display

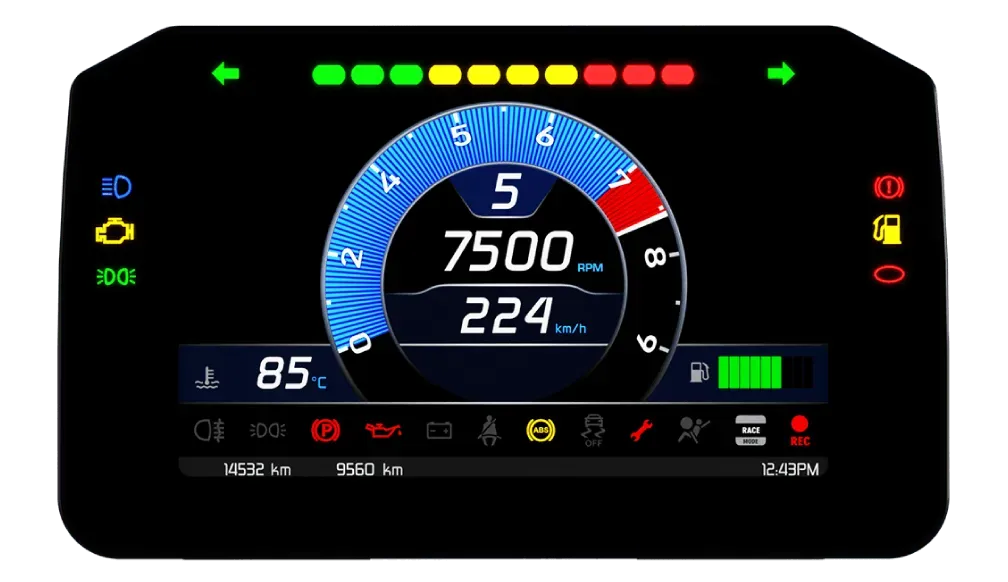

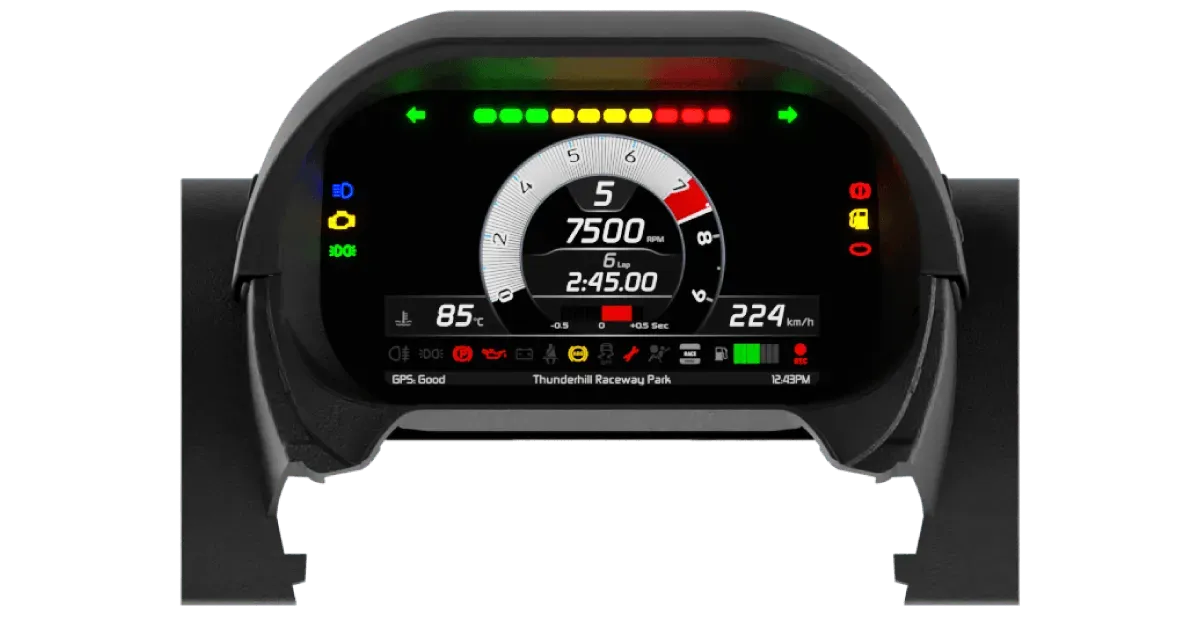

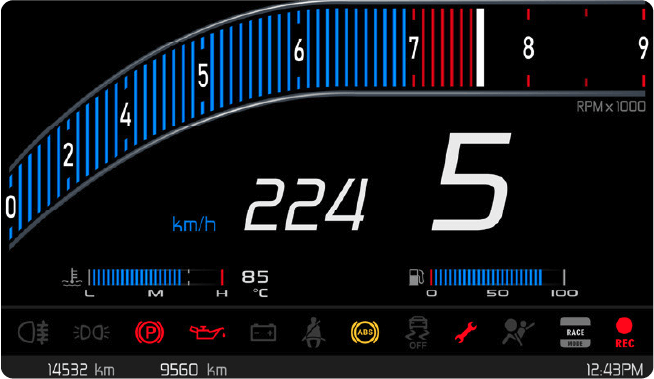

Forget the struggles of the configuration process as the MX-2E already features 2 custom display screens from Road use, with 6 predefined alarms and 14 digital switch inputs, and one dedicated screen for the track.
Screen 1
Screen 2
Screen 3

Everything Right Under Control

  • High contrast 6” TFT display 800×480 pixels
  • 17 integrated LEDs
  • 10 shift lights
  • 5 alarms
  • 2 turn indicators
  • 14 digital switch inputs
  • 4 integrated buttons in cluster
  • CAN bus ECU interface
  • Rear camera input
  • Seatbelt buzzer alarm
  • Wi-Fi connectivity
Everything Right Under Control

Lap Timing and Data Logging for the Track

MX-2E, indeed, samples data straight from the ECU and from the external GPS Module which is connected to a CAN bus for a more reliable and precise tracking. Once data has been gathered, download it via wi-fi, in order to analyse it and improve your performance, with the same, powerful AiM Software that so many professional racing teams use in all the tracks of the world.

Lap Timing and Data Logging for the Track

A Wide, Complete and User-friendly Menu

Wide, Complete and User-friendly Menu

Wi-Fi Connectivity and Analysis

Download all your data via WIFI at your track-day sessions or race week-ends.

No need to worry about cables that you may have forgotten. Using a secure 802.11 WiFi connection, all your data will be stored straight on your PC, ready to analyse you track/race data using our free software Race Studio 3 (RS3). You can view graphs, histograms, and tables will help you study and improve your vehicle and driver performance.

Data Recall

Data Recall

  • Data logging information from ECU, analog and mathematical channels.
  • GPS-based laptimes from AiM track database (3000+ tracks world-wide)
  • Summarized recall information directly from device
Data Recall

Optional Camera inputs for Rear Camera

Download all your data via WIFI at your track-day sessions or race week-ends.

No need to worry about cables that you may have forgotten. Using a secure 802.11 WiFi connection, all your data will be stored straight on your PC, ready to analyse you track/race data using our free software Race Studio 3 (RS3). You can view graphs, histograms, and tables will help you study and improve your vehicle and driver performance.

Two analog camera inputs are available. You can swap your display into a mirror camera using push-button command or event management settings.

  • Optical Format 1/4 inch Color CMOS
  • TV system NTSC
  • Pixel Array 648×488
  • Image area 3,63mm – 2,73mm
  • Frame rate NTSC: 60 filed/sec
  • Temperature -30°/+80°
rear camera
Camera Screen front
Camera Screen back
Lotus Exige
In The Box
Wide range of data sources

Analog Digital Inputs

MXL2 has eight analog inputs, recorded up to 1000 times per second each. You can connect and monitor all kinds of sensors, like:

Ratiometric potentiometers
Pressure sensors
Thermo-resistances
K-type thermocouple and many others, all your custom sensors included.

Features six digital inputs

Four speed signals – It can receive the speed signal from the ECU, from the GPS and from the four wheel sensors.

  • RPM – can receive the RPM signal from the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
  • Lap signal – Lap and split times are sampled by the GPS (included in the kit) or via optical receiver/transmitter.

GPS Module

The GPS08 Module (included in the kit) connected via CAN makes lap time calculation and track position analysis very easy. Each Aim memory stores more than 200 world tracks start/finish line coordinates. As soon the dash/logger is switched on, the GPS08 Module will locate its position, identify track-line coordinates and start immediately sampling lap and split time.

If the track is not included in the database, it is always possible to add the start/finish line coordinates to the Aim MXL2 via PC before going to the track, using the Race Studio 3 – Track Manager software.

Second CAN

An innovative feature is the CAN 2 line, managing data coming from your additional modules (i.e. ABS, traction control, infrared temperature sensors and more) This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.

Internal Accelerometer and Gyro

The internal three-axial accelerometer and the gyroscope provide a very powerful array of information. These force and motion sensors enable you to quantify the dynamic characteristics of your vehicle. Measuring acceleration forces and gyro rates can assist in determining how to improve your vehicle performances.

Math Channels

You immediately get Math Channels values. The dash logger can be configured to display those values (i.e. brake bias, calculated gear) in real time.

Technical Specs

Technical specifications:



Downloads

Get a Quote

Get all the data to help you improve your vehicle and driver/rider performance. We have made it easier for you, to get the right data management system by using our ‘get a quote’ form, then selecting your vehicle parameters and the data you want to collect.

Our team will look at the information you have sent and send you a list and quote for all the products you need to build your data logging system, along with any other relevant options.

GET QUOTE

Get a Quote

Get all the data to help you improve your vehicle and driver/rider performance. We have made it easier for you, to get the right data management system by using our ‘get a quote’ form, then selecting your vehicle parameters and the data you want to collect.

Our team will look at the information you have sent and send you a list and quote for all the products you need to build your data logging system, along with any other relevant options.

GET QUOTE
