Aim MX Strada Kit

Aim MX Strada Kit

Turn any MX Strada into a full-working logger



Receiving and reading data while you are driving is not enough anymore? – Then it’s time to step up your game,
…with the brand new Aim Strada Kit!

Comprising of the Aim Strada Logger, the Data Hub and the GPS 08 Module, the kit will turn any MX Strada into a full-working data logger able to collect data ready to be analysed on Race Studio 3 helping you improve to your driver performance and identifying possible improvements in vehicle setup.

Reliable and easy to install, the Strada Kit is just what you need to make the difference between an above average fast driver into a race winner!

Turn any MX Strada into a full-working logger
Strada Logger is a small SD Card holder that can be connected via CAN bus to these loggers:
Strada Logger is a small SD Card holder that can be connected via CAN bus to these loggers
In The Box
  • Strada Logger,
  • Four ways Data Hub,
  • GPS08 Module.

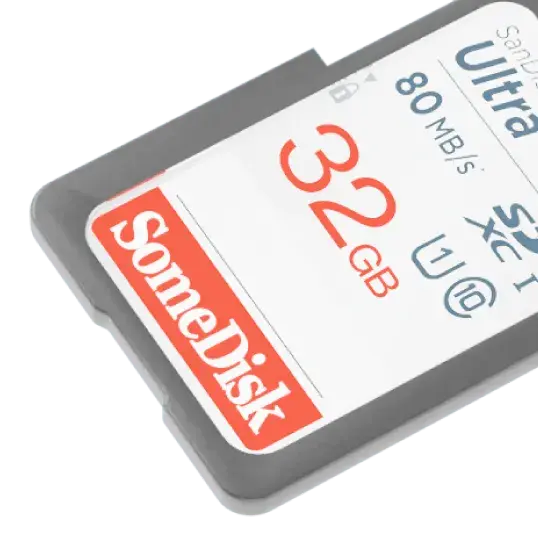

  • 4 GB Memory Card
MXS Strada Kit Technical Specs

MX Strada Kit

Max power consumption: 50 mA
Cable length: 40 cm
SD Card: It supports up to 32 GB
Dimensions: 55.5×78.3×18 mm
Weight: 103 g
Waterproof: IP65

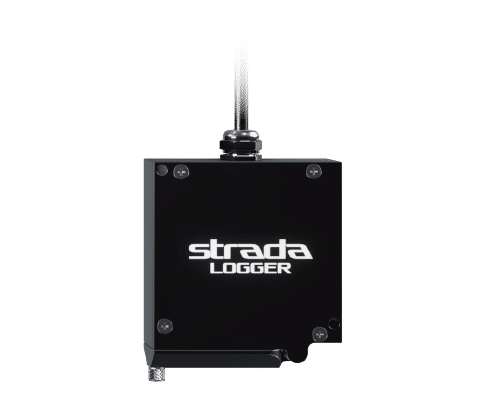

Strada Logger

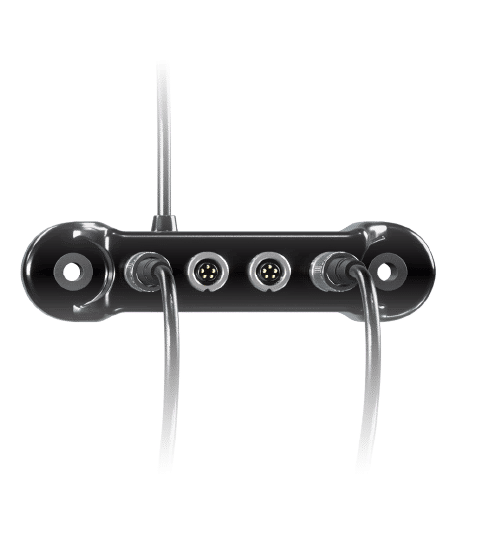

FOUR WAYS DATA HUB

Dimensions: 123x30x23.5 mm
CAN cable length: 40/150 cm
Weight: 97 g
Waterproof: IP65

Four ways Data Hub tech

GPS08 MODULE

Dimensions: 64.8×53.2×19.7 mm
Weight: 60.5 g

GPS08 Module

MXS Strada Downloads

Strada Logger Application note
