Aim MXm

A wide range of data sources

MXm samples data coming from your ECU, the internal GPS, accelerometer and gyro, analog/digital inputs and predefined math channels.

Integrated Shift Lights and Alarms

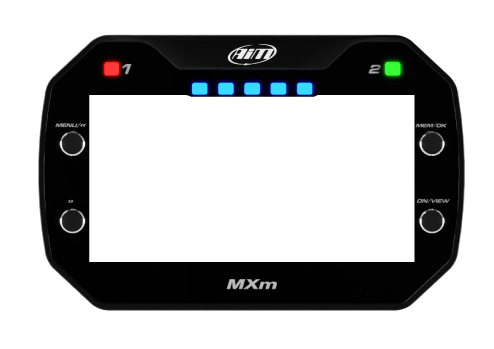

The Aim MXm features a 5 LED shift light array. Choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LED’s which you can choose the conditions which turn them on/off, their colour, select a solid alarm – or flashing one – and the flashing frequency.

MXm Integrated shift lights

Sharp Liquid Crystal

MXm features a high contrast LCD display, with an outstanding black to white ratio. The wide 268 x 128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the back-light at optimum brightness levels.

Aim MXm Sharp Liquid Crystal Display

Aim MXm features a wide 268x128 pixel graphical display. The screen can be backlit in one of the seven available colours and the incorporated light sensor makes brightness and contrast ideal in all light conditions.

MXm seven available colors
Aim MXm Data recall

Data Recall

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.

Choose Your Own Data Layout

With the Aim MXm Dash, you can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.

Wi-Fi Connectivity

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection so no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.

Aim MXm Wifi

Aim MXm Dash Connection Examples

MXm Connection Examples

Expand the system according to your needs

TC Hub
It adds 4 K thermocouples.

LCU-One Lambda Controller

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.

Memory Module
Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers.

SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.

Race Studio 3

Race Studio 3 is the heart of your MXG managing all your racing activities.

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Aim MXG Race Studio 3
MXG RS3 Analysis

Analysis

With Race Studio 3 you can also analyse all data recorded by MXG and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

A wide range of data sources

MXG is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.


In The Box
  • MXm,
  • GPS Module with cable,
  • USB cable,
  • 37 pins standard harness,
  • Race Studio 3 software.
Technical Specs

Display resolution : 268 x 128 pixels
Backlight : 7 configurable RGB colors
Ambient light sensor : Yes
Shift lights : 5 configurable RGB LEDs
Alarm LEDs : 2 configurable RGB LEDs
CAN connections : 2
ECU connections : CAN, RS232 or K-Line
ECU compatibility : +1,000 industry leading ECUs
GPS : Integrated
External modules : Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD
Analog inputs : 4 fully configurable, max 1,000 Hz each
Digital inputs : 2 speed inputs, coil RPM input
Digital outputs : 2 high-side
Inertial platform : Internal 3 axis ±5G accelerometer + 3 axis gyro+ 3 axis magnetometer
Wi-Fi connection : Yes
Internal memory : 4 GB
Body : Glass fiber reinforced Nylon
Pushbuttons : Metallic

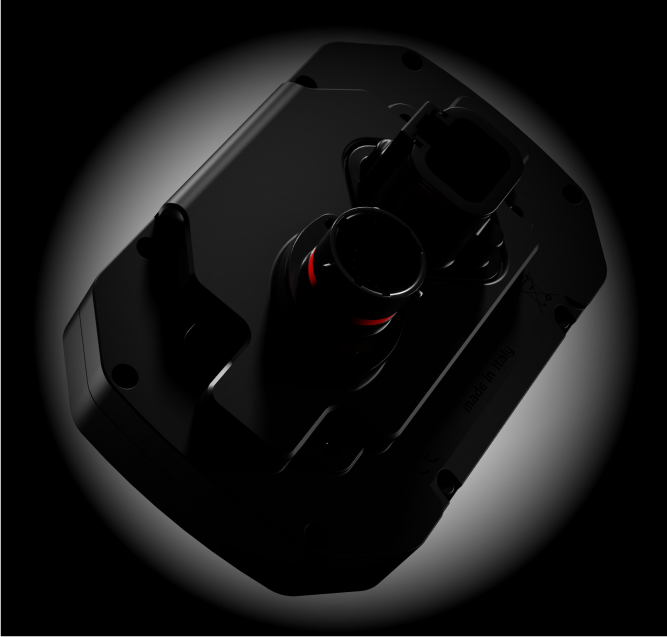

Connectors : 37 pins Motorsport connector + 4 pins power connector
Dimensions : 137×88.4×31.9 mm
Weight : 330 g
Waterproof : IP65
