 Aim MXsl

Aim MXsl

The AIM MXsl Dash Display an evolution of the hugely successful MXS Strada Dash Display,which is one of the most widely used racing dash displays used on tracks and streets all over the world. The MXsl has a 5″ compact colour display which configurable to show all the info coming from your Engine Control Unit (ECU), analogue / digital inputs, pre-defined math channels and the optional GPS Module.

The main addition to the Aim MXsl is the inbuilt power module. Offering 10 high power outputs that can be used to directly power components such as motors, lights, fans, pumps and other electrical devices without the need to use conventional relays and fuses. The unit can also detect short circuits, overcurrents and open circuits while recording them for later diagnosis. The error information can also be displayed on the dash if required. Each power output can also be configured to be activated by a combination math channels, analogue/digital inputs, pushbuttons or ECU fields.

Besides the new power module capabilities, the Aim MXsl dash retains all of the well-proven data logging and dash display functions as found in the MXS Strada as detailed below.

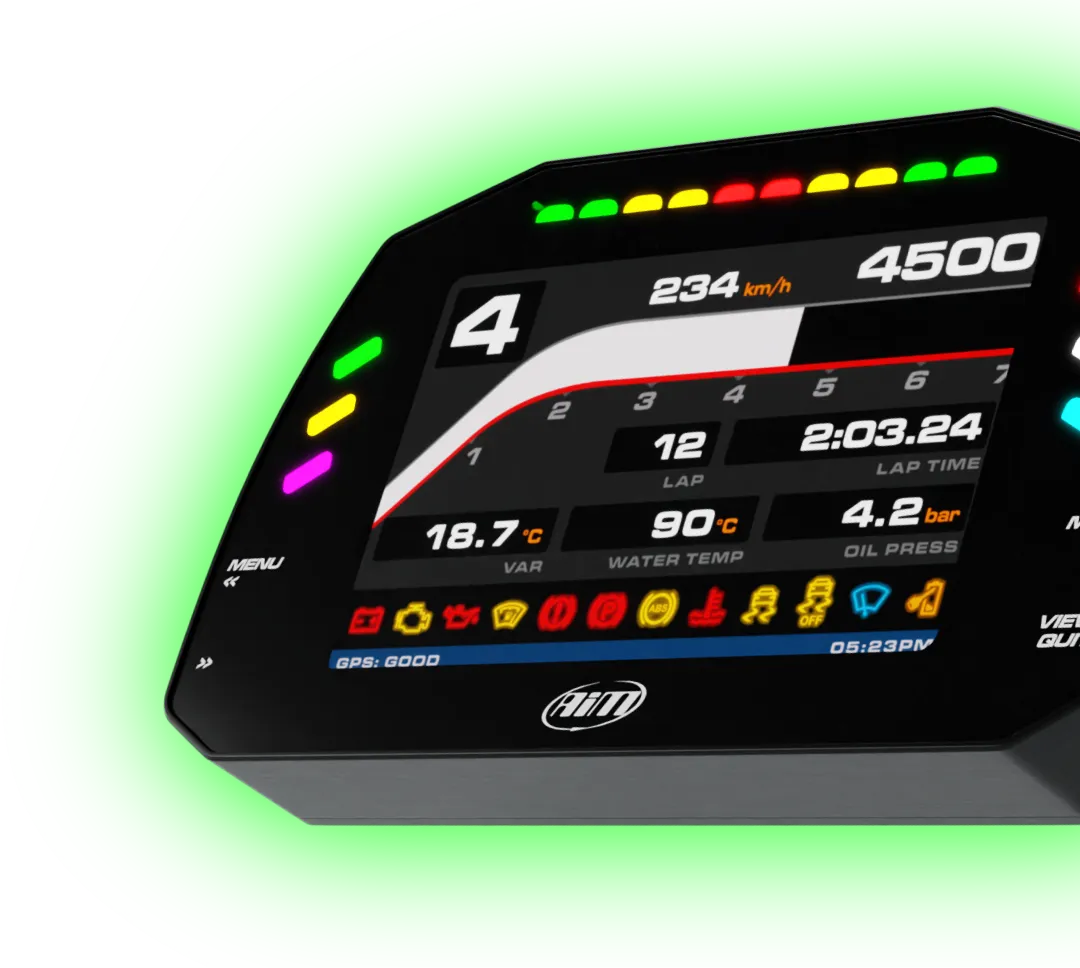

High contrast TFT display

The Aim MXsl has a high contrast TFT display which features an optimised back lighting system by using an ambient light sensor. This helps to maintain the optimum brightness for reading the display in all light levels. As with other AIM dash displays, the data which is shown on the screen can be configured to show the precise information that the driver needs the most. Multiple pages are also available to display further data and can be switched using the buttons on the dash or by wiring to a standalone button. Data which can be displayed includes graphical dials for speed and RPM as well as vital engine parameters such as oil pressure/temperature, water temperature, battery voltage and more.

At the top of the unit, there is a row of fully configurable shift lights which can be set according to the users specific requirements including individual RPM threshold for each gear and the colour of LEDs

Aim MXsl Kit Car Display Display

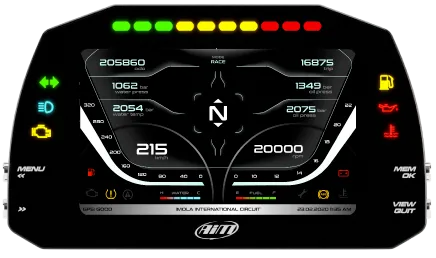

Monitor data in pre-configured pages

the Aim MXsl shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, lap times and much more… you can choose the custom pages you wish – including up to four additional fields – among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between the pages is easy using the push buttons.

Flexible shift lights and alarms: The ten multi-coloured RGB shift lights can be customised to your liking, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analogue or digital inputs, ECU values, expansion values, math channels or – optionally – GPS information. You choose conditions and colours: select a solid alarm or flashing one – and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities.

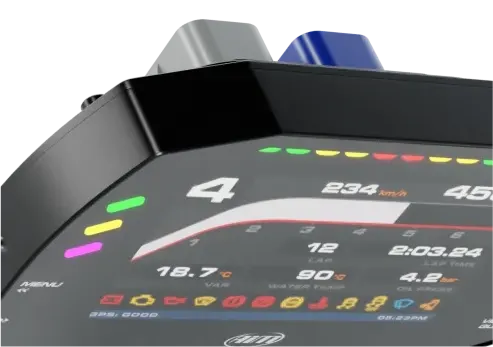

CAN output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

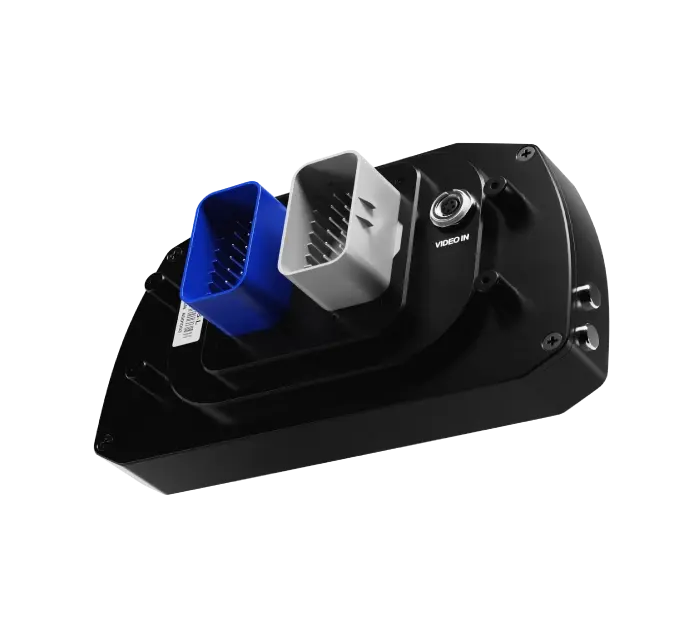

Digital output: MXsL features a 1 amp digital output configurable in order to be activated/deactivated depending on the value of the analogue/digital inputs or on impulses coming from the ECU. This allows you to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps etc when a certain event happens.

A modular system:

Using the built-in CAN bus you can add optional expansion modules (listed below) to visualise additional info:

  • GPS08 Module – Thanks to GPS08 Module and Race Studio 3 software, you can immediately get lap times and all data needed for engine tuning as well as for improving driving technique.
  • Channel Expansion – Add up to 4 0-5 Volt analogue channels.
  • TC Hub – Add up to 4 K thermocouples.
  • LCU-One Lambda Controller – Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.
  • SmartyCam HD / GP HD – Compact and robust HD camera / HD Bullet-cam – both designed for motorsports.
In The Box

Aim MXsl

Technical Specs

Display :5” TFT
Resolution :800×480 pixel
Contrast :600:1
Brightness :700cd/m2 – 1,100 Lumen
Ambient light sensor :Yes
Alarm LEDs :6 RGB freely configurable
Shift Lights :10 integrated freely configurable RGB LEDs
CAN connections :3
ECU connections :CAN, RS232 or K-Line
ECU compatibility :+ 1,000 industry leading ECUs
Expansion CAN connection :GPS, Channel Expansions, Thermocouple Expansions, Lambda Controllers, SmartyCam
Inputs :8 fully configurable: analog, digital, pull up/down on/off – Max 1,000 Hz each
Speed input :1
RPM input :1
Digital outputs Low Side :2 (1 Amp max)
Digital outputs High Side :

  • 10 protected (overcurrent, short circuit to gnd and to battery, overtemperature,
    open load detection, current fuse programmable)
  • Eight 5 A outputs, two 10 A outputs
  • Current sense
  • Output pwm capable (100 Hz to 400 Hz)

Body : Anodized Aluminum
Pushbuttons: Metallic

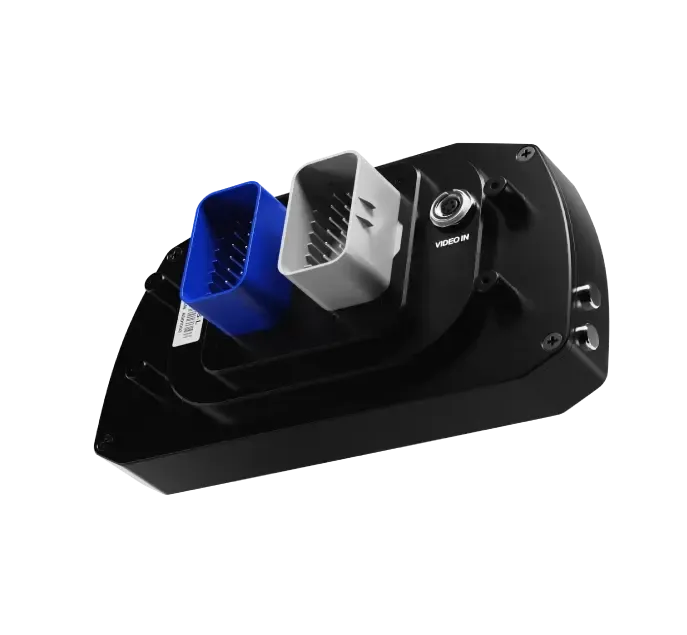

Connectors:2 AMP connectors
Dimensions : 169.4x97x23 mm
Weight: 480 g
Power consumption : 400 mA without power output lines active
Waterproof : IP65

MXsl Technical drawings

MXsl Technical drawings pinout
