CAN Keypads
Technical Information
Model
CAN keypads
Overview

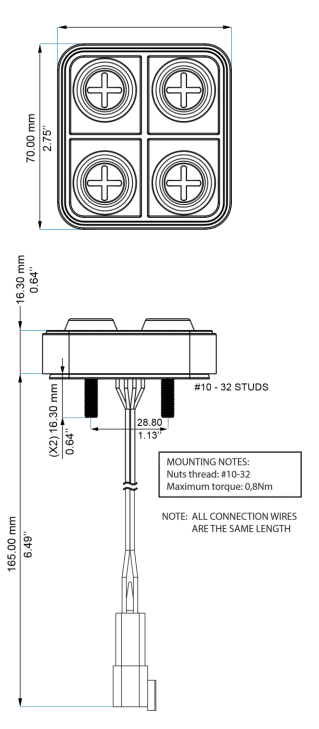

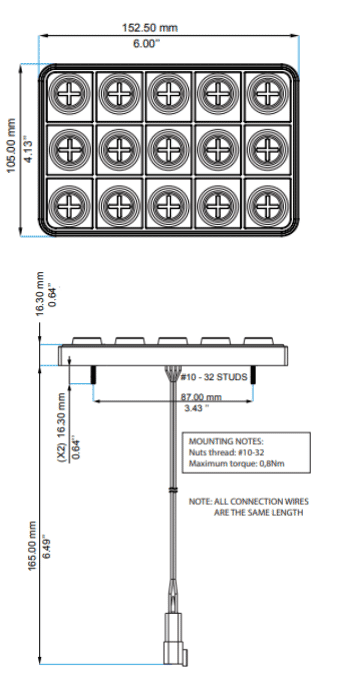

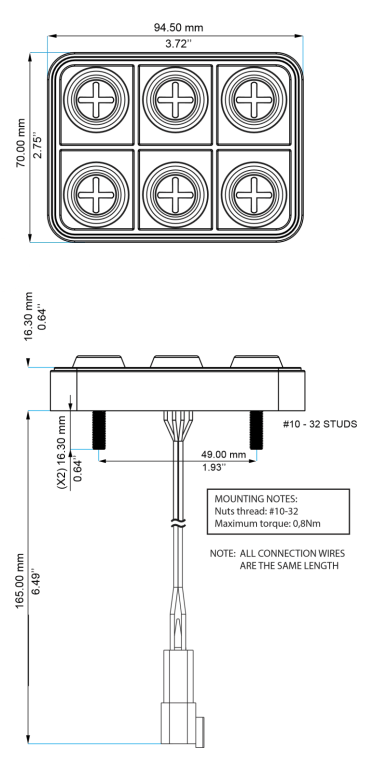

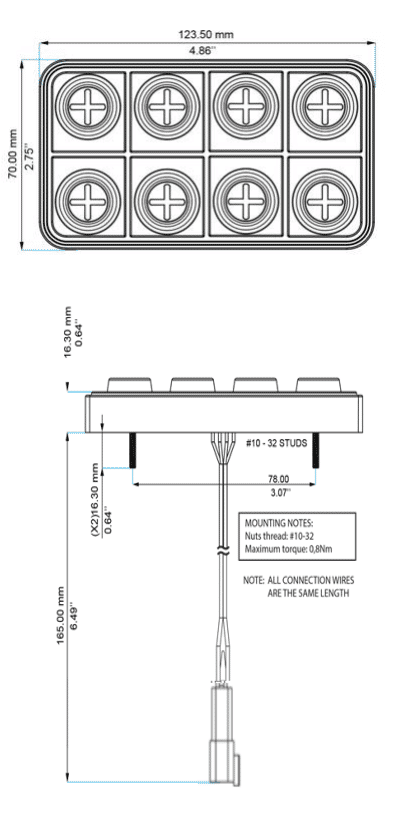

The remote button interface keypads will enable you to have your very own selected buttons at your fingertips. Available in 4, 6, 8,10,12 and 15 key keypads.
Key Features
- Configurable channels
- CAN bus compatible keypad
- LED-backlit icons
- Multicolour indicator rings
- LED status configurable
- Vertical or horizontal mount
In The Box
- Remote Button CAN Interface Pro Keypad
Technical
- Supply Voltage: 12-24Vdc Nominal (8-32VDC)
- Standby Current: <50 mA
- Communication BUS: CAN
- MTBF: 239870 hours (in accordance with MIL-HDBK-217 - operating environment Ground Mobile)
- Connector: Deutsch DT04-4p
- Switch Life: 3 million operations
- Mounting Studs: #10-32 Steel
- Keypad: Silicone rubber with polyurethane hardcoat
- PC Board: 1,6mm thick, Nema Grade FR-4, double clad with 1oz copper
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Thermal Shock: -40°C to +85°C According to table 2 of ISO16750-4
- UV Protection: UVB 400 hours
- Salt Spray: Per ASTMB117
- Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
- Ingress protection Rating: IP67/IP69K
