EPM08
EPM32
Model

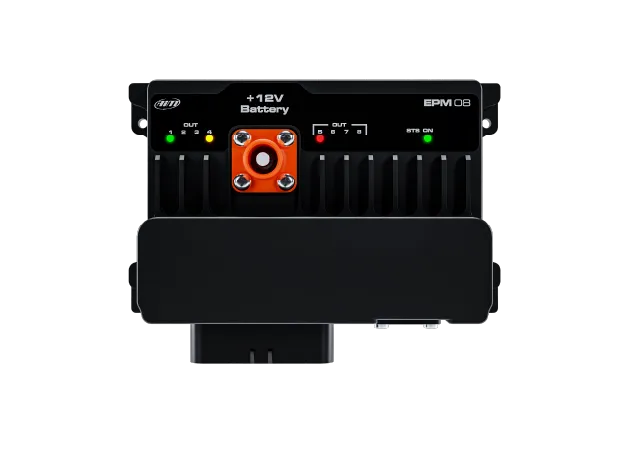

EPM08

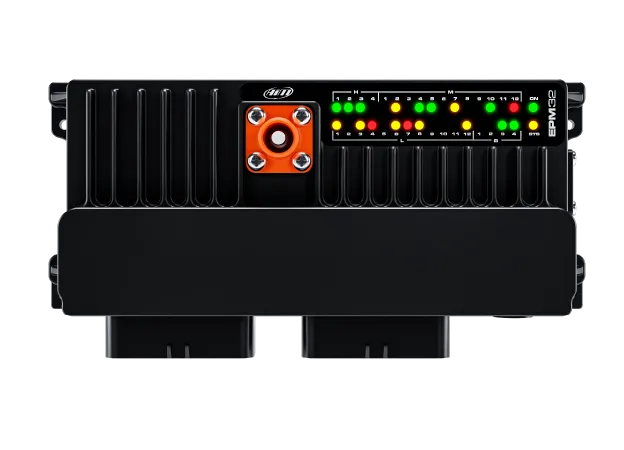

EPM32
Overview
The Expansion Power Module adds power outputs to your installation. They are available in two variants, the EPM08 with 8 power outputs, and the EPM32 with 32 power outputs.
Size & Weight
- Dimensions: 161 x 100.6 x 50.6mm
- Weight: 370g
- Dimensions: 234.4 x 95.1 x 49mm
- Weight: 740g
Waterproof
- IP 65
- IP 65
In The Box
- EPM08 Module
- EPM32 Module
Technical
- Connectors: 1 AMP connector + 1 Amphenol Surlok connector
- LEDs: 8 RGB LEDs + 1 EPM ON + 1 EPM STS (status)
- Inputs:
Analogue Inputs: 6 fully configurable analogue inputs (0-5V; 0-12V) recorded at max 500Hz each
Digital Inputs: Pull-up/pull-down
- Power Outputs:
1 with series diode rated up to 20A (high side)
1 rated up to 25A (high side)
6 rated up to 15A (high side)
Protected For: overvoltage, undervoltage, short circuit, overcurrent and overtemperature
All outputs have an internal freewheeling diode
Total Max Current: 100A
- Body: Anodised aluminium
- Connectors: 2 AMP connector + 1 Amphenol Surlok connector
- LEDs: 32 RGB LEDs + 1 EPM ON + 1 EPM STS (status)
- Inputs:
Up to 8 analogue inputs recorded at max 500Hz each (8 configurable as analogue or digital, 4 digital only)
Digital Inputs: Pull-up/pull-down
- Power Outputs:
1 with series diode + 3 rated up to 20A (high side)
12 rated up to 15A (high side)
12 rated up to 10A (high side)
4 rated up to 35A (high side/half bridge/low side/configurable)
Protected For: overvoltage, undervoltage, short circuit, overcurrent, overtemperature
Total Max Current: 120A
- Body: Anodised aluminium

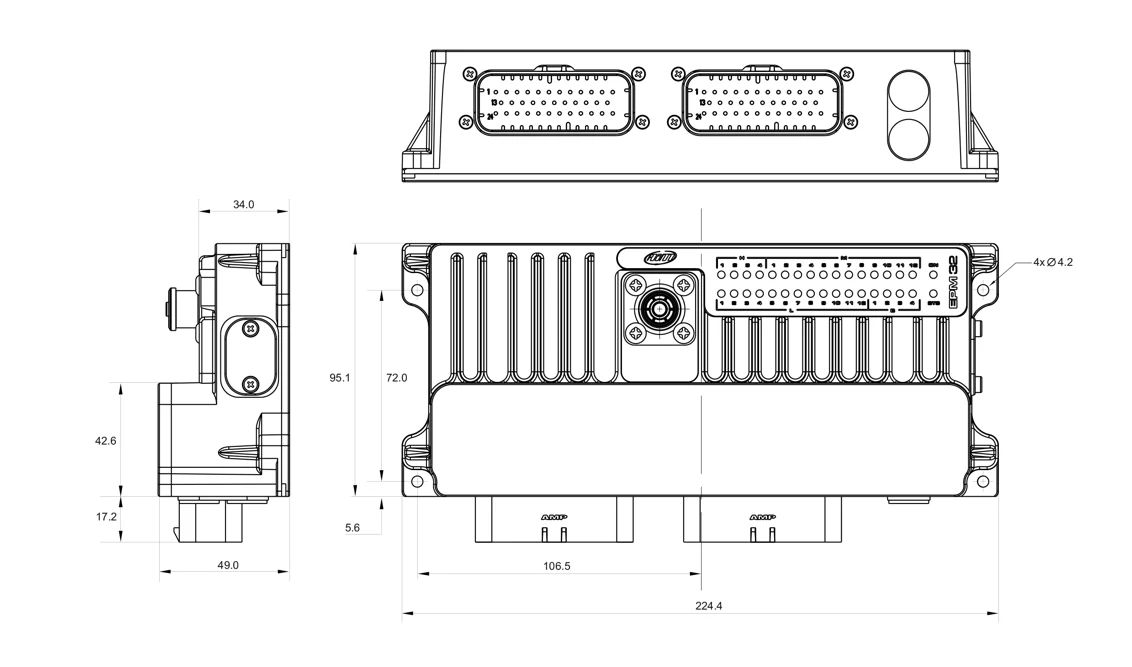

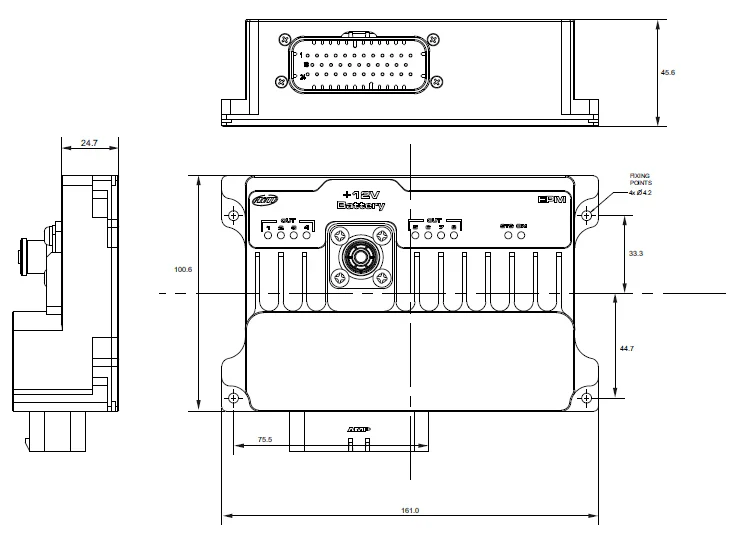

Diagram
×
![]()
