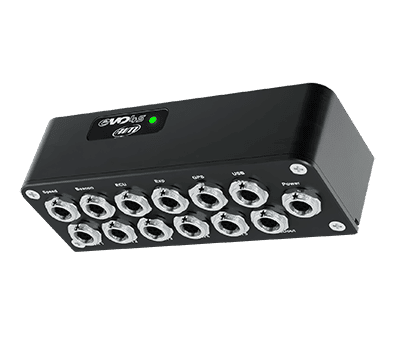

EVO 4S
Technical Information
Model
EVO 4s
Overview
The EVO4S is a powerful and flexible data logger, offering a wide range of sources for your data. A great tool for track days to help improve your performance.
Key Features
- Many options for ECU connection
- Built-in accelerometer & gyro sensor
- 5 fully configurable analogue channels
- Includes GPS Module
- CAN output
- 2-speed inputs
Size & Weight
- Dimensions: 130 x 35 x 46.6 mm
- Weight: 330g
Waterproof
- IP 65
In The Box
- EVO 4s Data Logger
- Harness of Your Choice
- Power Cable
- Download Cable
- RPM Harness
- GPS Module
- Mounting Bracket
- Aim Sticker
Technical
- ECU connection: CAN, RS232 or K-Line to 2,000+ industry leading ECUs
- External modules: GPS09 Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
- Analogue inputs: 5 fully configurable, max 1,000 Hz each
- Digital inputs: 2 Speed inputs, lap signal, coil RPM input
- Inertial platform: Internal 3 axis ±5G accelerometer + 3 axis gyro
- Digital outputs: 1 (1 Amp max)
- Internal memory: 4 GB
- Connectors: 13 Binder connectors
- Body: Anodised Aluminum
- LEDs: 1 system status

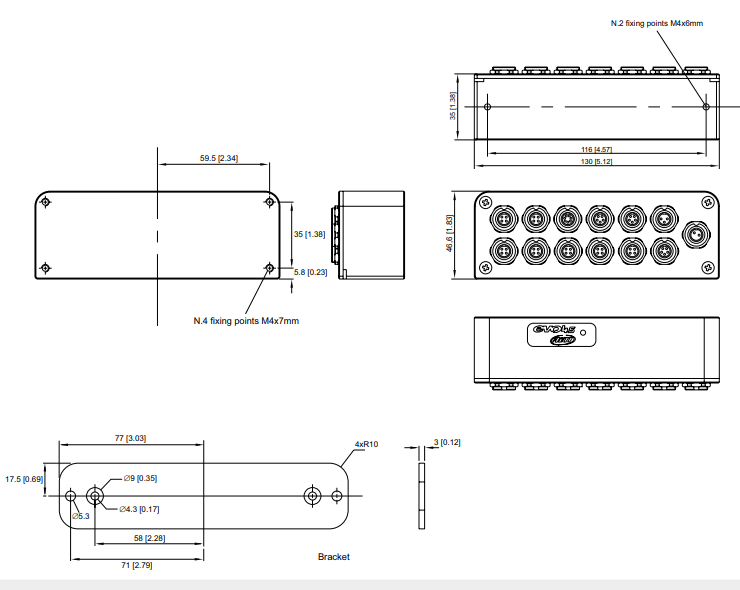

Diagram
