EVO5
Technical Information

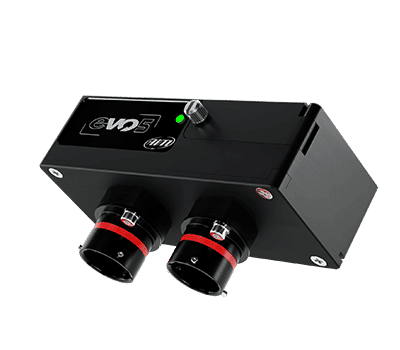

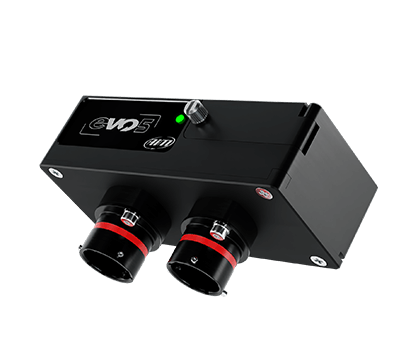

The Aim EVO5 Car Racing Data Logger features two multi-channel Motorsport connectors. It connects to the vehicle's ECU via CAN, RS232 or K-Line. The GPS09 Module is also included with this kit. With a range of cable lengths available to suit your requirements.

• Two multi-channel connectors
• ECU connection to over 1000+ ECUs
• GPS Module included
• CAN output

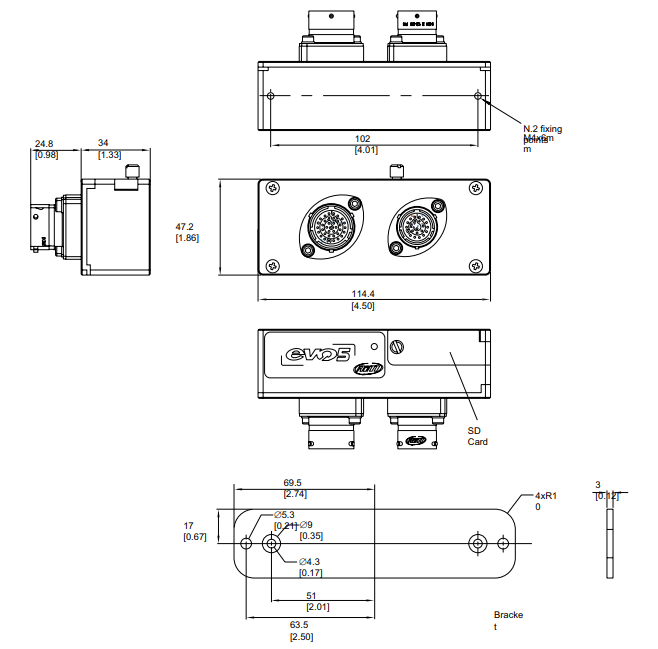

• Dimensions: 114.4 x 47.2 x 58.8 mm
• Weight: 300g

• IP 65

• EVO 5 Data Logger
• 37 pins Harness
• GPS Module
• Aim Sticker

• ECU connection: CAN, RS232 or K-Line to 2,000+ industry leading ECUs
• External modules: GPS09 Module, CHannel Expansion, TC Hub, Lambda Controller, SmartyCam HD
• Analogue inputs: 8 fully configurable: 0.5v, 0-12v, K thermocouples, Max freq 1KHz each
• Digital inputs: Coil RPM and 4 speeds inputs
• Inertial platform: Internal 3 axis ±5G accelerometer + 3 axis gyro
• Digital outputs: 2, up to 1 Amp each
• Second CAN: Yes
• WiFi connection: 2, up to 1 Amp each
• Internal memory: 4 GB
• SD card: Internal: up to 128 Gb
• Connectors: 2 Motorsport connectors
• Body: Anodised Aluminum
• LEDs: 1 system status
