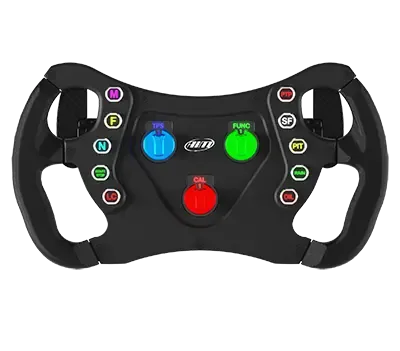

GT32
Technical Information
Model
GT32
Overview
GT32 transmits in a freely configurable CAN connection the status of the 10 pushbuttons (while 2 of them feature free contacts connections), 3 rotary switches and paddles. Requires a PDM08 or PDM32
Key Features
- Completely configurable pushbuttons
- Custom backlighting
Size & Weight
- Dimensions: 320 x 178 x 44.2mm
- Weight: 2,600g
Waterproof
- IP 65
In The Box
- Car side Harness
- 2x Shift Paddles
- Aim sticker
Technical
- Diameter: 320mm
- CAN Connection: 1
- Body: Anodised aluminium
- Pushbuttons: 10 pushbuttons (all with RGB backlights)
- Rotary switches: 3 rotary switches (all with RGB backlights)
- Connectors: 1 Deutsch Autosport 22 pins male connector
- Power consumption: 500 mA

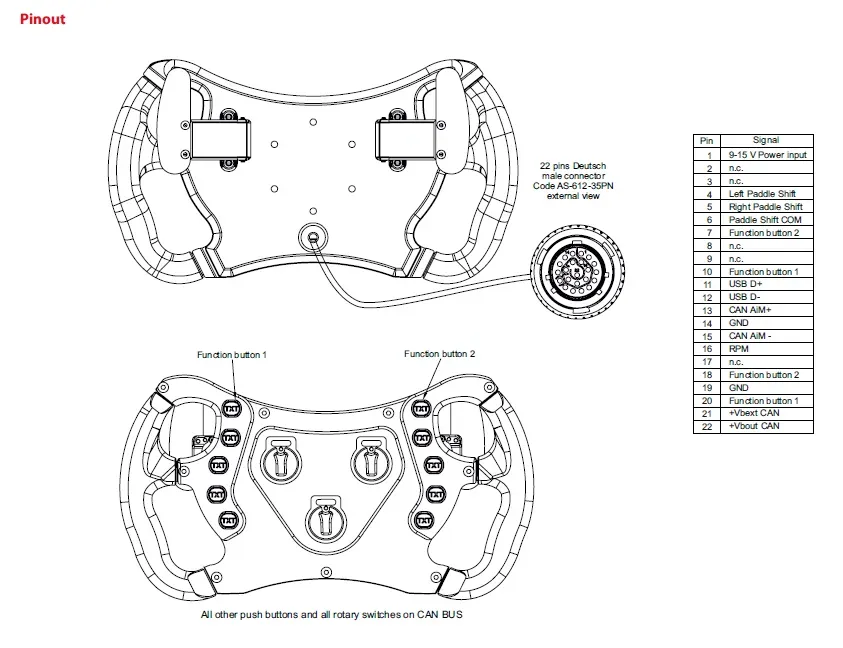

Diagram
