Technical Information

K Series Keypads
Technical Information


Model

CAN buttons
CAN keypads

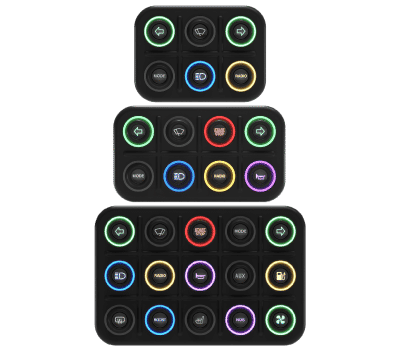

Overview

The K6, K8 and K15 are compact keypads based on CAN-Bus protocol. The devices are water and dust resistant and can be installed both inside and outside the cockpit. They are fully customisable and proposed with a wide range of interchangeble inserts. The keypads will enable you to have your very own selected buttons at your fingertips. Available in 6, 8 and 15 key keypads.


Key Features

  • Reconfigurable buttons
  • LED backlit rings and icons
  • 2 blinking mode
  • CAN-Bus system compatible
  • Status restore option
  • Programmable RGB LEDs
  • Momentary, toggle and multi-status
  • Wide range of inserts
  • Vertical or horizontal mount

In The Box

  • Your choice of Aim CAN Expansion Keypad
  • Your choice length for the Male 5 Pin CAN Cable
  • USB Cable For Aim EXP CAN Keypad

Technical

  • K6 Push Buttons: 6 programmable keys (momentary, toggle, multistatus)
  • K8 Push Buttons: 8 programmable keys (momentary, toggle, multistatus)
  • K15 Push Buttons: 15 programmable keys (momentary, toggle, multistatus)
  • Backlight buttons: RGB with dimming option
  • Connection: CAN Aim Binder 5 pins
  • Material: Rubber silicon and PA6 GS30%
  • K6 Dimensions: 97.4 x 71.4 x 24 mm
  • K8 Dimensions: 127.4 x 71.4 x 24 mm
  • K6 Dimensions: 157.4 x 71.4 x 24 mm
  • K6 Weight: 120 g
  • K8 Weight: 150 g
  • K15 Weight: 250 g
  • Waterproof: IP67

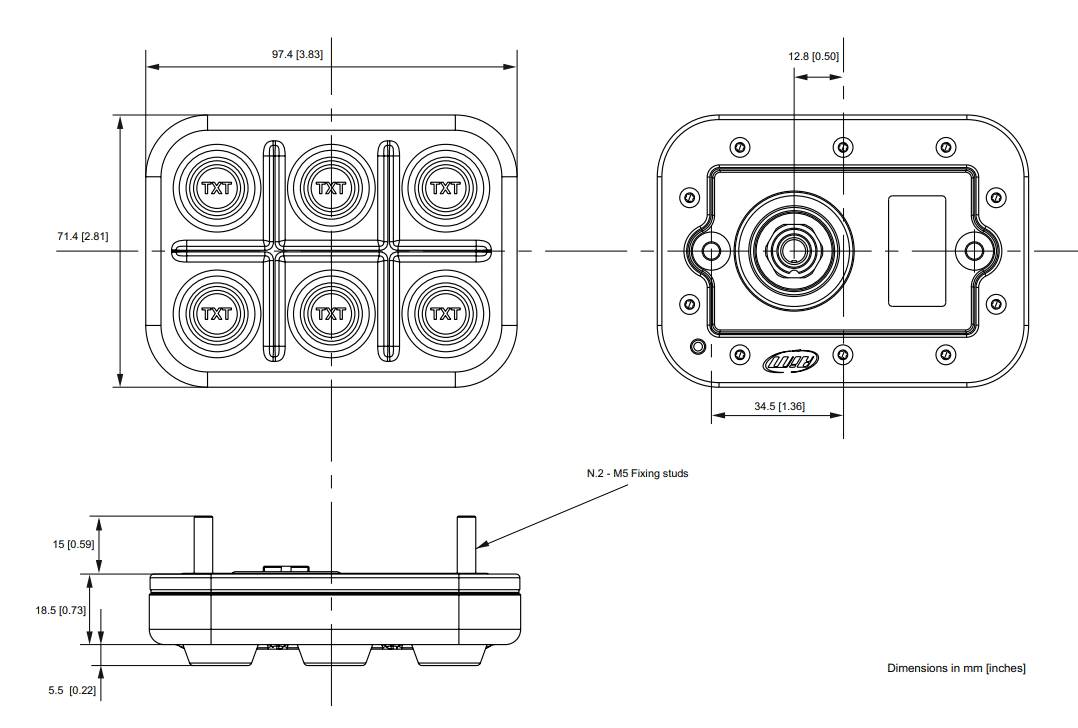

6 Button Diagram
6 button diagram

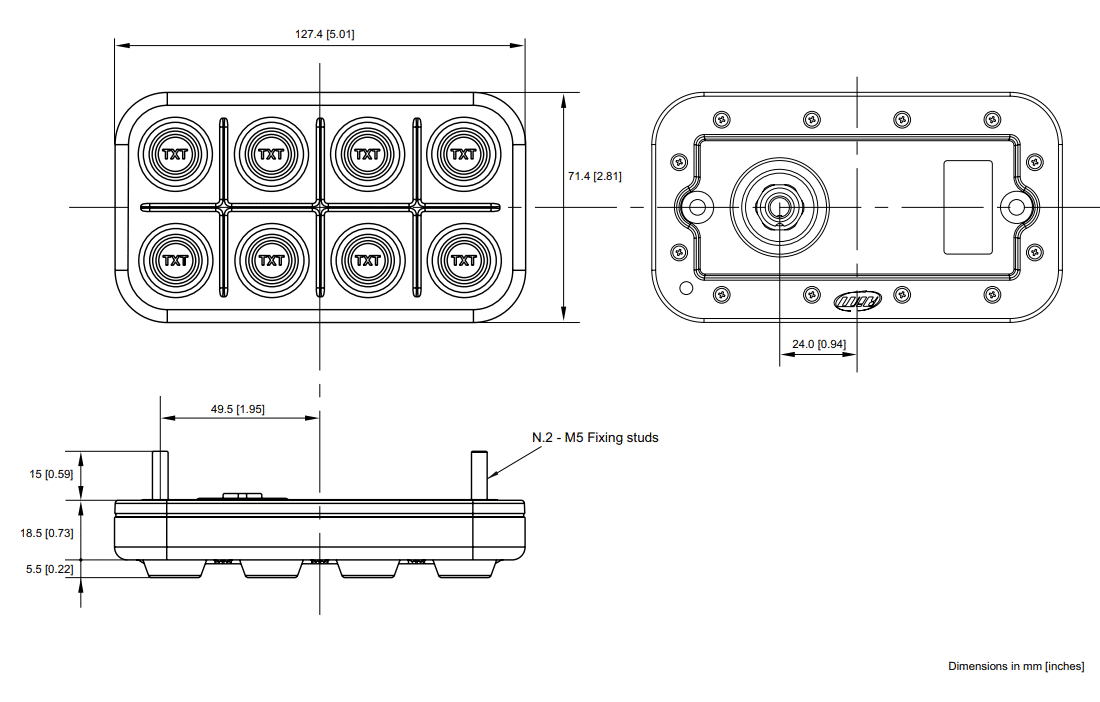

8 Button Diagram
8 button diagram

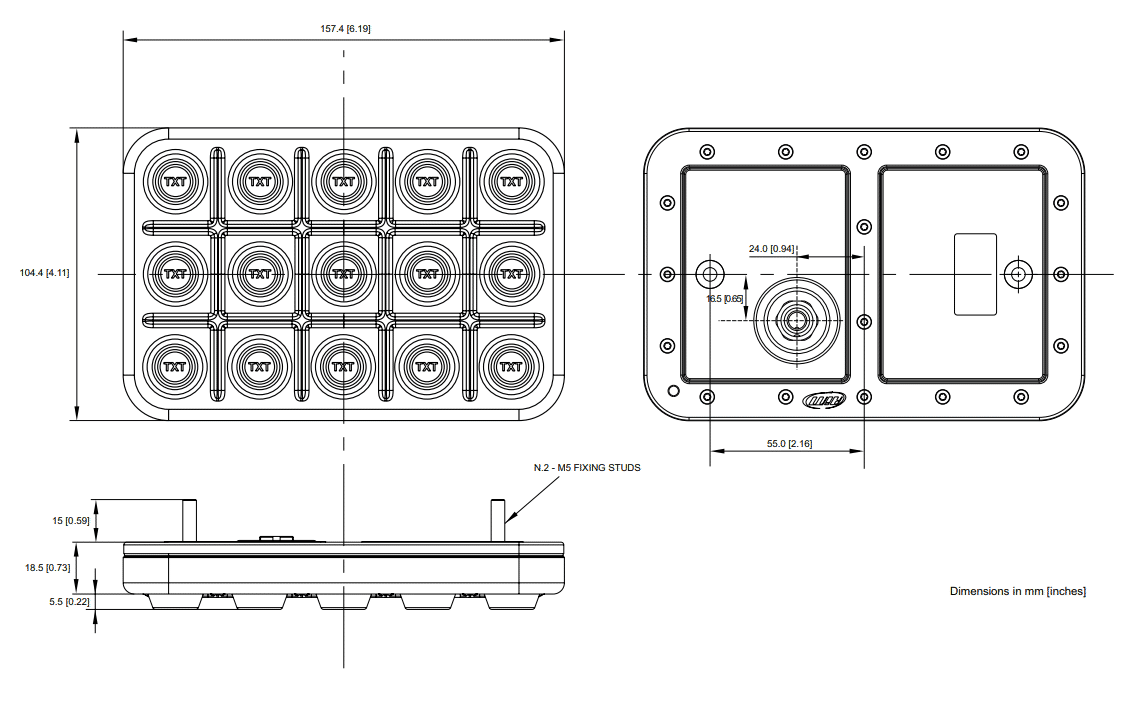

15 button Diagram
15 button diagram
