LCU-One Lambda Controller
Technical Information
Model
LCU-One Lambda controller
Overview
The Aim LCU-ONE Lambda Controller monitors air/fuel ratios. Connected to a dash display (MXL2, MXG, MXP, MXS, Solo2 DL) or logger (EVO4S, EVO5), The LCU-One will perfectly tune the carburetion of your engine and maintain it at peak performance.
Size & Weight
- Dimensions: 80 x 37 x 15mm
Waterproof
- IP 67

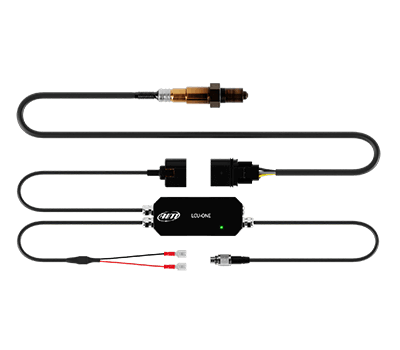

In The Box
- LCU-One Lambda Controller
- Bosch LSU 4.9 wideband probe
- Weld-on bung
Technical
- CAN Harness with 5 pins Binder 712 male connector
- Lambda harness with 6 pins Bosch connector
- Power harness )max length 100cm - free cables

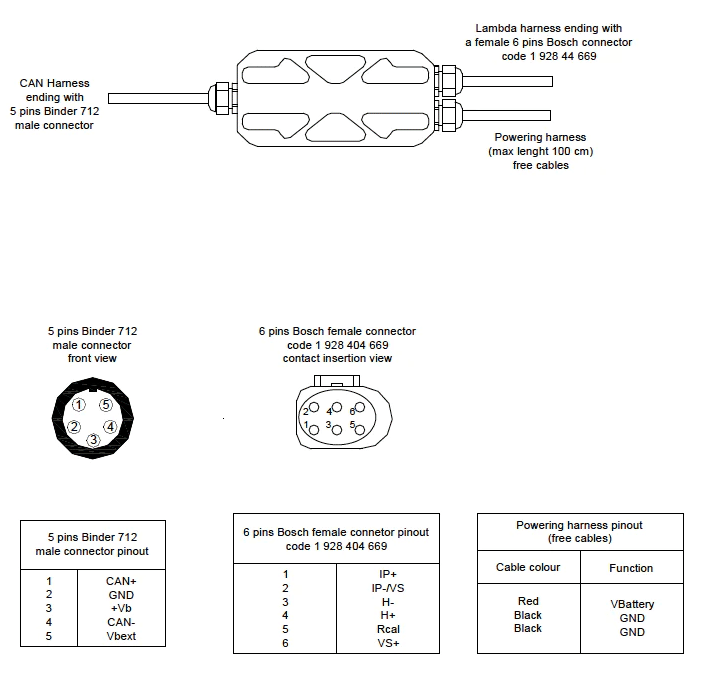

Pinout
