MX UTV
The Dash Logger Dedicated to The UTV World
Designed to
Handle Anything

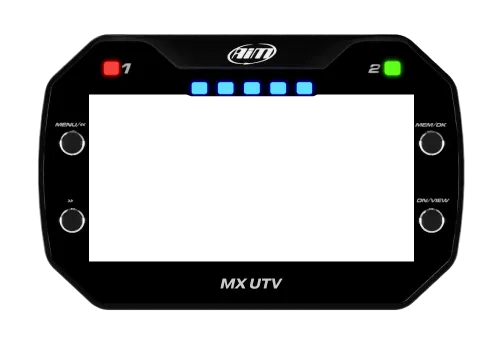

The MX UTV is a specialised dash logger designed for the off-road racing community, offering a robust suite of features to enhance vehicle performance monitoring and data acquisition. This unit is tailored to provide extensive connectivity and functionality in demanding environments.
4GB
Memory
IP65 Rated
An all-weather capable GPS device, designed to function in the wettest or driest conditions.
No Fuss,
No Worry
Constantly Logging Your Data
The MX UTV offers comprehensive data display and logging capabilities directly from your vehicle.
Indestructible Chassis
Made from glass fibre reinforced nylon
Transmission Belt
Temperature Monitoring

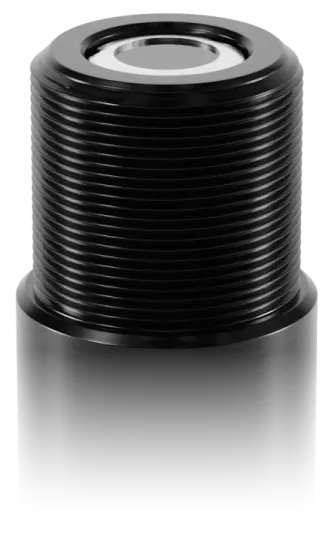

An included infrared sensor monitors the transmission belt temperature, providing alerts if the temperature approaches critical levels.
Choose What
Works For You
Flexible Alarms
Customise your RGB alarm LEDs, choosing colour and conditions to match your preferences. Set alarms with a variety of flashing options and prioritise them as you see fit.
Back light
Choose out of seven colours.
Pre-Configured
Pages

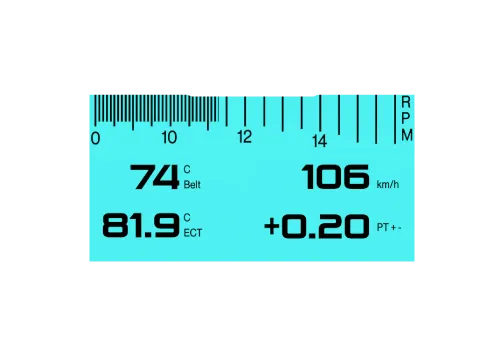

Toggle through multiple data display layouts and choose how you like to see your data.
Data Recall
At the end of your test, quickly review all the key information on your display.
ECU Selection
The MX UTV allows you to select your vehicle brand and type directly from the dash menu, in order to get the following data from the different ECUs:
RZR
Channels
- Speed
- RPM
- Gear
- ECT
- TPS
- Brake SW
- Fuel rate
RZR Turbo
Channels
- Speed
- RPM
- Gear
- ECT
- TPS
- Brake SW
- Fuel rate
- Boost Pressure
- Charge Air temp
Turbo
Channels
- Speed
- RPM
- Gear
- ECT
- TPS
- Brake SW
- Instant fuel consumed
- Boost pressure
- Intake Air Temp
T
Channels
- Speed
- RPM
- Gear
- ECT
- TPS
- Brake SW
- Instant fuel flow
YXZ 2017
Channels
- Speed
- RPM
- Gear
- ECT
- TPS
- Brake SW
YXT 2016
Channels
- Speed
- RPM
- Gear
- ECT
YXT 2016
Channels
- Speed
- RPM
- Gear
- ECT
- TPS
- Brake SW

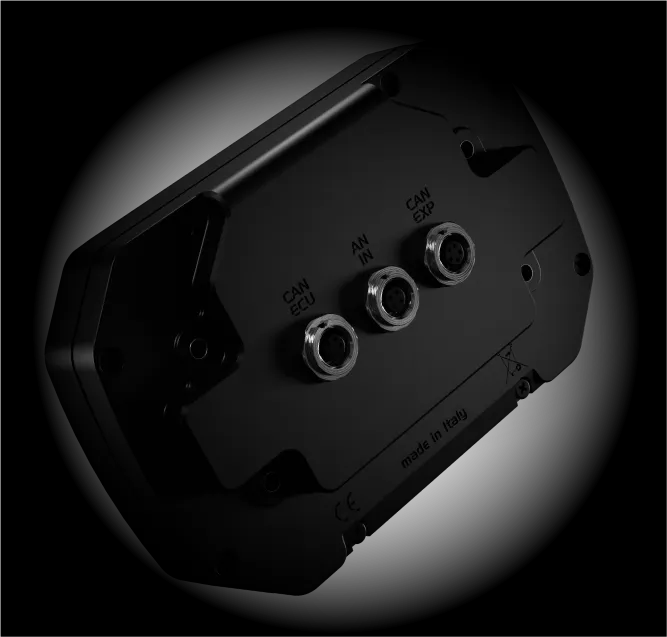

Connections & Expansions
CAN ECU:
Allows for direct communication with the vehicle's ECU and other compatible devices within the vehicle's network.
Analogue Input:
For receiving signals from the included belt temperature sensor.
CAN Expansion:
Upgrades your UTV with some of the best Aim expansions like Lambda Controller, Channel Expansion or even a SmartyCam 3 to record your ride.
Transfer Data Fast
Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.
Find out More
Now Sampling at 25Hz,
showing Delta times and more...
All you need to know about how your data works.
Find out More >
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.
