MXK10 Gen 4 Dash

The OEM Replacement Dash Logger
Designed for Kawasaki
Plug & Play



Designed for Kawasaki
Ninja ZX-10R 2011-2015
The MXK10 Gen 4 Dash Logger is a true “plug and play” solution, seamlessly integrating with no complex configurations. Just connect the device to the original Kawasaki Ninja ZX-10R (2011-2015) connector and bracket fixing points to enjoy the MXK10 loggers advanced features.
View Instruction Video
Unlimited Power
The MXK10 Gen 4 is engineered to collect and display data sourced from your ECU, internal accelerometer, gyro, GPS09 Module (included in the kit), analogue/digital inputs and pre-defined math channels. Performance and data collection capabilities can also be expanded by incorporating additional expansion modules.
No Fuss,
No Worry
Constantly Logging Your Data
The MXK10 Gen 4 dash offers a comprehensive data display and logging capabilities directly from your Kawasaki Ninja ZX-10R.
Whatever Works For You

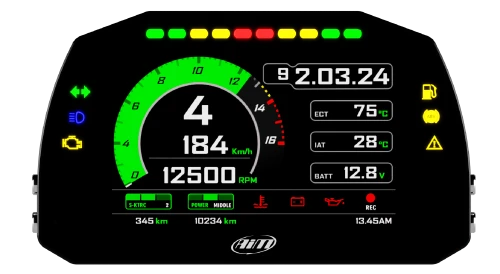

2 Display Styles
The MXK10 dash is equipped with a variety of layout options and two themes with light and dark colour modes to accommodate any scenario.
Analogue
v


Digital
v


Integrated Shift Light Array
Tailor your shift light sequences with an array of RGB patterns, even assigning different colours for each gear shift.
Delta Times
Delta Times provides instant feedback on your performance, showing how your current timing compares to your best.
User-Friendly Menu
It offers a comprehensive menu system that enables easy adjustment of all motorcycle parameters to suit your riding style or adapt to road vs race scenarios.
Racing Pedigree
Fully compatible with the Kawasaki Racing Kit, negating the need for any extra wiring, as all necessary connections are included in the kit.

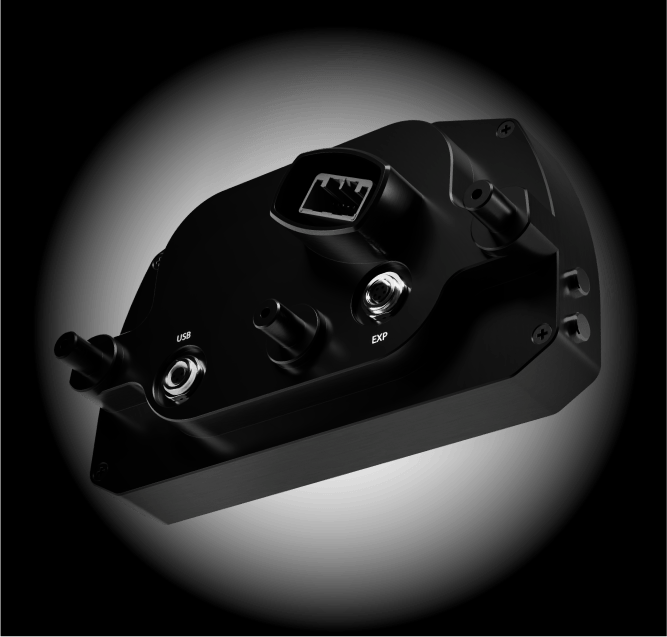

Connections & Expansions
EXP Connection:
Upgrade your bike with some of the best Aim expansions like GPS09, Lambda Controller, Channel Expansion or even a SmartyCam 3 to record and log your ride.
USB Connection:
Allows you to download data and configure your MXK10 Dash.

Transfer Data Fast
Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.
Learn More >How To Install The MXK10 Dash Logger
The MXK10 Gen 4 dash logger is a plug & play device for Kawasaki Ninja ZX-10R motorbikes, making installation extremely straight-forward - simply fit the device into the OEM bracket and connect to the bikes existing connectors. For a more in-depth tutorial, take a look at our MXK10 Kawasaki Ninja ZX-10R installation video.
View Video
Now Sampling at 25Hz,
showing Delta times and more...
All you need to know about how your data works.
Find out More
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.



Expand
Your System
The MXK10 Gen 4 dash logger can also manage a range of CAN expansion modules, allowing you to acquire data from suspensions potentiometers, brake pressure sensors, lambda values and more, increasing the range and depth of data collection and analysis of your motorbikes performance.
-
MXK10 Gen 4 Dash Summary
The MXK10 Gen 4 Dash is a weather resistant datalogging display that comes with a range of unique features for Kawasaki Ninja ZX-10R motorbikes:
- Simple installation: A plug and play dash logger for Kawasaki Ninja ZX-10R bikes (2011-2015 models).
- Display: Features a high contrast 5’’ TFT display for clear visibility in various lighting conditions.
- LED alerts: Comes with 10 shift light LEDs and 6 RGB status LEDs for real time feedback.
- GPS accuracy: Includes an accurate GPS module for precise lap timing and track mapping.
- Internal memory: Stores data with 4 GB of internal memory, capturing detailed information from the bike's ECU.
- Durable: The MXK10 Kawasaki dash is IP65 rated to ensure durability against harsh motorbike driving conditions.
- Aim expansions: Supports expansion modules, from cameras to additional sensors to enhance data acquisition.
- Software: Compatible with Race Studio 3 software for in-depth performance analysis.
