MXS Strada Light
Technical Information
Model
MXS Strada Light
Overview

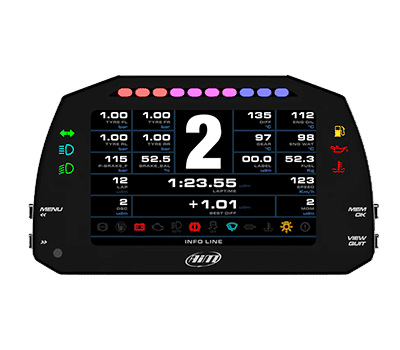

The MXS 1.3 Strada Light with Race Icons is a variant of one of the most widely used dash displays on tracks and roads around the world, the MXS 1.3.
Key Features
- 5" TFT display
- 10 shift light RGB LEDs
- CAN or K-Line input
- 6 alarm RGB LEDs
- 4 analogue inputs
- Configure data
Size & Weight
- Dimensions: 169.4x97x23 mm
- Weight: 460g
Waterproof
- IP 65
In The Box
- MXS Strada Light 1.3
- 23 Pin standard wiring
- USB Cable
- Aim sticker
Technical
- Light Sensor: Yes
- Alarm display Icons: Yes, freely configurable
- Shift Lights: 6 configurable RGB LEDs
- CAN connections: 2
- ECU Connection: CAN or K-Line to 1,000+ industry leading ECUs
- External modules: GPS Module, CHannel Expansion, TC Hub (necessary to connect K thermocouples), Lambda Controller, SmartyCam HD
- Analogue inputs: 4 fully configurable, max 500 Hz each
- EXT video inputs: 1 PAL-NTSC
- Second CAN: Yes
- Body: Anodised Aluminium
- Pushbuttons: Metallic
- Connectors: 1 AMP connectors + 1 Binder connector
- Power consumption: 400mA
Display
- Display: 5" TFT
- Resolution: 800 x 480 pixels
- Contrast: 600:1
- Brightness: 700cd/m² - 1,100 Lumen

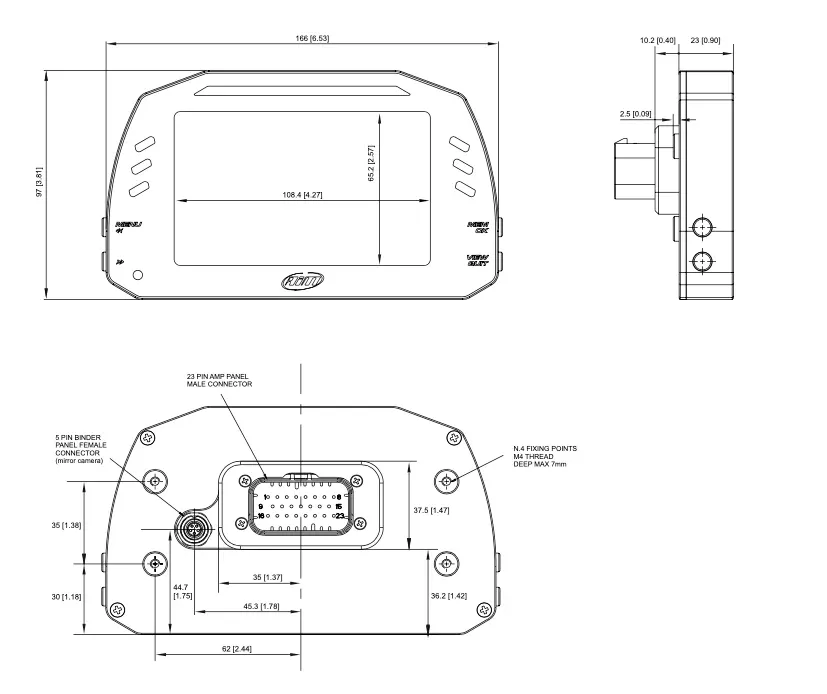

Diagram
