Technical Information
MyChron 5 Expansion
Technical Information
Model
Mychron 5 Expansion
Overview

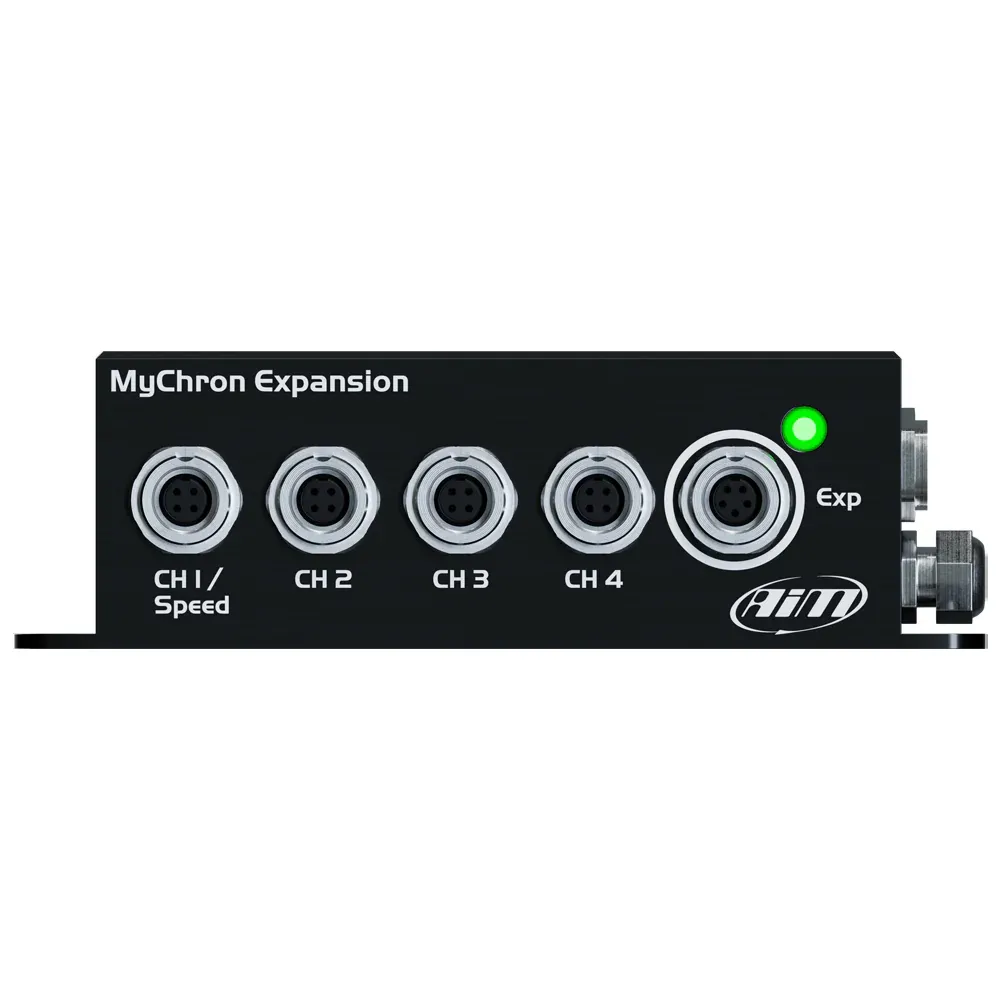

The Aim MyChron Expansion is a channel multiplier used for improving the MyChron5S & MyChron5S 2T performances.
Key Features
- 10Hz sampling frequency
- Four additional analogue inputs
- CAN connection
- Connection for further expansion
Size & Weight
- Dimensions: 127 x 24 x 33mm
- Weight: 194g
Waterproof
- IP65
In The Box
- MyChron Expansion
- Patch Lead
- External Power Lead
Technical
- Sampling Frequency: 10Hz
- Power: 2 pin Binder 712 Female connector
- Channel 1, 2, 3, 4: 4 pin Binder 712 Female connector
- EXP: 5 pin Binder 712 Female connector

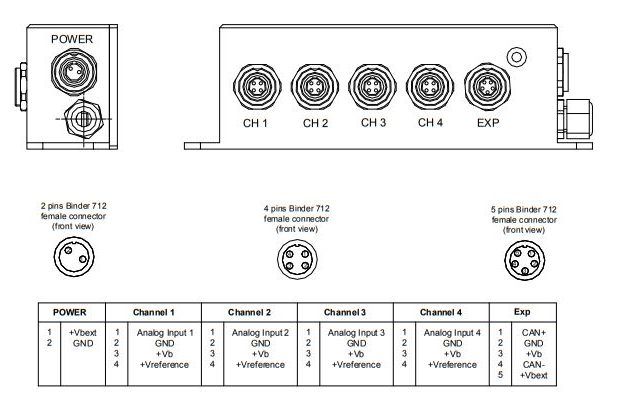

Diagram
