MyChron 6 Series
Technical Information

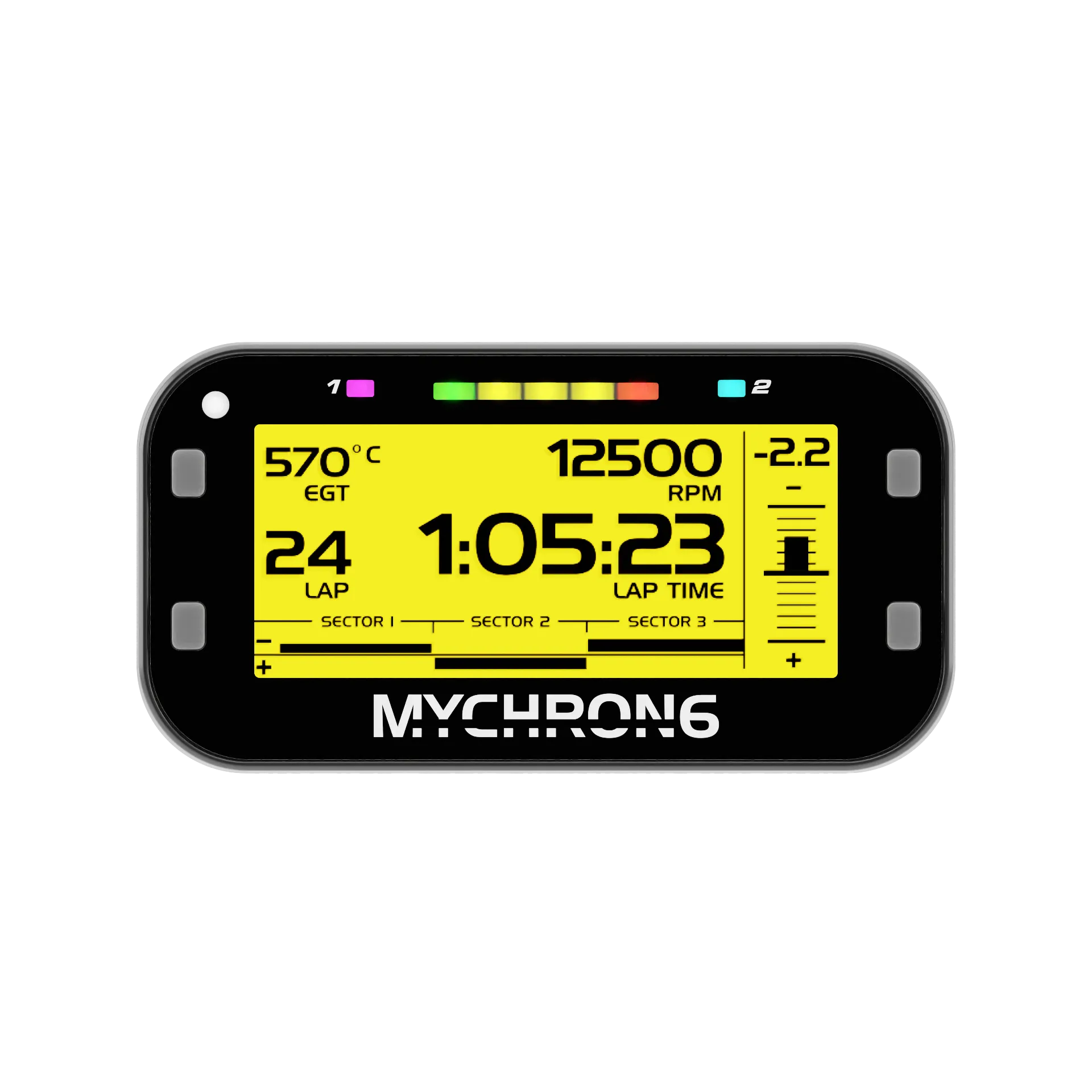

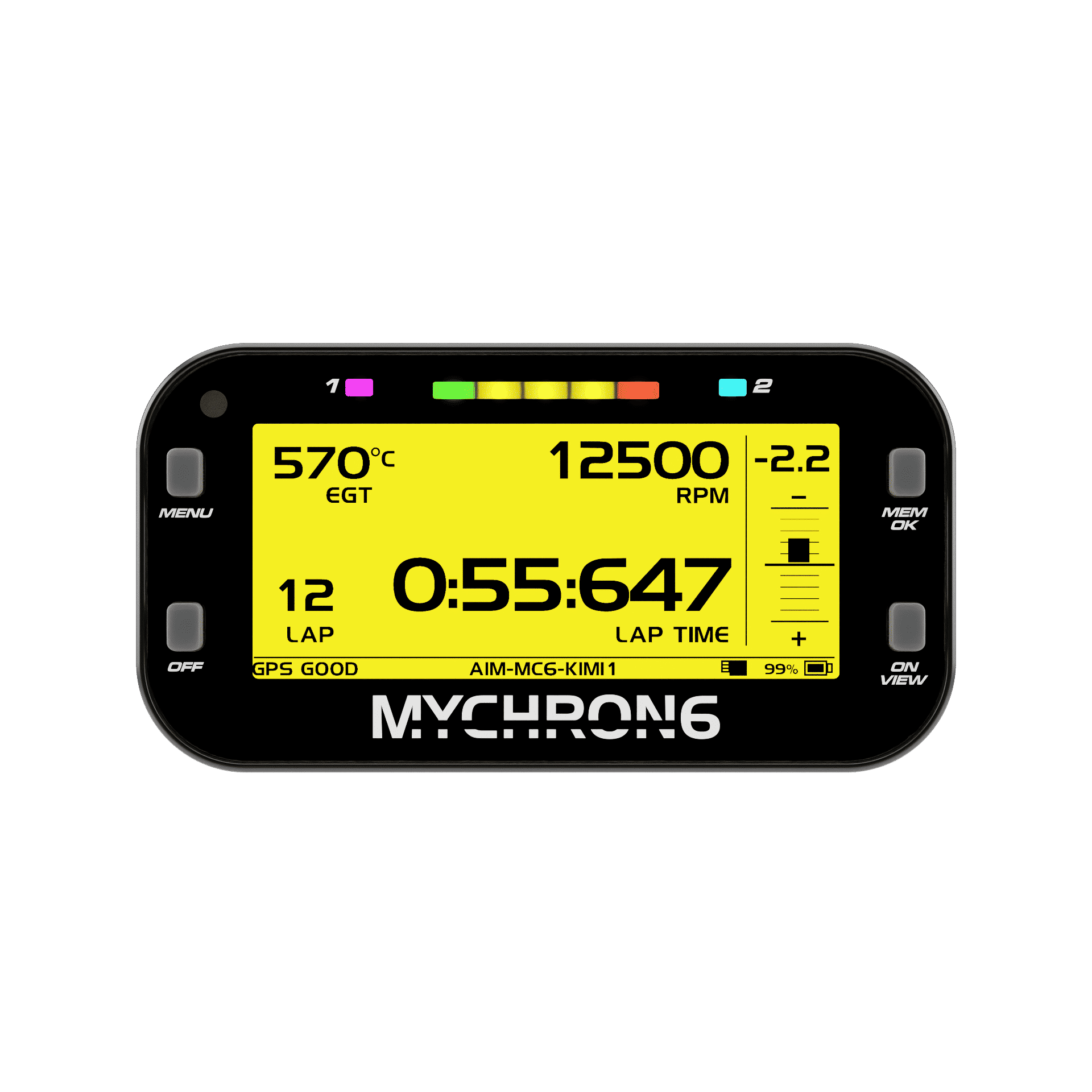

MyChron 6

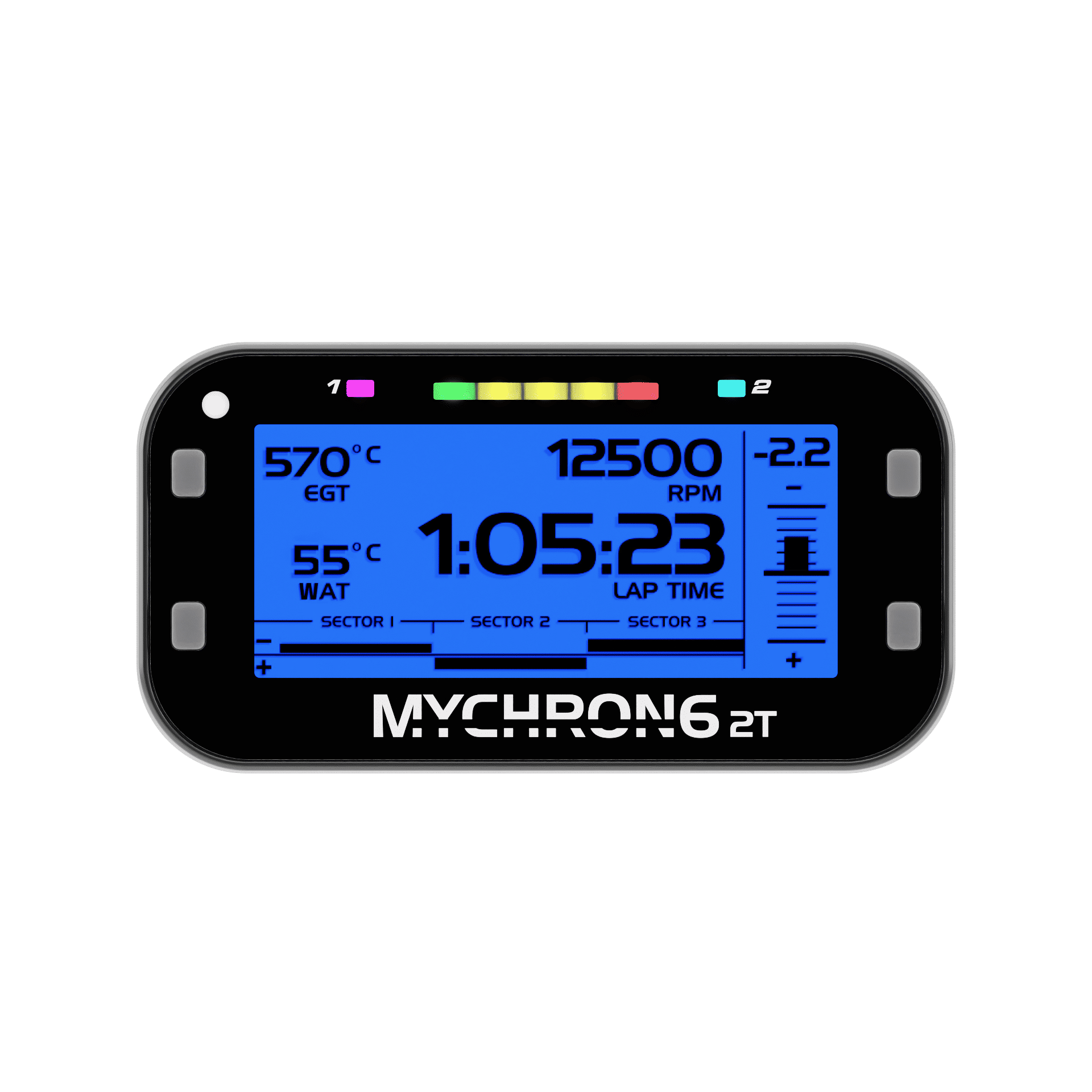

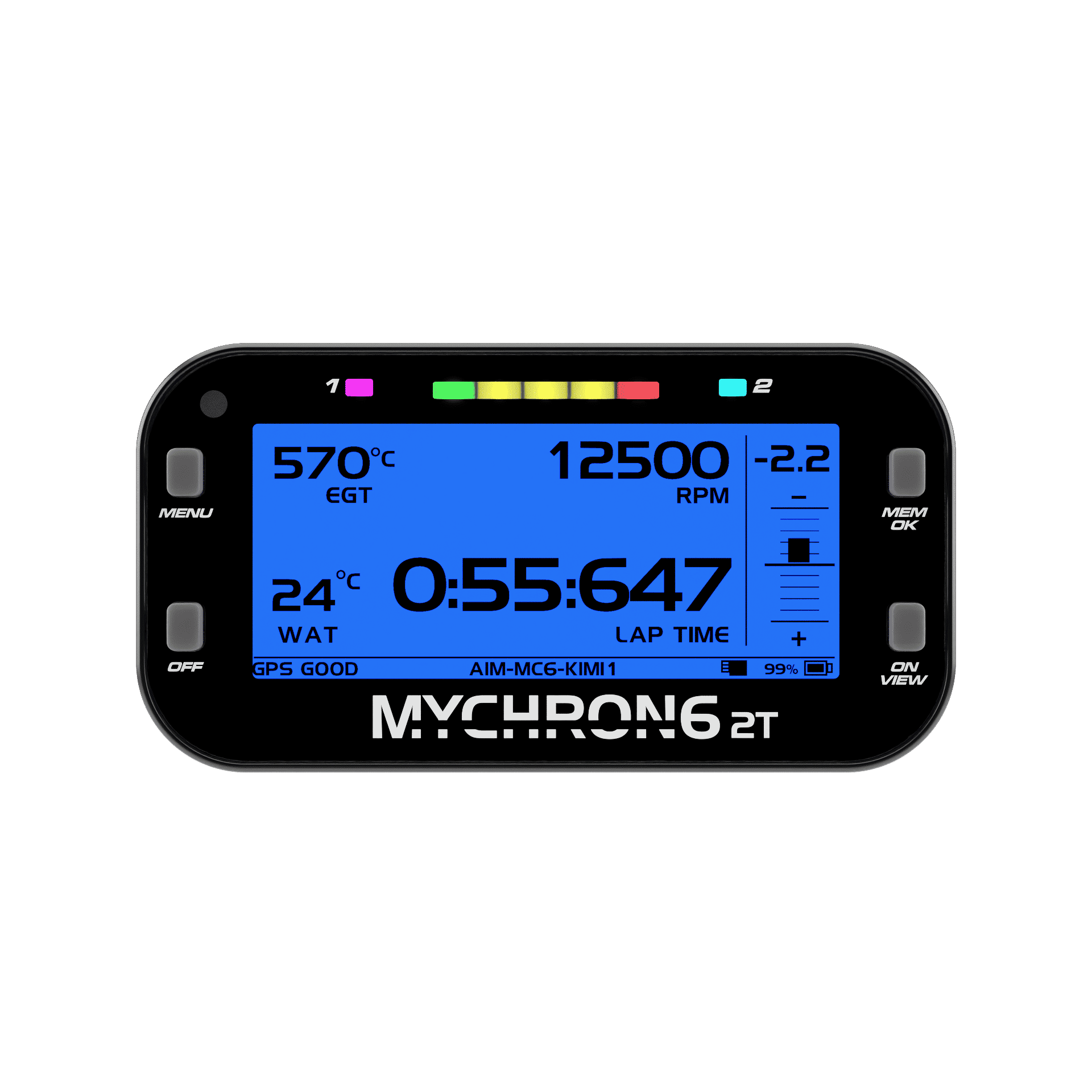

MyChron 6 2T

Model

solo 2
solo 2 DL

Overview

The Aim MyChron 6 is a high-performance kart data logger and lap timer, packed with advanced features designed to help racers monitor and improve their performance on the track.

Key Features

  • Integrated 25Hz GPS
  • Configurable display pages
  • 8 configurable RGB backlights
  • 2 configurable Alarm LEDs
  • Integrated GPS
  • 5 RGB LEDs configure for each gear
  • Waterproof
  • Integrated 25Hz GPS
  • Configurable display pages
  • 8 configurable RGB backlights
  • 2 configurable Alarm LEDs
  • Integrated GPS
  • 5 RGB LEDs configure for each gear
  • Waterproof

Size & Weight

  • Dimensions: 150 x 79 x 36.6mm
  • Weight: 370g
  • Dimensions: 150 x 79 x 36.6mm
  • Weight: 370g

Waterproof

  • IP 67
  • IP 67

In The Box

  • MyChron 6
  • Battery Charger with Cable
  • RPM Cable
  • Choice of temperature sensors
  • Aim Sticker
  • MyChron 6 2T
  • Battery Charger with Cable
  • RPM Cable
  • Choice of temperature sensors
  • Aim Sticker

Technical

  • GPS: 25HZ
  • Multifunctional LEDs: 5 RGB LEDs
  • Alarm LEDs: 2 configurable
  • Connectors: 1 Binder 712 fem 3 pins connector
    1 Binder 712 fem 8 pins connector
    1 Binder 712 fem 5 pins connector
  • Temperature inputs: 1
  • Inertial platform: 6 axis, frequency 50 Hz
  • Digital outputs: 1, programmable high/low activation
  • Body: PA6 GS30%
  • Battery: Rechargeable Lithium
  • Memory: 4 GB
  • Wifi: Yes
  • Bluetooth: Yes
  • GPS: 25HZ
  • Multifunctional LEDs: 5 RGB LEDs
  • Alarm LEDs: 2 configurable
  • Connectors: 1 Binder 712 fem 8 pins connector
    1 Binder 712 fem 5 pins connector
    1 Binder 712 fem 7 pins connector
  • Temperature inputs: 2
  • Inertial platform: 6 axis, frequency 50 Hz
  • Digital outputs: 1, programmable high/low activation
  • Body: PA6 GS30%
  • Battery: Rechargeable Lithium
  • Memory: 4 GB
  • Wifi: Yes
  • Bluetooth: Yes

Display

  • Resolution: 320 x 136 pixels
  • Backlight: 8 configurable RGB colours
  • Resolution: 320 x 136 pixels
  • Backlight: 8 configurable RGB colours

Integrated Track Database

  • Over 4,000 Worldwide
  • Over 4,000 Worldwide

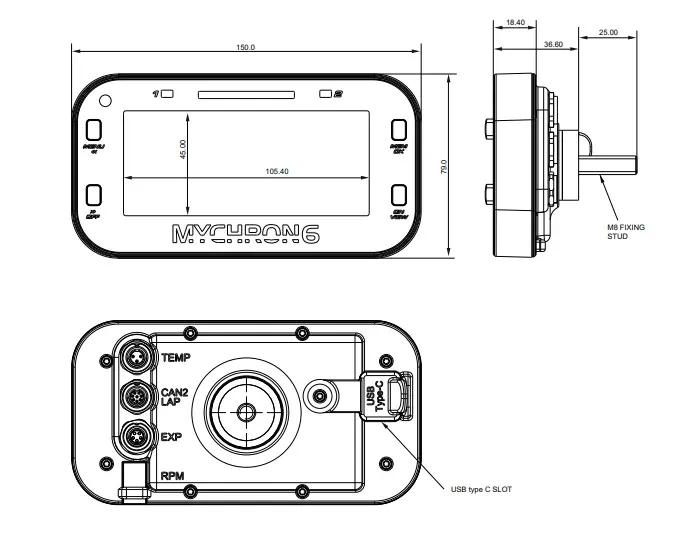

Diagram MyChron 6

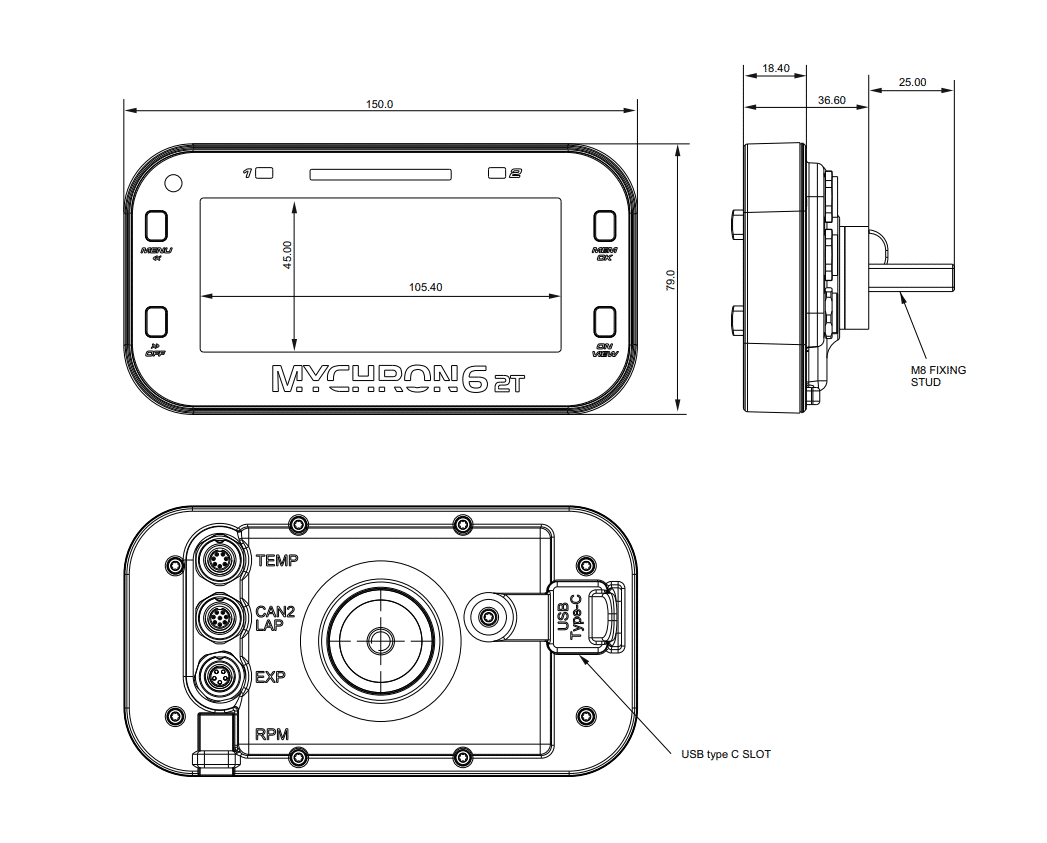

Diagram MyChron 6 2T

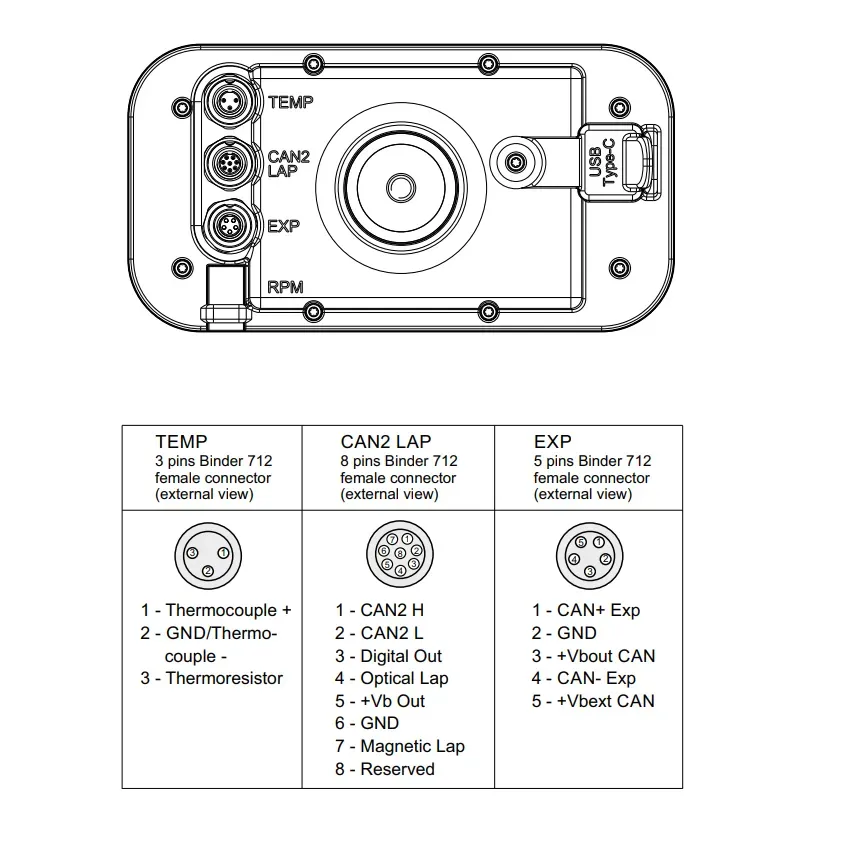

Pinout MyChron 6

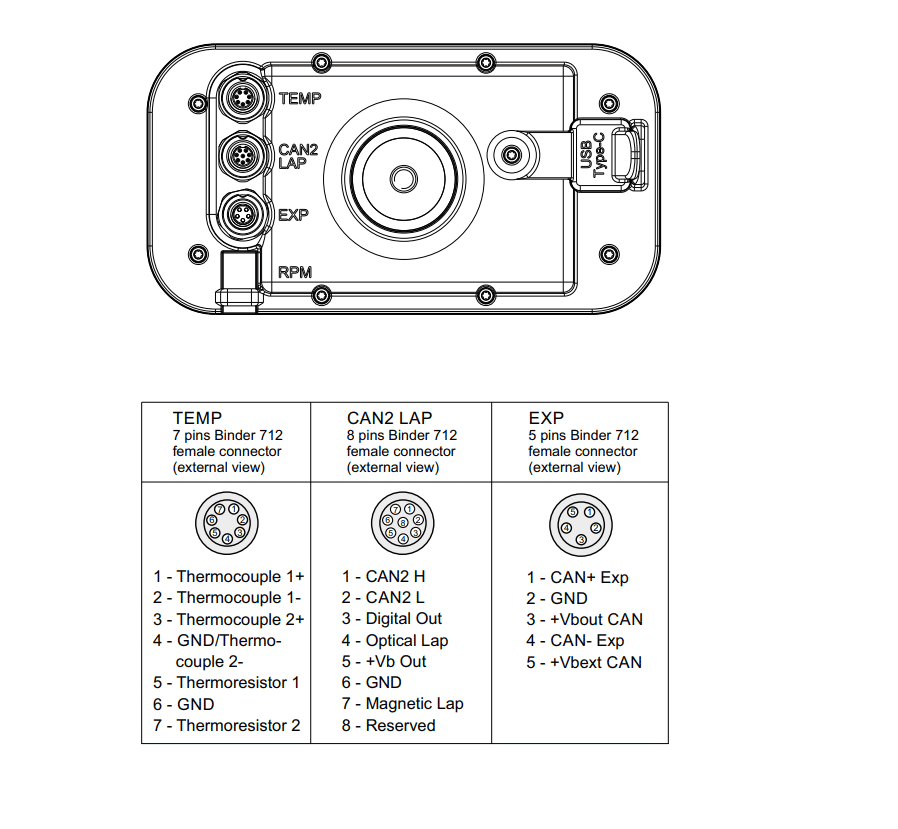

Pinout MyChron 6 2T
