MyChron 5 660
Technical Information
Model
Mychron 5 660
Overview
The Aim MyChron5 660 has been specifically designed for drag racing. Improve your quarter mile.
Key Features
- Lithium rechargeable battery
- 2 configurable alarm LEDs
- RPM sampling 50Hz
- 4 GB internal memory
- 2 temperature inputs for cylinder/EGT
- 1-speed output
Size & Weight
- Dimnesions: 137 x 88 x 30mm
- Weight: 390g
Waterproof
- IP 67
In The Box
- MyChron5 660
- Dragster split cable
- Phonic wheel kit for dragster
- Magnetic wheel speed sensor
- Cylinder head thermocouple
- Exhaust gas thermocouple
- USB cable
- Battery charger with cable
- Aim Sticker
Technical
- GPS: 25HZ
- Inertial platform: Included
- Wi-Fi connection: Included
- Ambient Light Sensor: Yes
- Multifunctional LEDs: 5 RGB LEDs
- Alarm LEDs: 2 configurable
- RPM Sampling Frequency: 50 HZ
- Body: Glass fibre reinforced Nylon
- Pushbuttons: Metallic
- Battery: Rechargeable 2900 mAh Lithium-Ion
- Memory: 4 GB
Display
- Resolution: 268 x 128 pixels
- Backlight: 7 configurable RGB colours

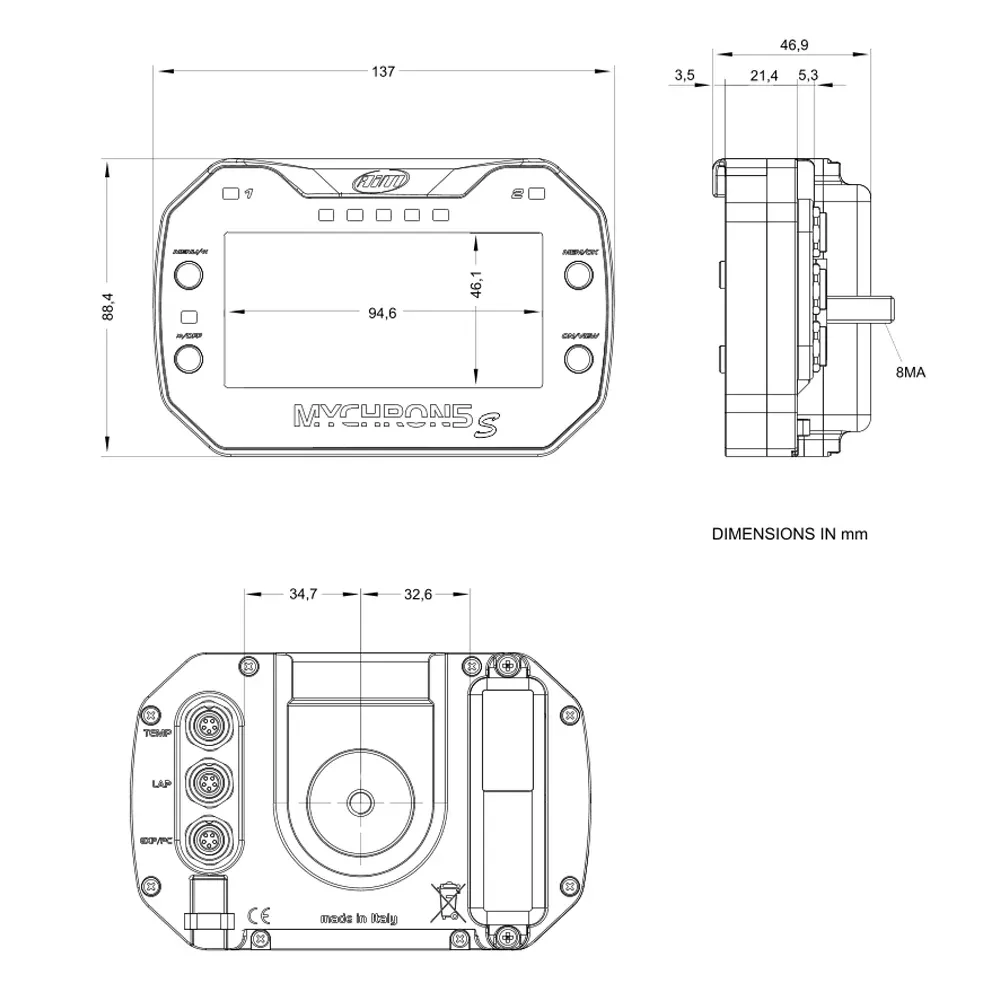

Diagram
