Rear Camera
Technical Information
Model
Rear Camera
Overview
Our innovative rear camera will turn your dash display/dash logger into a rear view mirror or reversing camera. Ideal for sports or race cars with limited view.
Key Features
- Ideal for vehicles with limited view
- 5 pin male binder connection
- Suitable for MX Series and PDM
- Park overlay function
In The Box
- One mirror/reversing camera - Patch cables are sold separately
- Flush Mount kit - Drill bit & Flush mount
- Swan Neck kit - Rubber pad, Screws & Bracket
Technical
- Optical format: 1/4 inch colour CMOS
- TV system: NTSC
- H-FOV: 170°
- Picel array: 648 (H) x 488 (V)
- Frame rate: 60 fps
- Temperature: -30/80 °C

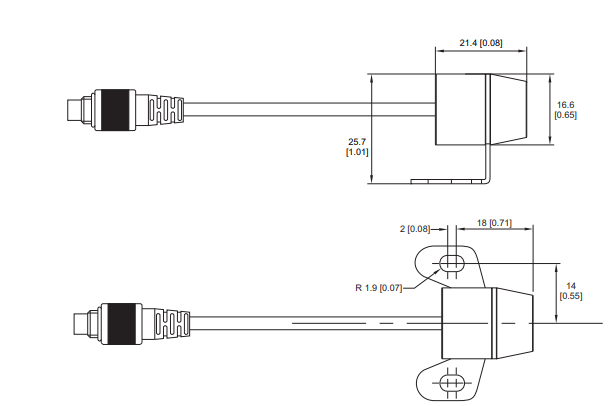

Diagram
