Aim Remote Input / Output Module
Technical Information
Model
AiM Remote Input / Output Module
Overview
The RIO02 Remote Input/Output Module is dedicated to pushbutton management when the available inputs are not enough.
Key Features
- CAN Connections - 1
- 8 programmable Switch to Batt
- 11 Switch to ground
- 2 low side outputs
- 5 pin 712 male connector
Size & Weight
- Dimnesions: 99.2 x 80 x 40.1 mm
- Weight: 120 g
In The Box
- Aim Remote Input / Output Module
Technical
- CAN connections: 1
- Inputs: 19 of which: (8 prog: Switch to Batt, Switch to ground) 11 Switch to Ground
- Dig outs: 2 Low Side 2 A Max
- Connectors: 1 AMP 776087-1 connector
- Body: Plastic

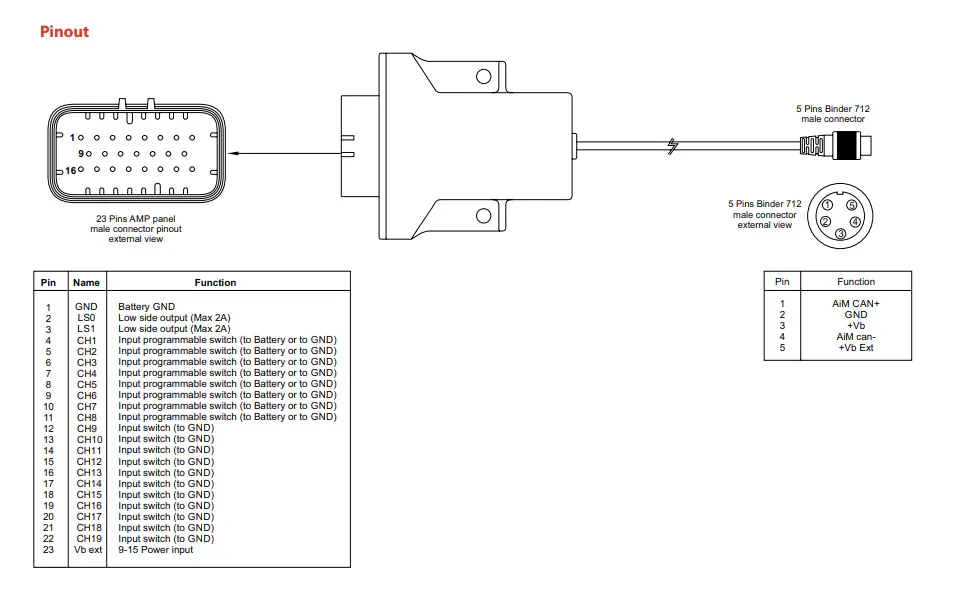

Diagram
Ideally, the power inputs should get power from the RIO pin 23.
