RPM-CAN Converter
Technical Information
Model
RPM-CAN converter
Overview

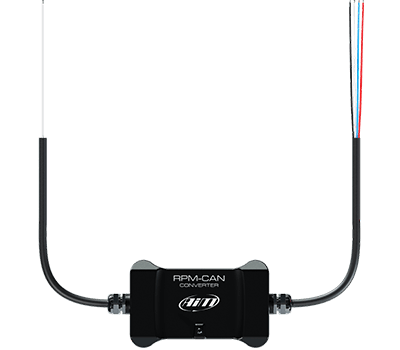

The RPM-CAN Connector has been designed to get the RPM value from vehicles without an ECU. It has been specifically designed to work in conjunction with the PDM08 and PDM32.
Key Features
- Suitable for PDM08 & PDM32
- Transmits messages with CAN
In The Box
- RPM-CAN Converter
Technical
- The RPM-CAN Converter may read the signal from:
- The low voltage of the coil (150 to 400V)
- A square wave signal (5 to 50V)
- Transmit the RPM value on the CAN-BUS using the following protocol:
- Rate: 1 Mbit/s
- ID CAN: 0x200
- Endianness: Little Endian
- Start Bit: 0
- Length: 32-bit
- ID CAN: 0x200
- ID CAN: 0x200
- White wire: CAN HIGH
- Blue Wire: CAN LOW
- Red Wire: 9-15V POWER IN
- Black Wire: GND
- RPM INPUT: White Wire

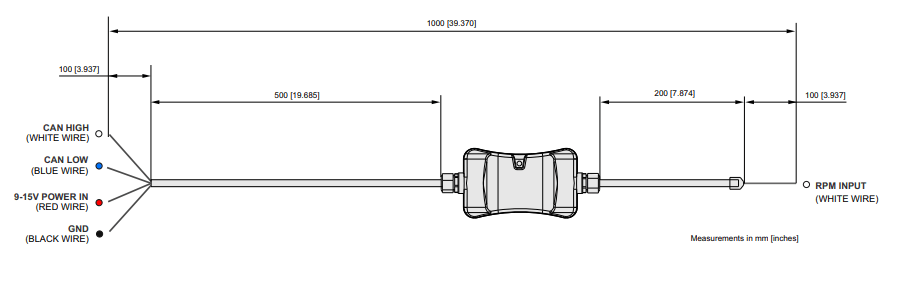

Diagram
