RPM Clip
EVO4 RPM Coil Adaptor

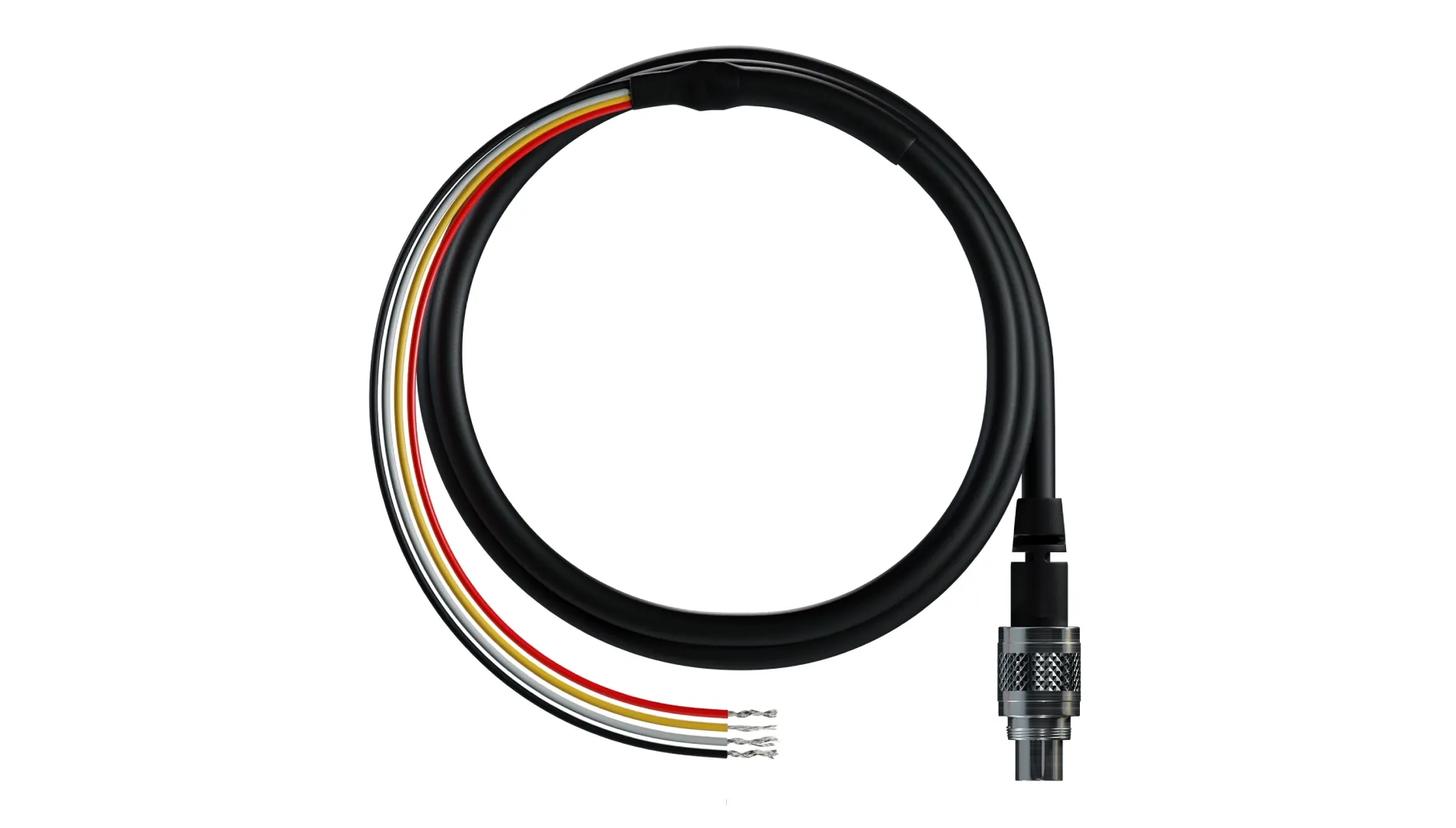

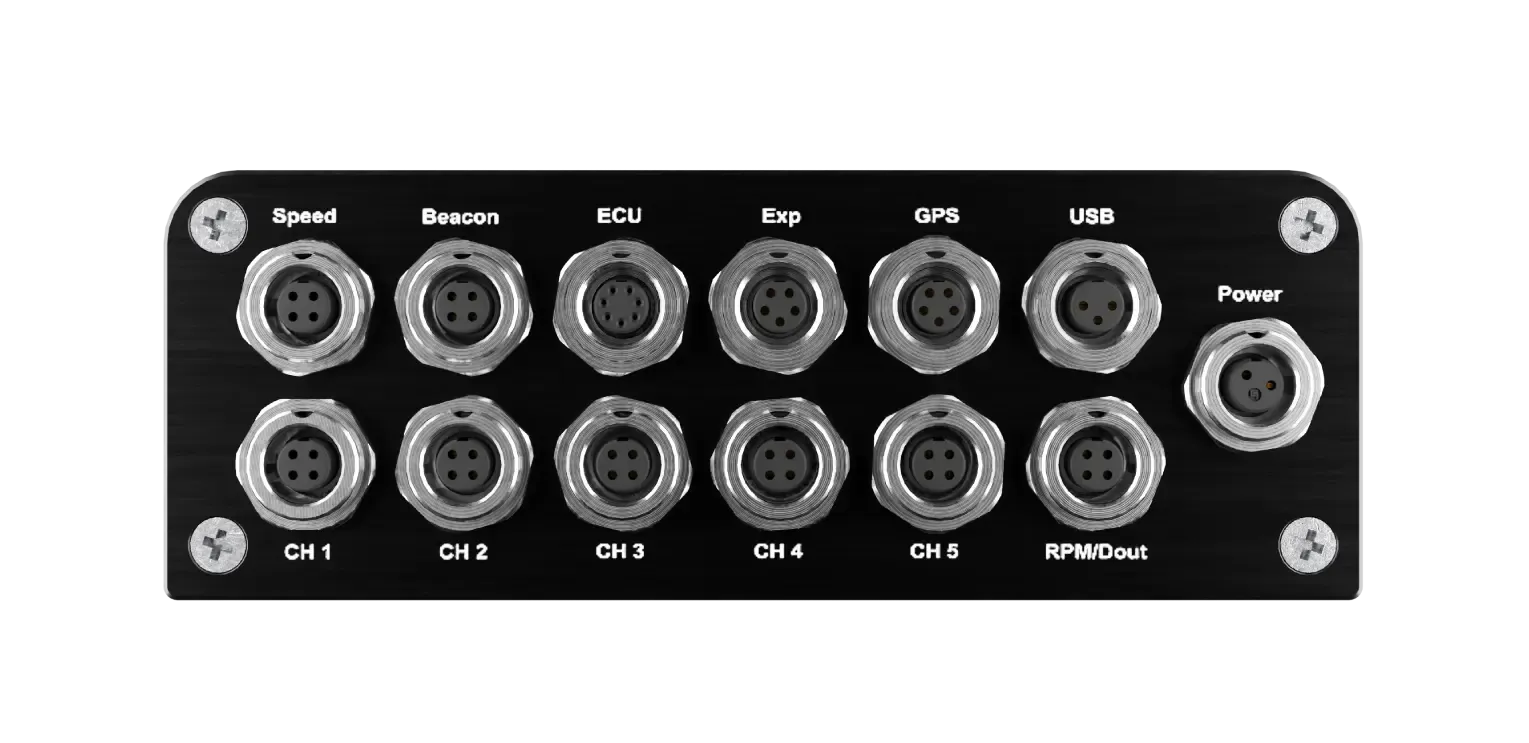

The Aim RPM Coil Adaptor (X50AARP040) connects to the EVO4 data logger, filtering coil signals for noise reduction and generating a square wave output.
A Closer Look
Cables

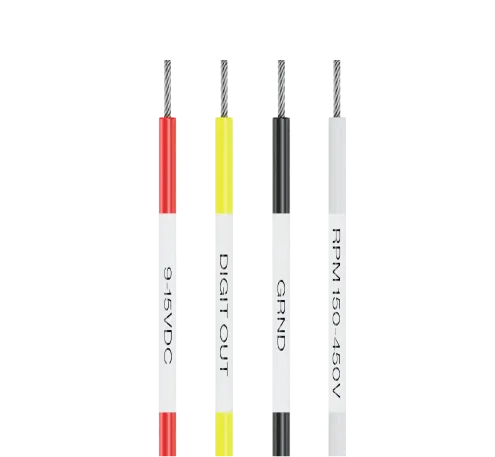

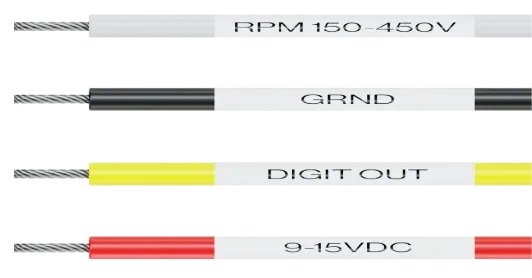

Black (GND), Red (9-15 VDC), White (RPM input), and Yellow (DIGIT OUT for digital output) cables
712 Male Connector

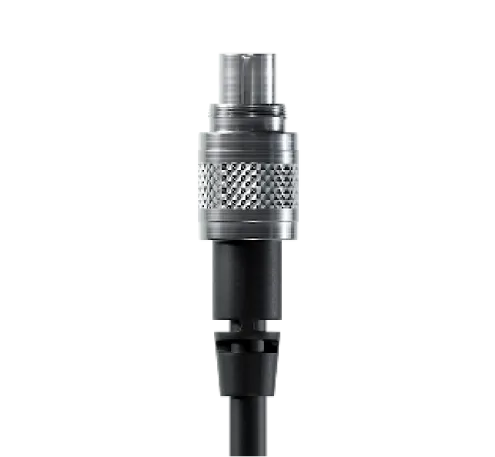

The receiver ends with a 5 pins Binder 712 male connector for a secure and reliable connection
For Non-ECU Vehicles
This Aim adaptor converts raw coil signals into filtered, noise-reduced square waves for RPM data logging with an Aim EVO4, ideal for vehicles without an ECU.
