Shift Light Module
Technical Information
Model
Shift Light Module
Overview

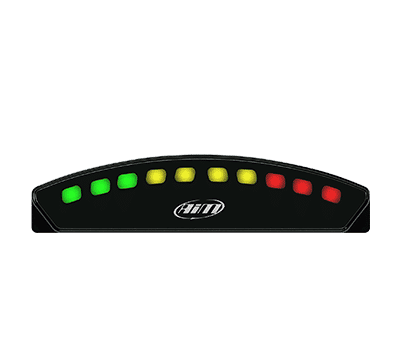

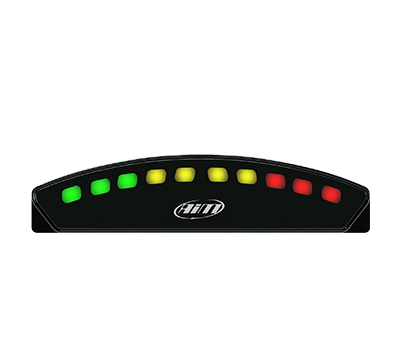

The Aim shift light module is a compact array of ten RGB LEDs that help monitor RPM thresholds, alerts and other indicators.
Key Features
- Fully configurable
- Configure LED colours
- 10 RGB LEDs
- Configure RPM value settings
Size & Weight
- Dimensions: 116 x 27 x 17mm
- Weight: 70g
Waterproof
- IP 65
In The Box
- Shift Light Module
Compatibility
Via CAN with EVO4S, EVO5, MXL2, MXG, MXG 1.2, MXG 1.2 Strada, MXP, MXP Strada, MXS, MXS 1.2,
MXS 1.2 Strada.

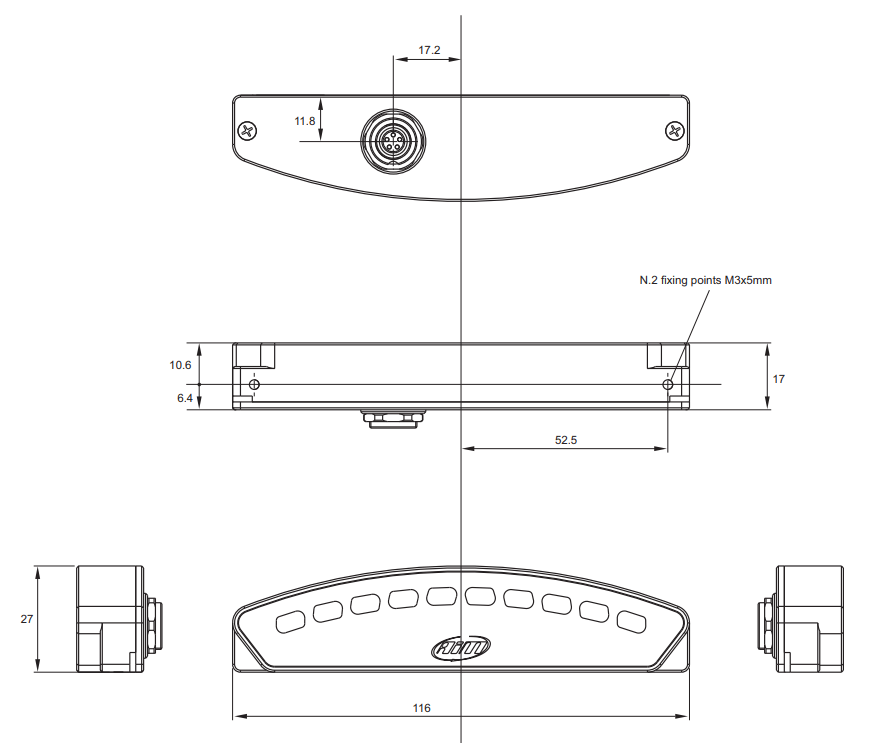

Diagram
