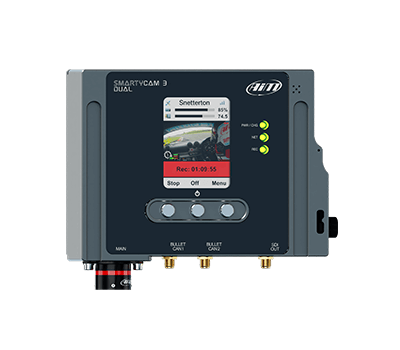

SmartyCam 3 Dual
Technical Information

SmartyCam 3 Dual is the flagship version of SmartyCam 3 range, designed for any racer who wants to get the most out of any performance video on the track. Dual Full HD camera system, Video output, CAN connection, USB-C connection, Ethernet port are only few of the features of SmartyCam 3 Dual: the most powerful of our range.

• Wide global shutter with a CMOS sensor
• Support SD Card up to 2TB
• Full HD Images
• Duarable & Waterproof
• Sapphire Frontal glass
• Auto Start/Stop recording
• Built-in data logger
• Video & Data all in one place
• Video output streaming
• Automatic data & video synchronisation

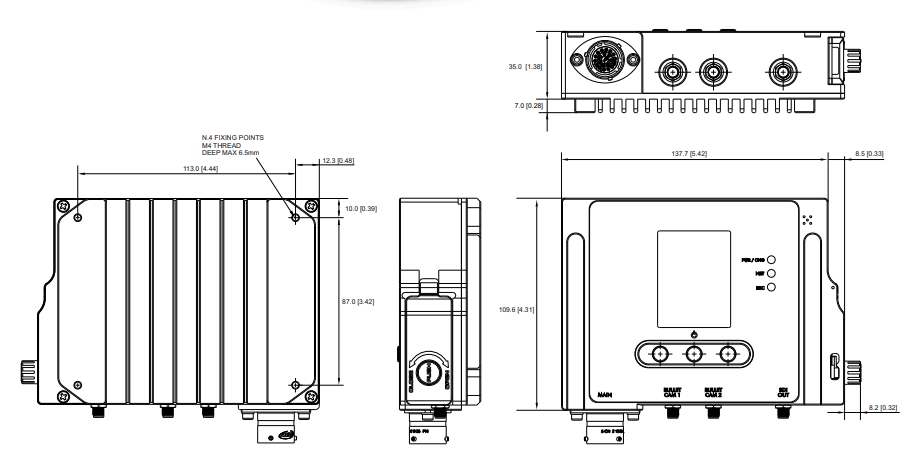

• Dimensions:
  Main unit 154.4 x 109.6 x 42 mm
  Bullet camera 24 diam x 46.0 mm (120° lens)
  Bullet camera 24 diam x 41.0 mm (67°-84° lens)
• Weight:
  Main unit 800g
  Bullet 45 g

• IP 65

• SmartyCam 3 Dual
• External Power Cable
• USB-C Cable
• 2 Bullet Cameras
• 2 Co Ax Cables
• Harness (Optional)

• Video format: H.264 1920 x1080 pixels @ 60 fps
• Lens: Low distortion camera lens
• CMOS sensor: Global Shutter
• Field of view: 67°, 84°, or 120°
• Internal battery: Rechargeable lithium battery
• Video out: 3G-SDI
• External power: 9-15 Volt
• Support SD card: Up to 2TB
• Usage temperatures: -10°C/+50°C
• Auto power ON/OFF: Yes
• Auto Start/Stop Recording: Yes
• Body: Anodized Aluminium
• Connectors: 1 Deutsch 22 pin + 1 SMA SDI Video out + 2 SMA bullet connection + 1 USB-C
• Bullet cable length: From 0.5 m to 4 m (7 lengths available)

• Display resolution: 2.4" 240 x 320 pixels
