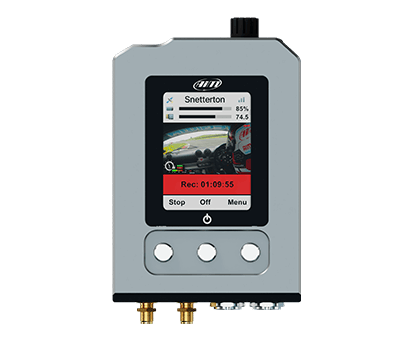

SmartyCam 3 GP
Technical Information

The all-NEW SmartyCam 3 GP camera has been designed for motorsport with a single purpose: To provide great videos and supply you with all the information you need. SmartyCam 3 GP camera overlays all the data from both GPS and Aim loggers connected to your ECU. Full HD camera system, Video output, CAN connection, USB-C connection, and GPS port are only a few of the features of SmartyCam 3 GP: the power of simplicity.

• Sapphire Lens Glass
• Automatic Track Selection
• Full HD Images
• Auto Start/Stop Recording
• Custom Overlays
• UBS C Port for pc/laptop
• ECU CAN Input
• Support SD Card
• Video & Data Saved to SD Card
• IP65 Rated

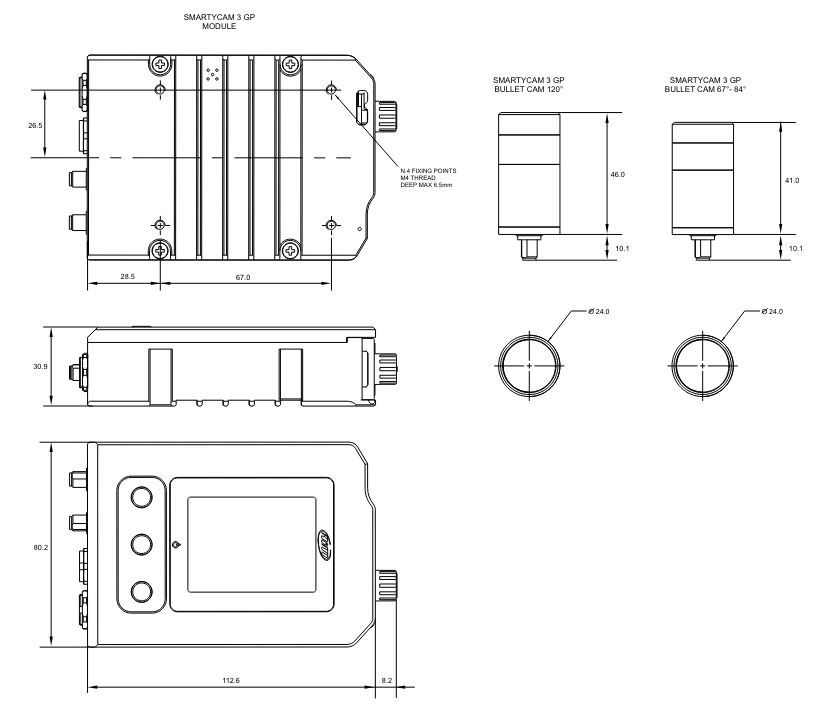

• Dimensions:
  Main unit 120.8 x 80.2 x 30.9 mm
  Bullet camera 24 diam x 46.0 mm (120° lens)
  Bullet camera 24 diam x 41.0 mm (67°-84° lens)
• Weight:
  Main unit 320g
  Bullet 45 g

• IP 65

• SmartCam 3 GP
• USB-C Cable
• 712 5 Pin Male
• 2 or 4 Metre Can Cable

• Video format: H.264 1920 x1080 pixels @ 60 fps
• Lens: Low distortion camera lens
• CMOS sensor: Global Shutter
• Field of view: 67°, 84°, or 120°
• Internal battery: Rechargeable lithium battery
• Video out: 3G-SDI
• External power: 9-15 Volt
• Support SD car: Up to 2TB
• Usage temperatures: -10°C/+50°C
• Auto power ON/OFF: Yes
• Auto Start/Stop Recording: Yes
• Body: Anodised Aluminium
• Connectors: 2 Binder 712 female connectors + 2 SMA female connector (see pinout page) + 1 USB-C
• Bullet cable length: From 0.5 m to 4 m (7 lengths available)

• Display resolution: 2.4" 240 x 320 pixels
