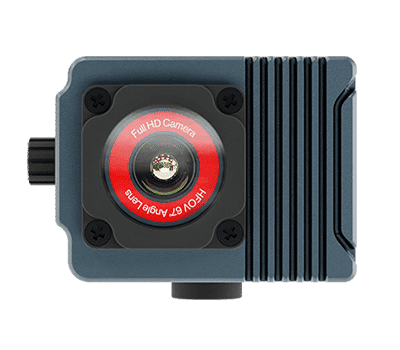

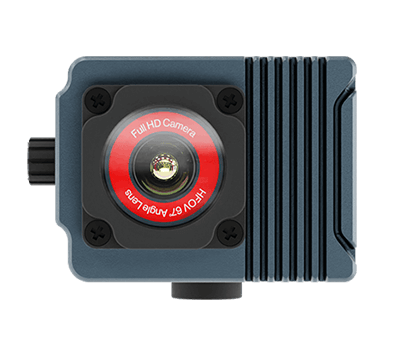

SmartyCam 3 Sport
Technical Information

Full HD recording. Crystal Clear Video. TFT Colour display. Automatic Start/Stop. Real-time overlay videos. Configurable. Choice of lens and can cable. Wave & Wobble eliminated. Waterproof.

• Wide Global SHutter with a CMOS Sensor
• Graphical Display
• Full HD Images
• Auto Start/Stop Recording
• Durable & Waterproof
• Automatic Track Selection
• Sapphire Frontal Glass
• Video & Data All in One Place
• AutoMatic Data & Video Synchronisation

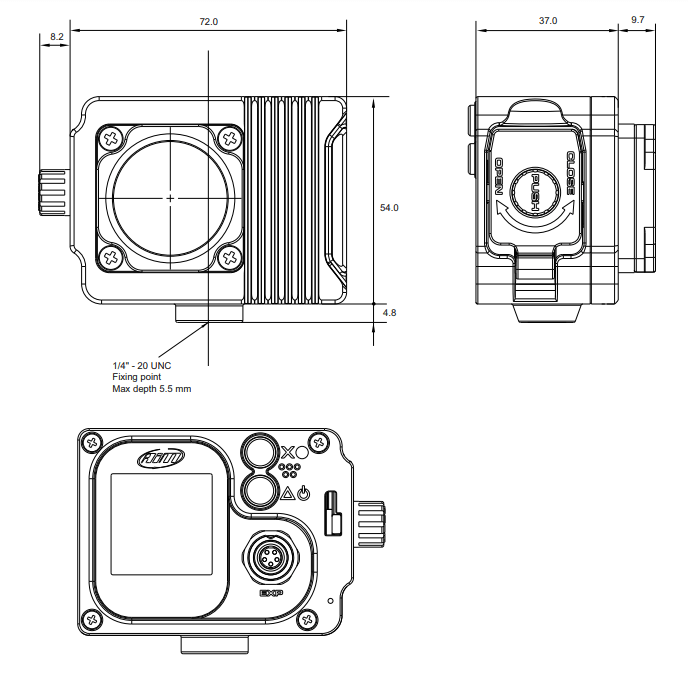

• Dimnsions: 79.9 x 54 x 46.5mm
• Weight: 200g, battery included

• IP 65

• SmartCam 3 Sport
• Data Hub (Optional)
• 12v Mains CHarger
• 2m / 4m CAN Cable

• Video format: H.264 1920 x1080 pixels @ 30 fps
• Lens: Low distortion camera lens
• CMOS sensor: Global Shutter
• Field of view: 67° or 84°
• Internal battery: Rechargeable lithium battery
• External power: 9-15 Volt
• Support microSD car: Up to 2TB
• Connectors: 1 Binder 712 female
• Usage temperatures: -10°C/+50°C
• Auto power ON/OFF: Yes
• Auto Start/Stop Recording: Yes

• Display resolution: 128 x 128 pixels

• User Guide
• Technical Sheet
• CAD Model
• Other documents
• Race Studio 3
