SmartyCam 4 Corsa
Technical Information
Model

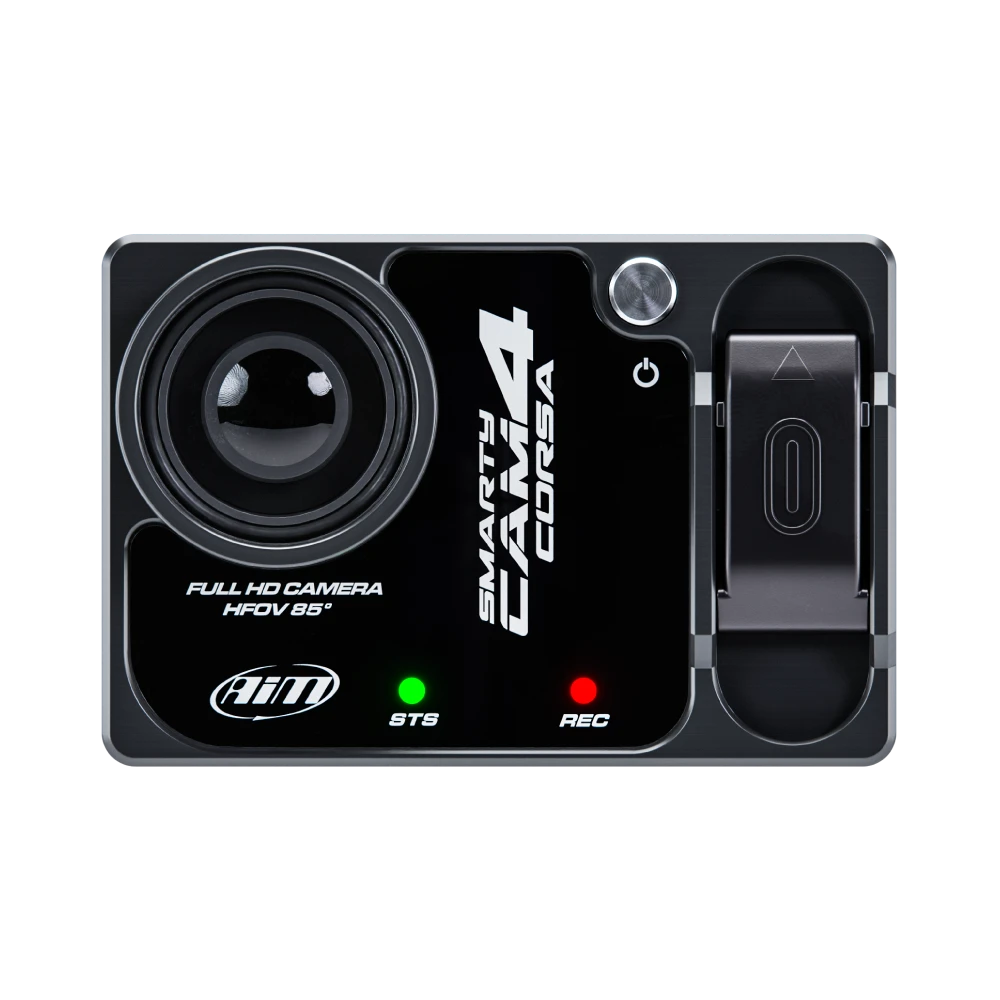

SmartyCam 4 Corsa
Overview
The Aim SmartyCam 4 Corsa has been purpose-built for motorsport, combining exceptional video quality with advanced data integration to give drivers and teams the information they need to improve performance. Building on the success of the SmartyCam 3 Corsa, the latest generation introduces major upgrades in image quality, connectivity, and usability, making it one of the most capable motorsport cameras available today.
Key Features
- Sony 12MP CMOS
- Data Logging
- Auto Start/Stop Recording
- Low Distorion Lens
Size & Weight
- Dimensions: 94 x 63 x 28.7mm
- Weight: 260g, battery included
Waterproof
- IP 65
In The Box
- SmartCam 4 Corsa
- USB-C Memory Card (64GB)
- USB-A to USB-C Cable
- CAN Cable
- 12V Mains Charger
Technical
- Video format: H.264 - 1920 x 1080 pixels at 30/60 fps
- Lens: Low-distortion camera lens 85°
- CMOS sensor: Sony 12 MP CMOS
- Stabiliser: LSI Sony for enhanced features
- Internal battery: Rechargeable LiPo battery
- External power: 9-15 Volt
- Supported Memory: USB-C Card up to 2TB & SD Card up to 2TB
- Connectors: USB - Wi-Fi - Bluetooth
- Streaming: Via USB or Wi-Fi
- Connectors: 1 7-pin binder 712 female, 1 5-pin binder 712 female & 1 USB-C
- Temperature Working Range: -10°C/+50°C
- Auto Power ON/OFF: -10°C/+50°C
- Auto Start/Stop Recording: Yes
- Race Studio 3 App & Software: Yes
- Body: Anodised Aluminium
Diagram
