Kart Speed Sensors
'Aim speed sensors measure vehicle speed using Hall Effect or magnetic induction, enhancing precision for performance analysis and lap
timing in motorsports.'
Rear Wheel Speed
The Aim Magnetic Speed Sensor utilises non-contact technology to provide precise speed measurements, making it ideal for kart applications. It seamlessly integrates with MyChron systems, ensuring accurate and reliable data collection.
Sensing Distance:
from 10-20mm
Sensor Magnet
Position the sensor and trigger magnet (8-20 mm) on the wheel hub, prop shaft, or brake disc. Secure the sensor to the bracket and connect it to the Aim logger

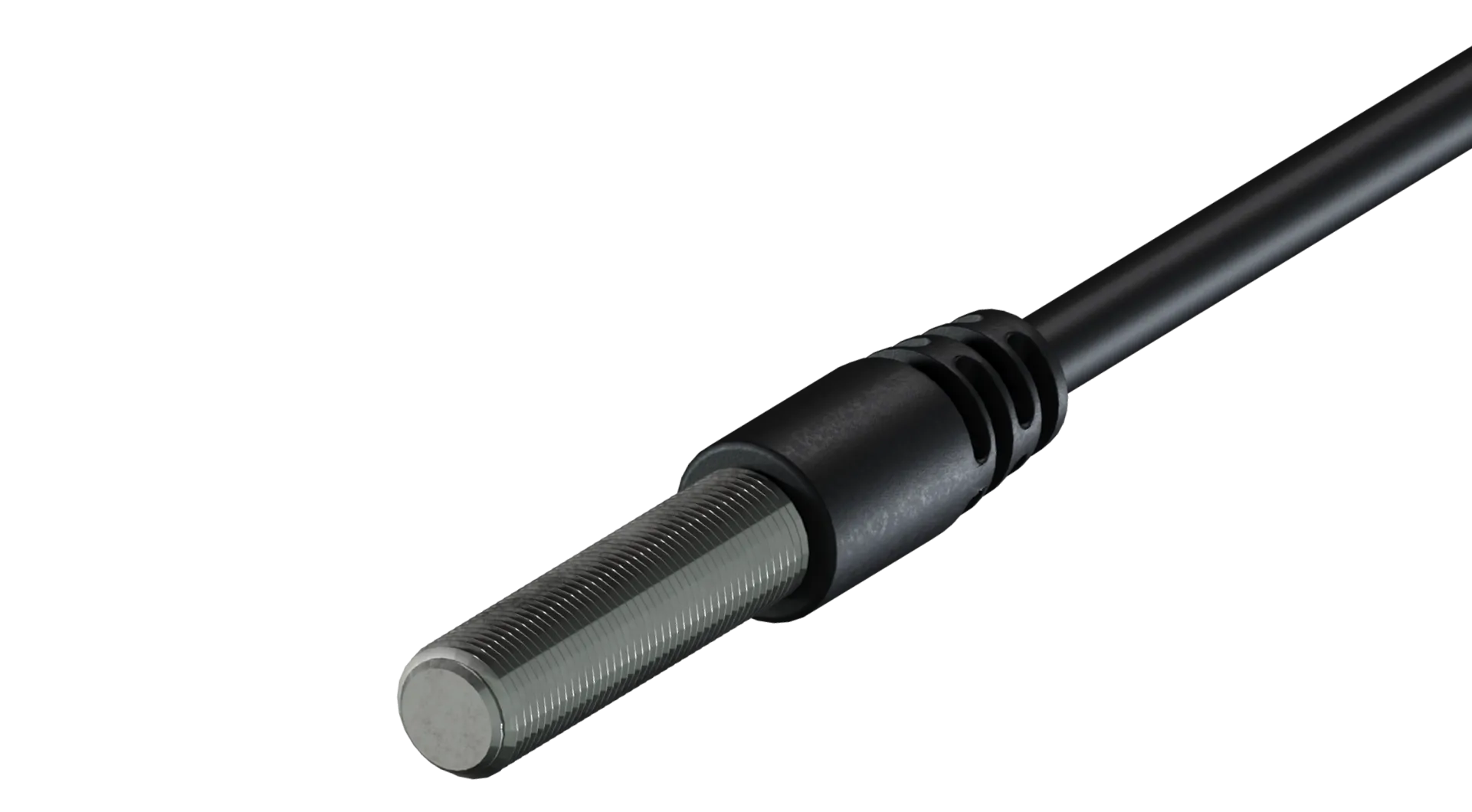

Magnetic Speed Sensor
The Aim non-contact sensor requires a metallic trigger to pass in front of it for accurate speed measurement. It is recommended to use a rear axle locknut as the trigger.

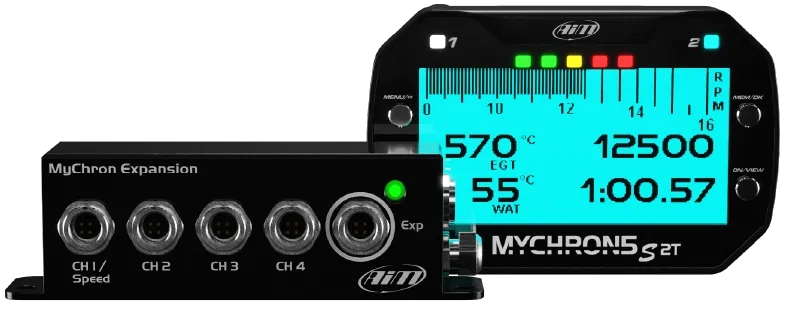

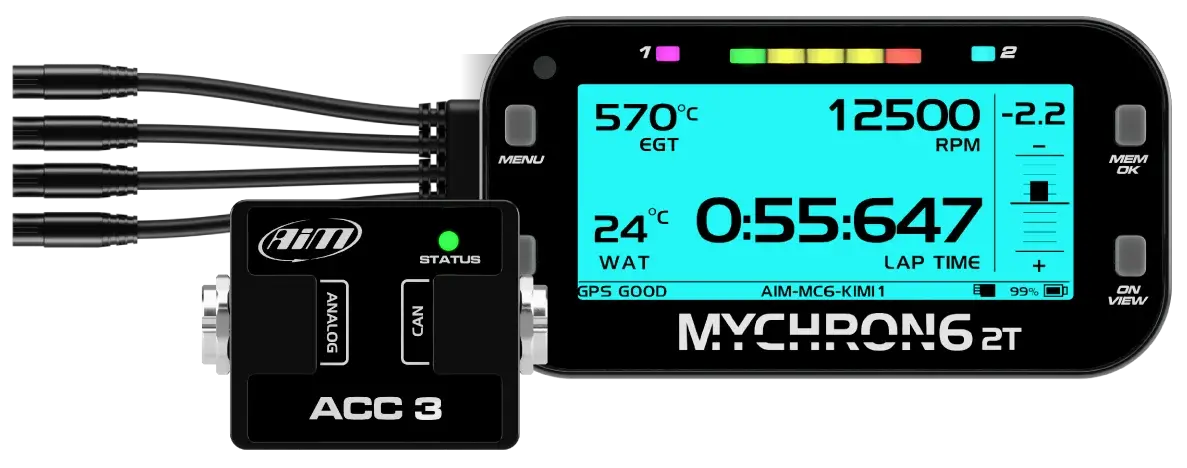

The Perfect Companion
The Aim non-contact sensor is the perfect companion for MyChron and MyChron 5S 2T, offering precise visualisation of speed measurements and enhancing your data acquisition.
Choose Your Connector
Opt for the connector type that suits your needs: metallic for durability (Binder 712) or plastic for versatility (Binder 719). Customise your setup for seamless integration.

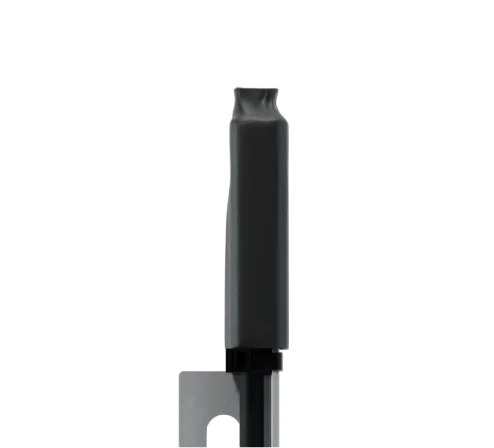

Front Wheel Speed

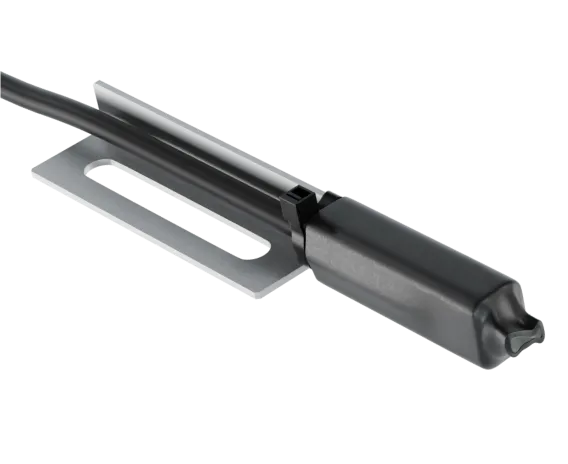

Aim devices are designed to measure the front wheel speed of karts utilising a non-contact sensor, which requires a magnetic metallic trigger to pass in front of it. The comprehensive sensor kit comprises a metal plate with a magnetic cylinder and a metallic bracket to which the sensor is welded for reliable and accurate front wheel speed measurement.
Sensing Distance:
3-5mm
Secure Connectivity
Secure connectivity and compatibility with various data logging setups. Its state-of-the-art design enables the measurement of front wheel speed with exceptional accuracy, providing critical insights into your kart's performance.
Sensor Magnet
The sensor's precision is boosted by a magnetic trigger, ensuring reliable speed measurements for an enhanced karting experience.

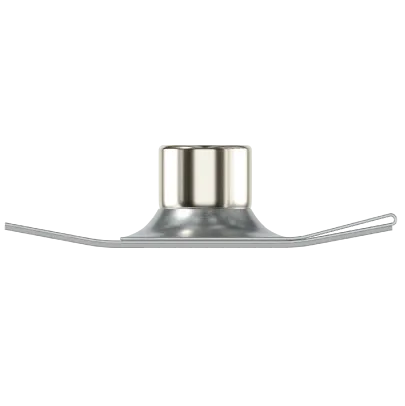

Magnetic Plate
The kit features a metal plate with a magnetic cylinder and a welded metallic bracket for easy, stable installation on the front wheel rim and steering arm.
712 Male Connector
All fitted with a four pin 712 binder plug connection to fit the Aim MyChron Expansion.

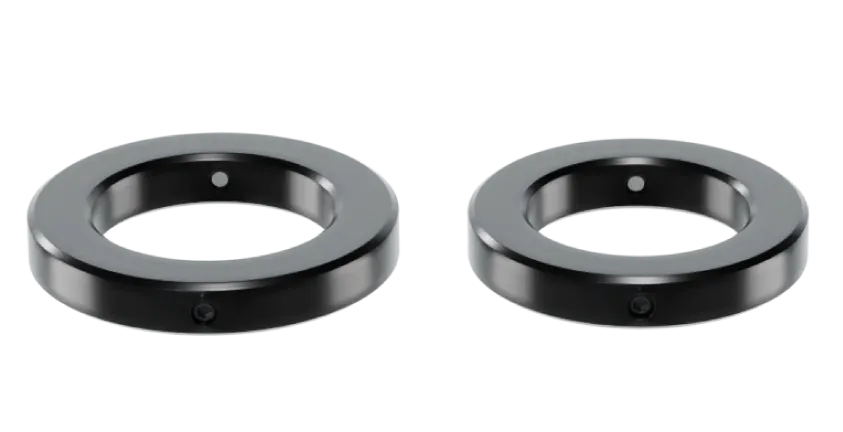

Rear Axle Collar
Enhance speed detection accuracy with the Aim optional rear axle collar, featuring an integrated magnet. Aim strongly recommends this accessory, available in various diameters, to optimise the performance of your speed sensors. Upgrade your setup for superior precision on the track.
Collar Diameters:
30mm or 50mm
