SW4 FORMULA
Technical Information

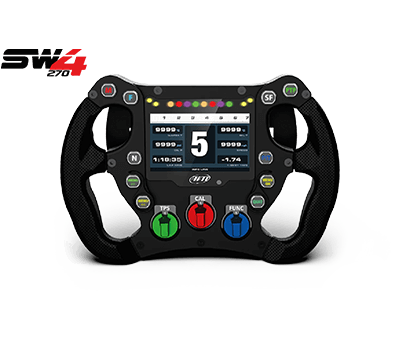

Formula 270

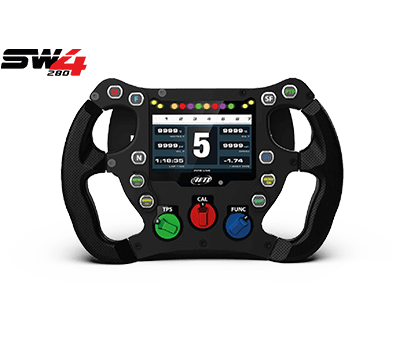

Formula 280

Model

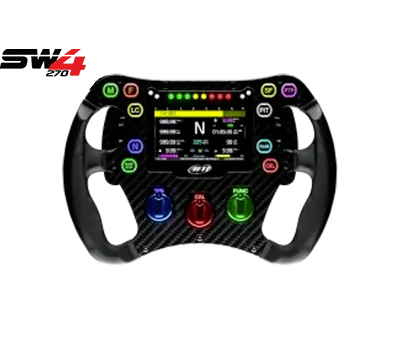

sw4 270 steering wheel
Formula 270
sw4 280 steering wheel
Formula 280

Overview

The all-new Aim Formula Steering Wheel 4 series are our most advanced steering wheels to date. Get a closer look at our brand new design of display and functions. The Formula Steering Wheel 4 is available in four unique sizes and incorporates an internal data logger with complete configuration.

Key Features

  • 4.3" TFT display
  • 2 CAN available
  • Internal data logger
  • 2 direct contact buttons
  • Removable handgrips
  • Optional shift & clutch paddles
  • Over 2,000 ECU protocols
  • Additional CAN expansions
  • Dedicated RGB LED buttons
  • 3 configurable rotary switches
  • Configurable keys: momentary, toggle, multi-status
  • Easy configuration with Race Studio 3
  • 4.3" TFT display
  • 2 CAN available
  • Internal data logger
  • 2 direct contact buttons
  • Removable handgrips
  • Optional shift & clutch paddles
  • Over 2,000 ECU protocols
  • Additional CAN expansions
  • Dedicated RGB LED buttons
  • 3 configurable rotary switches
  • Configurable keys: momentary, toggle, multi-status
  • Easy configuration with Race Studio 3

Size & Weight

  • Dimnsions: 270 x 183.5 x 42.6 mm
  • Weight: 2,400g
  • Dimnsions: 280 x 183.5 x 42.6 mm
  • Weight: 2,400g

Waterproof

  • IP 65
  • IP 65

In The Box

  • Formula Steering Wheel 4 270
  • 22 pin Male Deutsch Connector Harness
  • Formula Steering Wheel 4 280
  • 22 pin Male Deutsch Connector Harness

Technical

  • Ambient light sensor: Yes
  • Alarm display icons: Yes, freely configurable
  • Shift Lights: 8 configurable RGB LEDs
  • Alarm LEDs: 4 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN
  • ECU compatibility: 1,000+ industry leading ECUs
  • Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD RIO02, GS Dash, Memory Module:
  • Internal memory: 4 GB
  • Body: Anodised Aluminum
  • Pushbuttons: 10 pushbuttons + 3 rotary switches (all with RGB backlights)
  • Connectors: 1 Deutsch Autosport 22 pin male connector
  • Power consumtion: 500 mA
  • Ambient light sensor: Yes
  • Alarm display icons: Yes, freely configurable
  • Shift Lights: 8 configurable RGB LEDs
  • Alarm LEDs: 4 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN
  • ECU compatibility: 1,000+ industry leading ECUs
  • Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD RIO02, GS Dash, Memory Module:
  • Internal memory: 4 GB
  • Body: Anodised Aluminum
  • Pushbuttons: 10 pushbuttons + 3 rotary switches (all with RGB backlights)
  • Connectors: 1 Deutsch Autosport 22 pin male connector
  • Power consumtion: 500 mA

Display

  • Display: 3." TFT"
  • Display Resolution: 800 x 480 pixels
  • Contrast: 800:1
  • Brightness: 800 cd/m2 - 1,100 Lumen
  • Display: 3." TFT"
  • Display Resolution: 800 x 480 pixels
  • Contrast: 800:1
  • Brightness: 800 cd/m2 - 1,100 Lumen

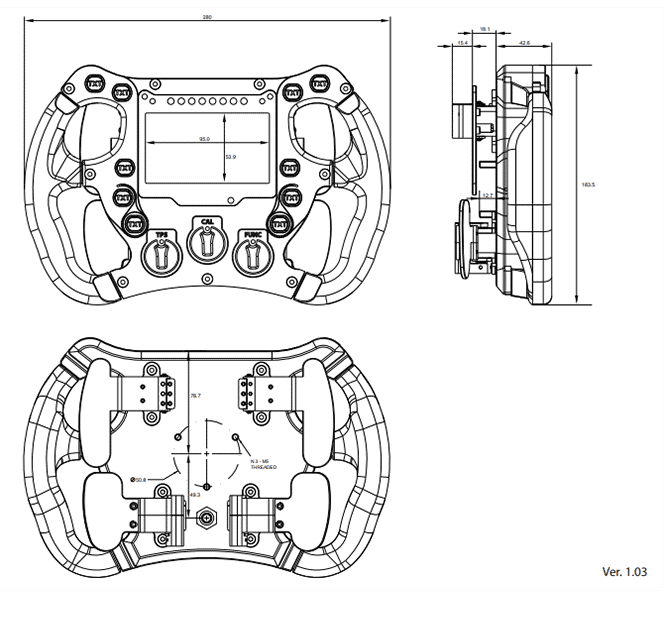

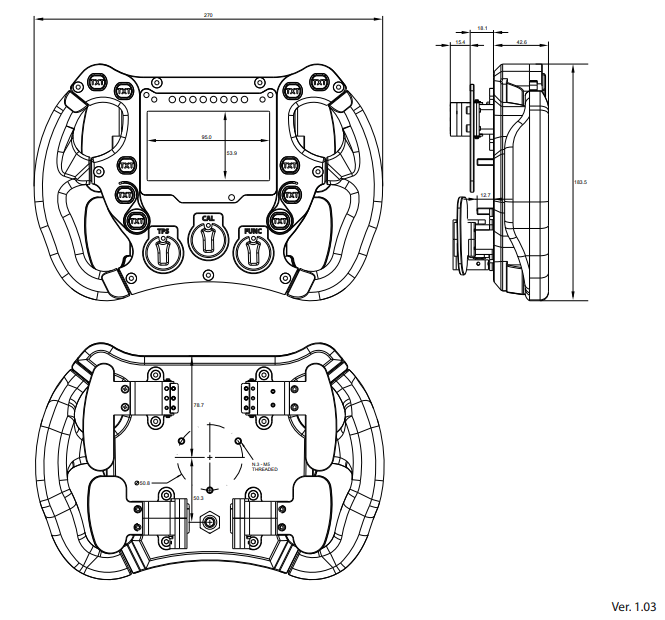

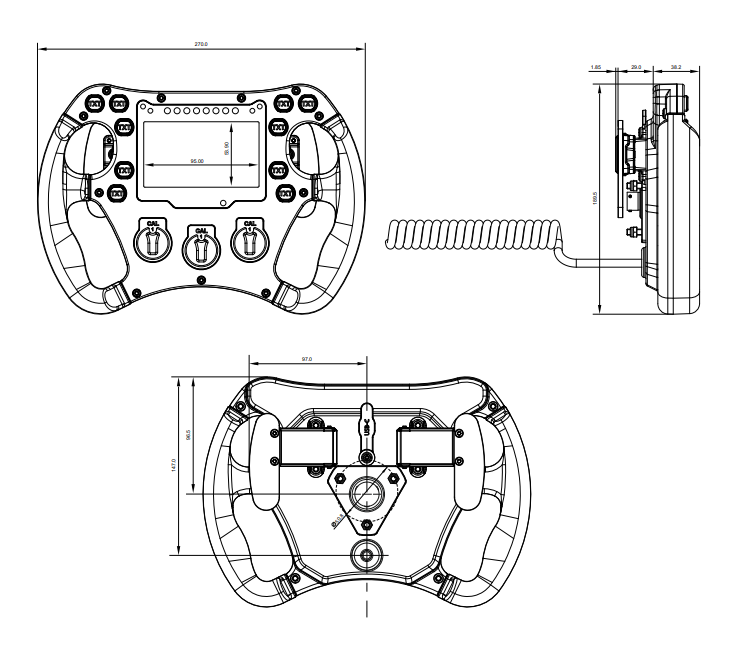

Diagram
