SW4 GT
Technical Information

Formula GT320

Formula GT350


Model

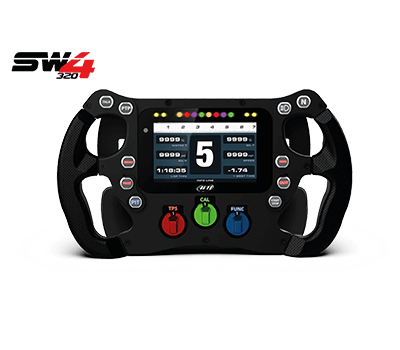

sw4 GT320 steering wheel
Formula GT320

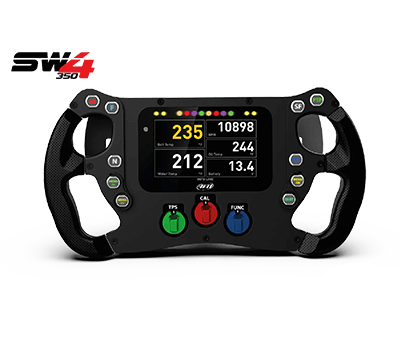

sw4 GT350 steering wheel
Formula GT350

Overview

The all-new Aim Formula Steering Wheel 4 series are our most advanced steering wheels to date. Get a closer look at our brand new design of display and functions. The Formula Steering Wheel 4 is available in four unique sizes and incorporates an internal data logger with complete configuration.

Key Features

  • 5" TFT display
  • 2 CAN available
  • Internal data logger
  • 2 direct contact buttons
  • Removable handgrips
  • Optional shift & clutch paddles
  • Over 2,000 ECU protocols
  • Additional CAN expansions
  • Dedicated RGB LED buttons
  • 3 configurable rotary switches
  • Configurable keys: momentary, toggle, multi-status
  • Easy configuration with Race Studio 3
  • 5" TFT display
  • 2 CAN available
  • Internal data logger
  • 2 direct contact buttons
  • Removable handgrips
  • Optional shift & clutch paddles
  • Over 2,000 ECU protocols
  • Additional CAN expansions
  • Dedicated RGB LED buttons
  • 3 configurable rotary switches
  • Configurable keys: momentary, toggle, multi-status
  • Easy configuration with Race Studio 3

Size & Weight

  • Dimnsions: 320 x 183.5 x 42.5 mm
  • Weight: 2,600g
  • Dimnsions: 350 x 183.5 x 42.5 mm
  • Weight: 2,600g

Waterproof

  • IP 65
  • IP 65

In The Box

  • Formula Steering Wheel 4 GT320
  • 22 pin Male Deutsch Connector Harness
  • Formula Steering Wheel 4 gt350
  • 22 pin Male Deutsch Connector Harness

Technical

  • Ambient light sensor: Yes
  • Alarm display icons: Yes, freely configurable
  • Shift Lights: 8 configurable RGB LEDs
  • Alarm LEDs: 4 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN
  • ECU compatibility: 1,000+ industry leading ECUs
  • Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD RIO02, GS Dash, Memory Module:
  • Internal memory: 4 GB
  • Body: Anodised Aluminum
  • Pushbuttons: 10 pushbuttons + 3 rotary switches (all with RGB backlights)
  • Connectors: 1 Deutsch Autosport 22 pin male connector
  • Power consumtion: 500 mA
  • Ambient light sensor: Yes
  • Alarm display icons: Yes, freely configurable
  • Shift Lights: 8 configurable RGB LEDs
  • Alarm LEDs: 4 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN
  • ECU compatibility: 1,000+ industry leading ECUs
  • Expansion CAN connection: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD RIO02, GS Dash, Memory Module:
  • Internal memory: 4 GB
  • Body: Anodised Aluminum
  • Pushbuttons: 10 pushbuttons + 3 rotary switches (all with RGB backlights)
  • Connectors: 1 Deutsch Autosport 22 pin male connector
  • Power consumtion: 500 mA

Display

  • Display: 5" TFT"
  • Display Resolution: 800 x 480 pixels
  • Contrast: 800:1
  • Brightness: 800 cd/m2 - 1,200 Lumen
  • Display: 5" TFT"
  • Display Resolution: 800 x 480 pixels
  • Contrast: 800:1
  • Brightness: 800 cd/m2 - 1,200 Lumen

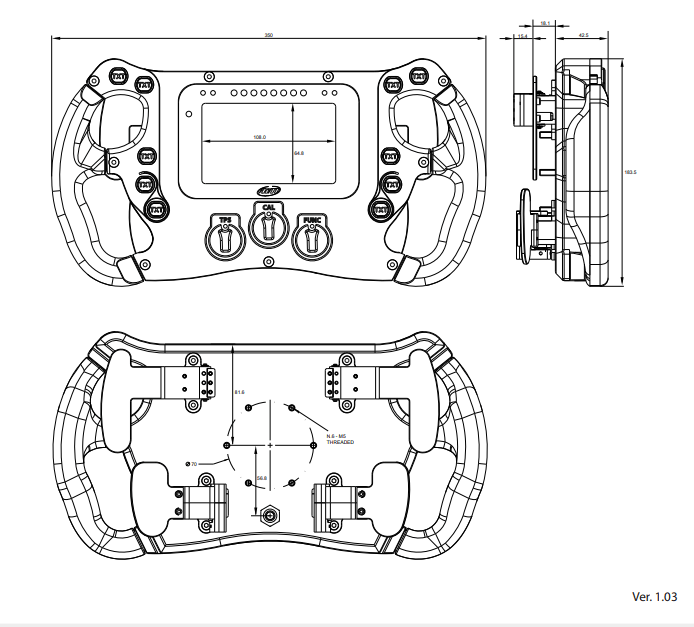

Diagram
