Model

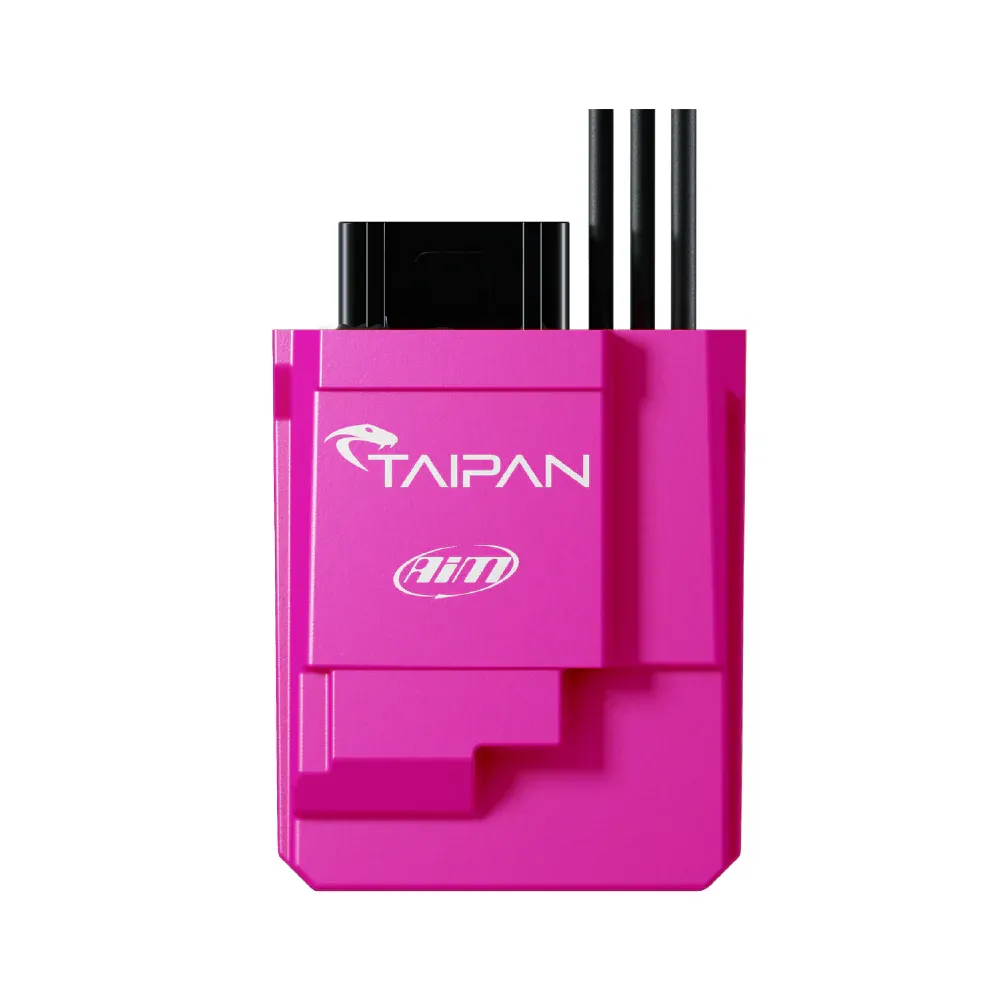

Taipan
Taipan

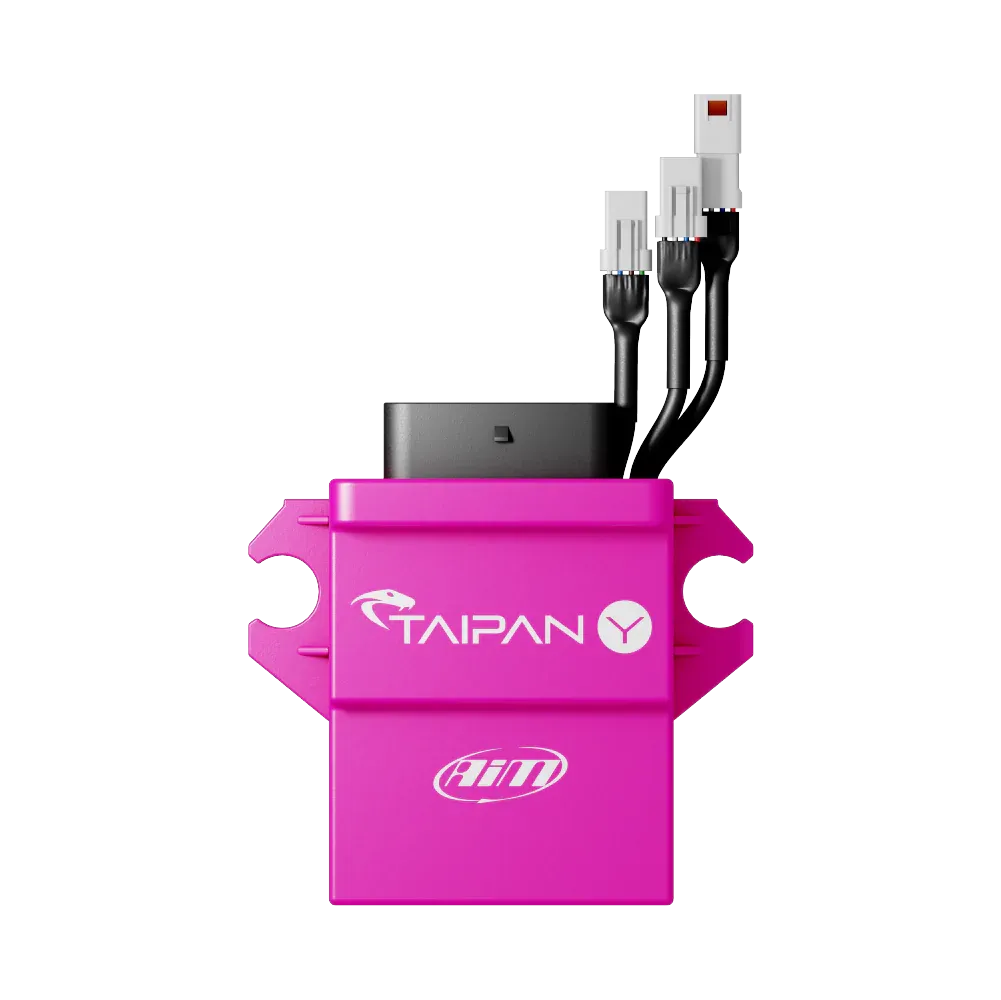

Taipan Y
Taipan Y

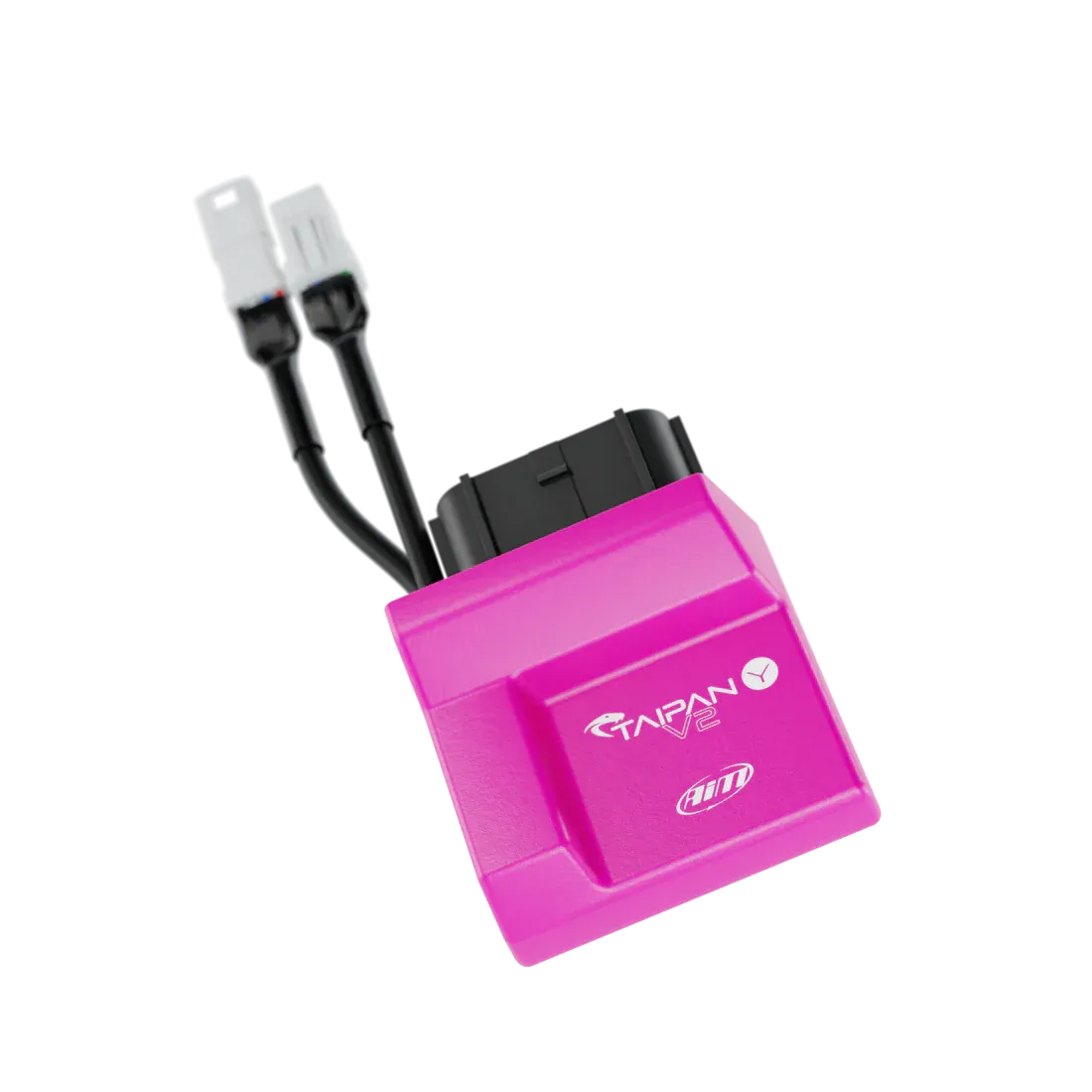

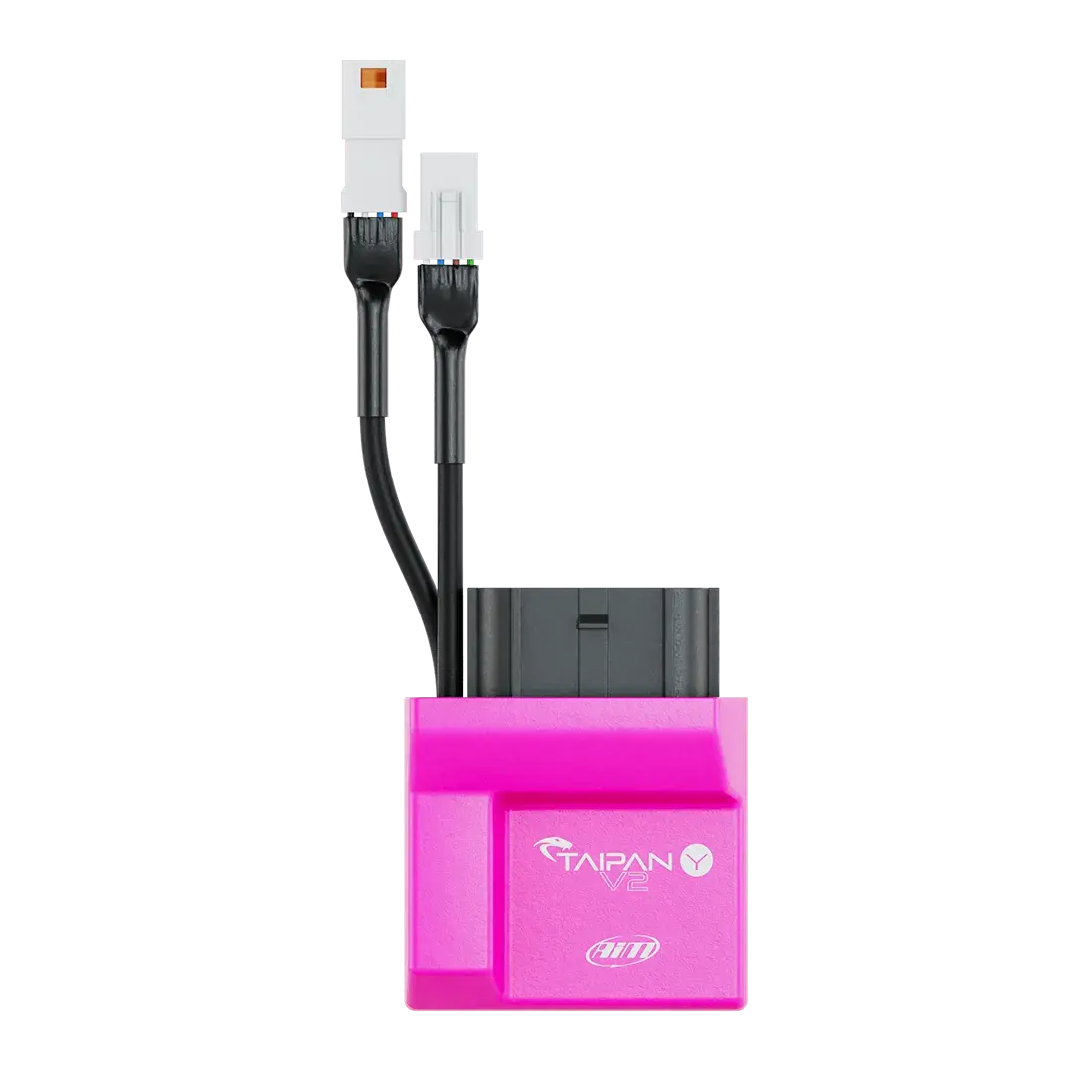

Taipan Y v2
Taipan Y v2
Taipan K
Taipan K
Overview
Taipan, Taipan Y, and our brand new variant Taipan Y V2, are the aftermarket plug & play ECUs created by Aim, exclusively designed for off-road bikes.
Thanks to their high technology 32-bit core, they represent an important step forward to improve the performances of your bikes, without sacrificing reliability and smoothness
Thanks to their high technology 32-bit core, they represent an important step forward to improve the performances of your bikes, without sacrificing reliability and smoothness
Technical
- Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
- Second injector driver for high impedance saturated injectors (12Ω)
- One low side driver (1A)
- Two CAN bus, one for calibration purposes, one for expansions (Aim handlebar switch, dataloggers, dash ecc.)
- Three JST JWPF waterproof auxiliary connector
- Power consumption: 150 mA
- Connectors: n.1 JST 04T-JWPF-VSLE-S Connector
- Connectors: n.1 JST 08R-JWPF-VSLE-D Connector
- Connectors: n.1 JST 04R-JWPF-VSLE-S Connector
- Connectors: n.1 33 pin male Connecto
- Body: PA6 + 30% glass
- Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
- Second injector driver for high impedance saturated injectors (12Ω)
- One low side driver (1A)
- Two CAN bus, one for calibration purposes, one for expansions (Aim handlebar switch, dataloggers, dash ecc.)
- Three JST JWPF waterproof auxiliary connector
- Power consumption: 150 mA
- Connectors: n.1 JST 04T-JWPF-VSLE-S Connector
- Connectors: n.1 JST 08R-JWPF-VSLE-D Connector
- Connectors: n.1 JST 04R-JWPF-VSLE-S Connector
- Connectors: n.1 33 pin male Connecto
- Body: PA6 + 30% glass
- Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
- Second injector driver for high impedance saturated injectors (12Ω)
- One low side driver (1A)
- One CAN bus, one for calibration purposes
- Two JST JWPF waterproof auxiliary connector
- Power consumption: 150 mA
- Connectors: n.1 JST 04T-JWPF-VSLE-S Connector
- Connectors: n.1 JST 08R-JWPF-VSLE-D Connector
- Connectors: n.1 39 pin male Connecto
- Body: PA6 + 30% glass
- Two 0-5V analogue inputs sampled @ 1,000 Hz each, could be alternatively used as switch to ground
- Second injector driver for high impedance saturated injectors (12Ω)
- One low side driver (1A)
- One CAN bus, one for calibration purposes
- Two JST JWPF waterproof auxiliary connector
- Power consumption: 150 mA
- Connectors: n.1 JST 04T-JWPF-VSLE-S Connector
- Connectors: n.1 JST 08R-JWPF-VSLE-D Connector
- Connectors: 1 64 pin male Connector
- Body: PA6 + 30% glass + EPDM Cover
Size & Weight

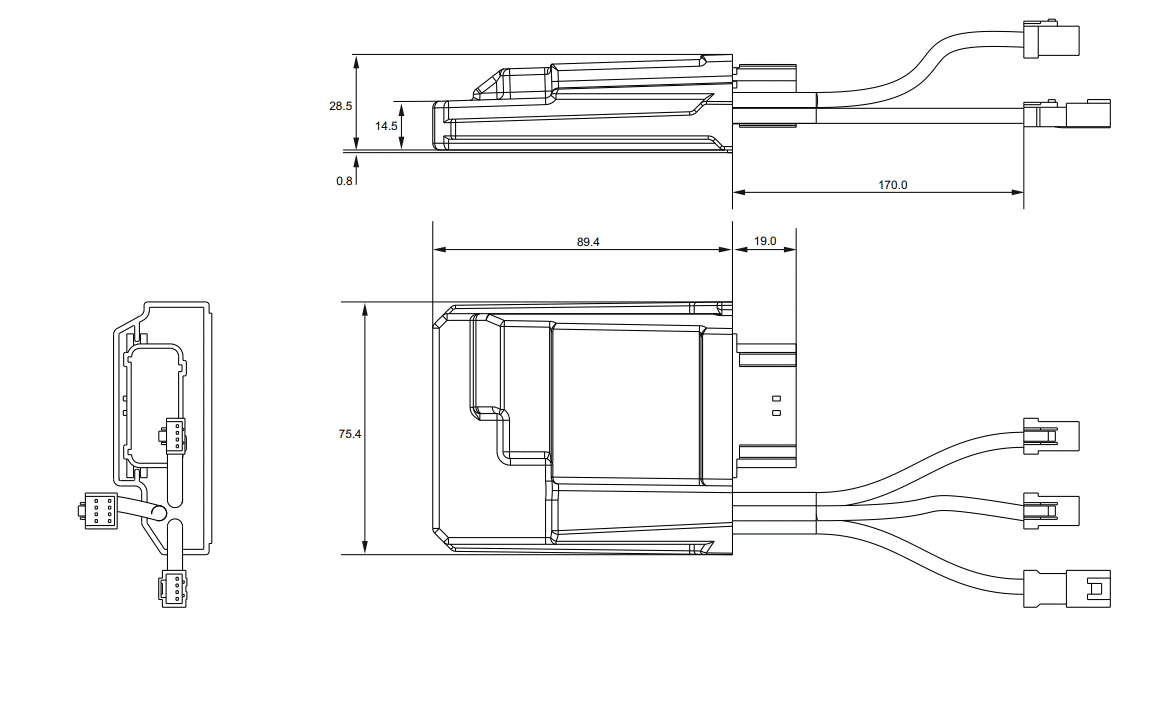

- Dimensions: 89.4x75.4x29.3 mm
- Weight: 260 g

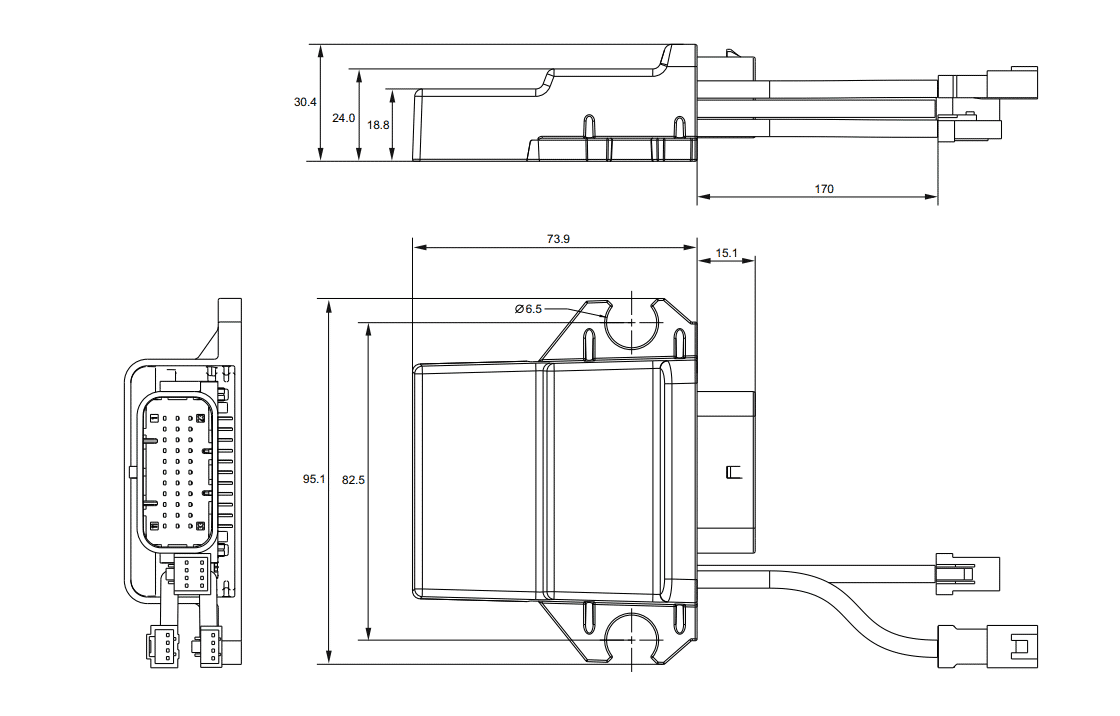

- Dimensions: 73.9x95.1x30.4 mm
- Weight: 230g

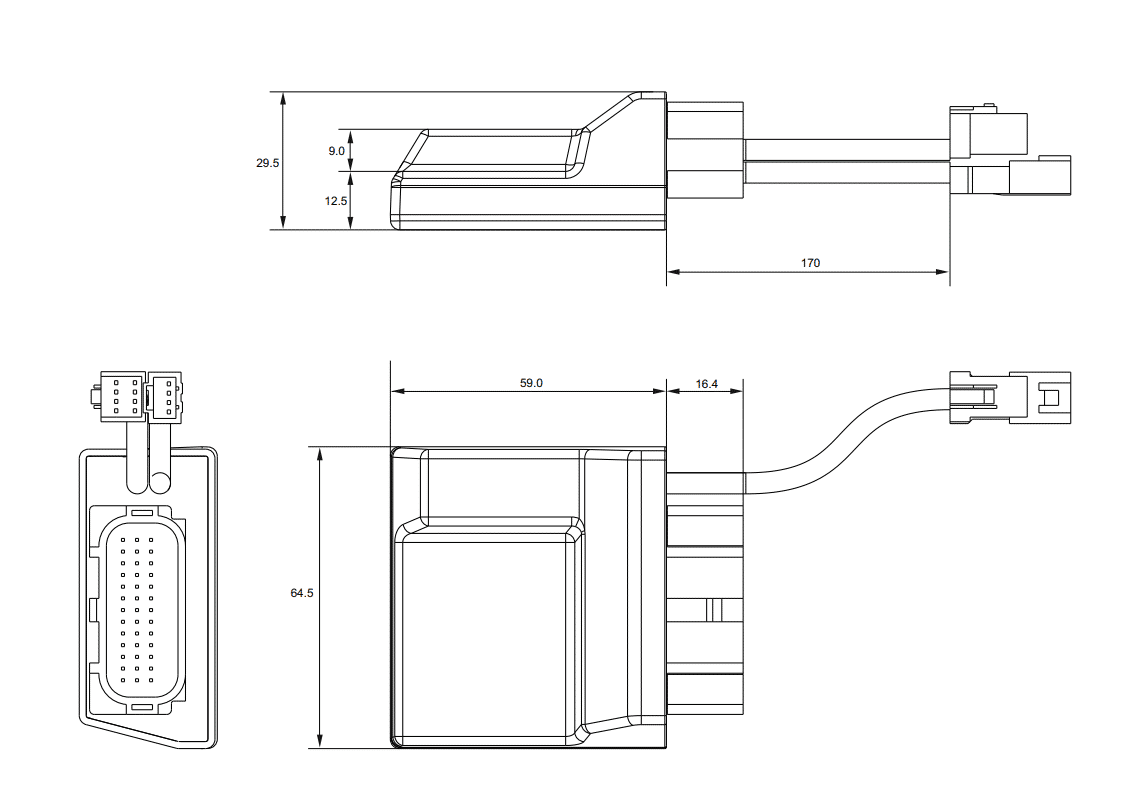

- Dimensions: 64.5x59x29.5 mm
- Weight: 150g
- Dimensions: 112 x 100 x 40.8mm
- Weight: 390g
Waterproof
- IP67
- IP67
- IP67
- IP67
In the box
- ECU Taipan Control Unit
- ECU Taipan Y Control Unit
- ECU Taipan Y v2 Control Unit

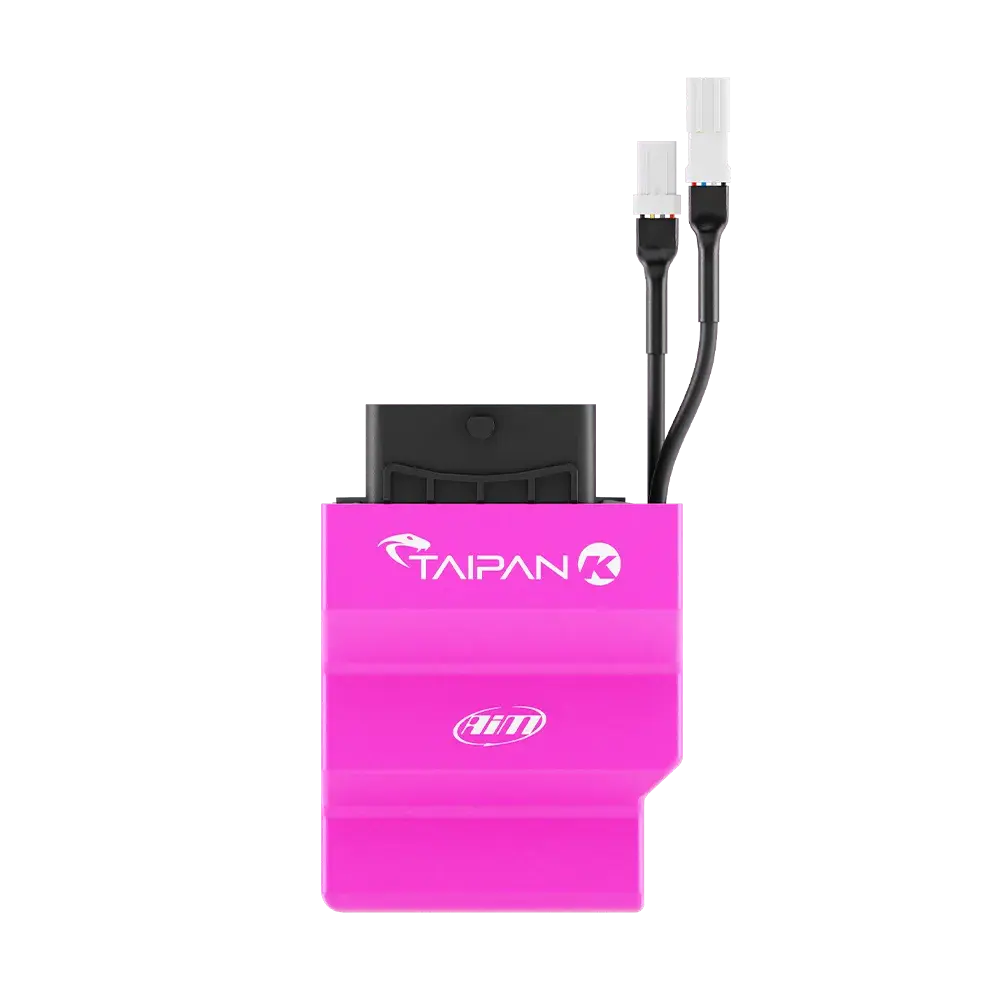

- ECU Taipan K Control Unit

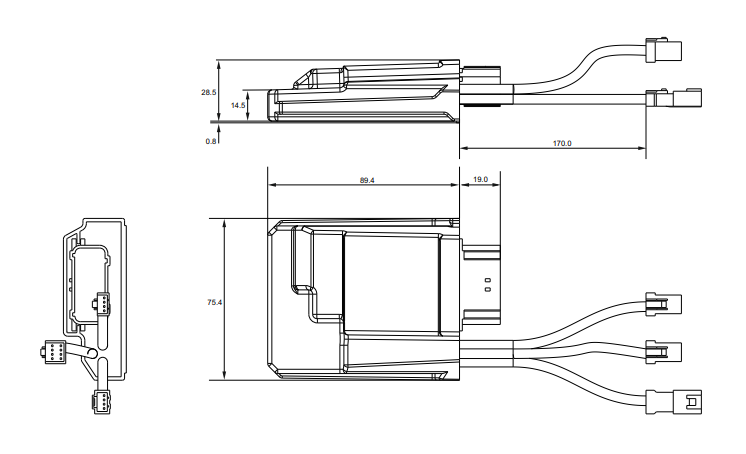

Diagram
×
![]()
