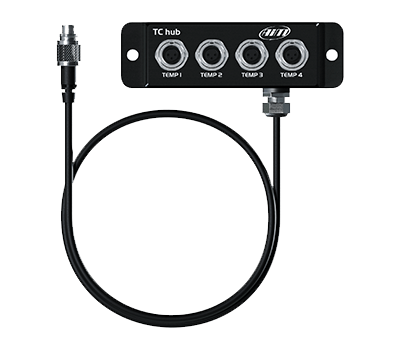

TC Hub
Technical Information
Model
TC Hub
Overview

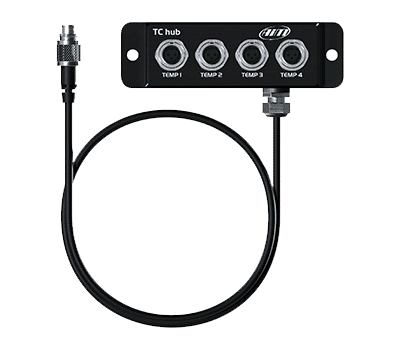

The Aim TC Hub is an external expansion module that allows you to increase the number of thermocouples to add to an Aim logger.
Key Features
- Configurable up to 50Hz per channel
- Simplify your wiring
- Enhance your logger performance
- 5 pin Binder 712 male connector
Waterproof
- IP 65
In The Box
- 1 x TC Hub
Technical
- Outputs: Four temperture outputs 3 pin Binder 712
- Cable length: 150mm
- Connector: 5 pin Binder 712 male connector

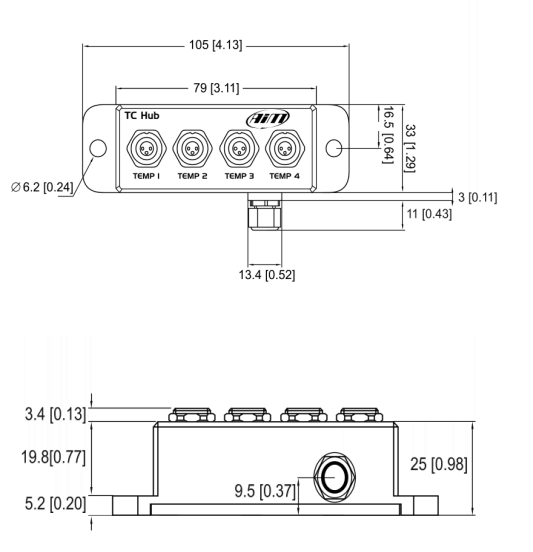

Diagram
