TRACK DAY KIT
Technical Information

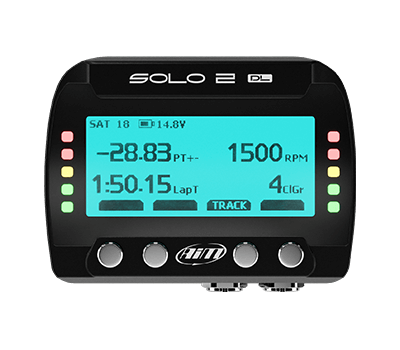

Solo 2 DL

SmartyCam 3 Sport

Model

track day kit
Solo 2 DL
solo 2 DL
SmartyCam 3 Sport

Overview

Aim Technologies Solo 2 DL Lap Timer and data logger has predictive, theoretical and delta lap times, and complete data recall and download for analysis.
Full HD recording. Crystal Clear Video. TFT Colour display. Automatic Start/Stop. Real-time overlay videos. Configurable. Choice of lens and can cable. Wave & Wobble eliminated. Waterproof.

Key Features

  • 4GB Internal Memory
  • Database with Over 4000 Tracks worldwide
  • Automatic Track Recognition
  • Integrated GPS
  • Multiple Race Modes: Speed, Times & Performance
  • Ten Configurable RGB LEDs
  • Wi-fi Connectability
  • GLONASS Receiver
  • Direct ECU Data Logging
  • Predictive Lap Timing
  • Up to 8 Configurable Displays
  • 7 Coloured Backlight Choices
  • Choice of Connection
  • Wide Global SHutter with a CMOS Sensor
  • Graphical Display
  • Full HD Images
  • Auto Start/Stop Recording
  • Durable & Waterproof
  • Automatic Track Selection
  • Sapphire Frontal Glass
  • Video & Data All in One Place
  • AutoMatic Data & Video Synchronisation

Size & Weight

  • Dimnsions: 98.0 x 73.7 x 30.2mm
  • Weight: 249g, battery included
  • Dimnsions: 79.9 x 54 x 46.5mm
  • Weight: 200g, battery included

Waterproof

  • IP 67
  • IP 65

In The Box

  • Solo 2 DL
  • OBDII Connection Cable
  • UK Adaptor 12v power for Solo 2 DL
  • Solo 2 Mounting Bracket
  • SmartyCam 3 Sport
  • CAN Connection Cable
  • Suction Cup Mount
  • UK Adaptor 12v power for SmartyCam
  • Aim Sticker

Technical

  • Inertial Platform Internal 3 axis +5G accelerometer + 3 axis gyro +3 axis magnetometer
  • Wi-Fi Connection: Yes
  • GPS: 10 Hz
  • External Power: 12 V
  • Connectors: 1 socket (binder) 712, 5 pins, 1 socket (binder) 712, 8 pins
  • Memory: 4 GB
  • Battery Type: Rechargeable Lithum
  • Pushbuttons: Metallic
  • ECU Connection: CAN, RS23 or K-Line to thousands of industry-leading ECUs
  • Video format: H.264 1920 x1080 pixels @ 30 fps
  • Lens: Low distortion camera lens
  • CMOS sensor: Global Shutter
  • Field of view: 67° or 84°
  • Internal battery: Rechargeable lithium battery
  • External power: 9-15 Volt
  • Support microSD car: Up to 2TB
  • Connectors: 1 Binder 712 female
  • Usage temperatures: -10°C/+50°C
  • Auto power ON/OFF: Yes
  • Auto Start/Stop Recording: Yes

Display

  • Display: Graphical
  • Display Resolution: 238 x 99 pixels
  • Display Pages: Up to 5 freely configurable
  • Backlight: 7 configurable RGB colours
  • Shift Lights/Alarm LEDs: 10 configurable RGB LEDs
  • Display resolution: 128 x 128 pixels

Integrated Track Database

  • Over 4,000 Worldwide

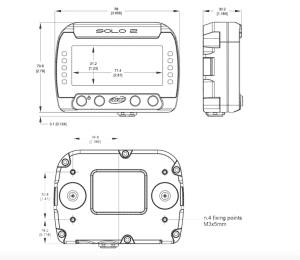

Diagram
