X Log
Technical Information
Model
X Log
Overview

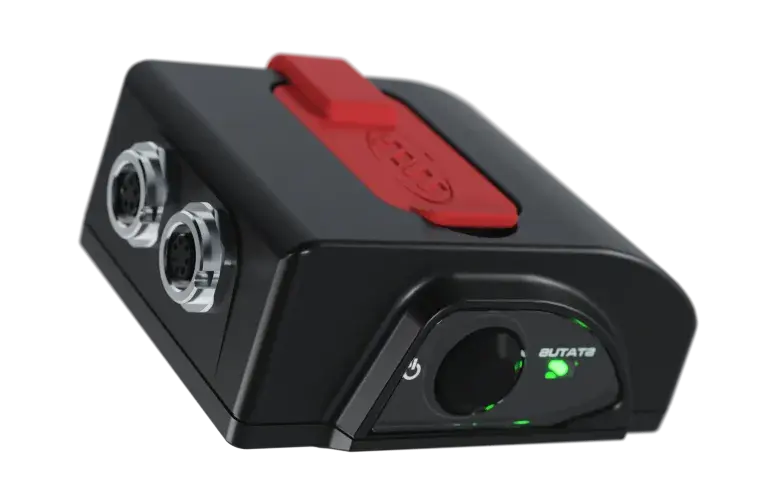

X Log is an extremely powerful and compact data logger
Key Features
- Integrated Wifi and bluetooth
- Long lasting lithium battery and connection for an external 8-16V battery
- Only 60g in weight
Size & Weight
- Dimnesions: 74.8 x 6.4 x 31.1 mm
- Weight: 60g
Waterproof
- IP 67
In The Box
- X Log
- Aim Sticker
Technical
- Inertia platform: 100 Hz 6 axis
- GPS: 25 Hz
- Wifi: Built in
- Blootooth: Built in
- ECU Connections: CAN, RS232 or K-Line to 1,000 + Industry leading ECUs
- RPM input: 1
- Push button: 1
- Status LED: 1
- External Power: 0-15 V
- Connectors: 5 pins binder 712, 7 pins binder 712, USB Type-C
- Memory: 4GB internal + removable USB Type-C key
- Battery: Rechargeable lithium
- Material: PA6 + 30% glass fibre reinforced
