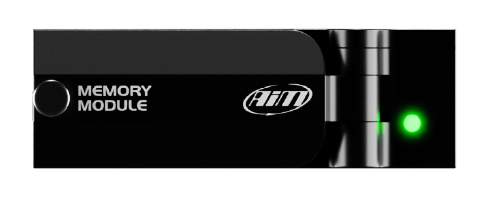

Aim Memory Module

Massive Data Storage for Aim Data Loggers

Aim Memory Module peripherals

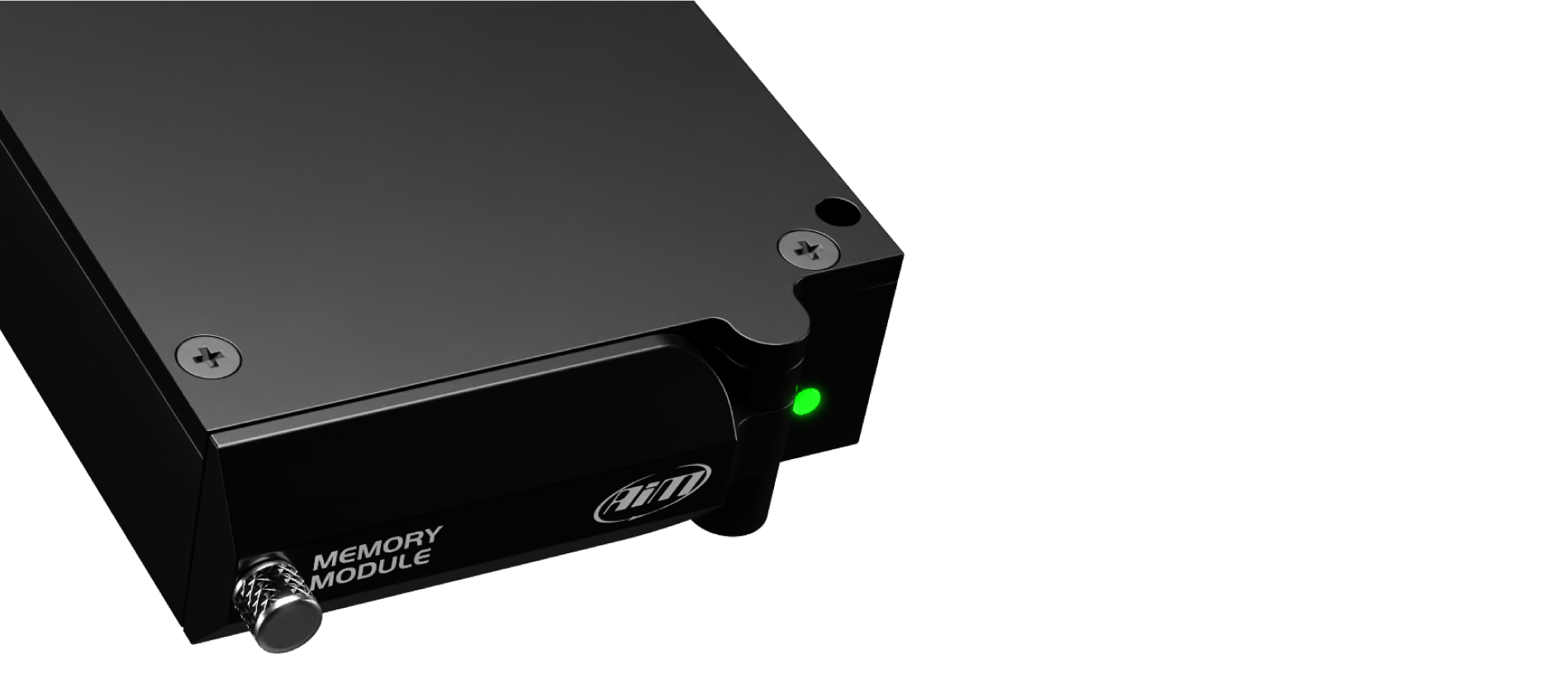

Memory Module is a small SD Card holder that can be connected via CAN bus to these Aim loggers in order to record the data during your tests.

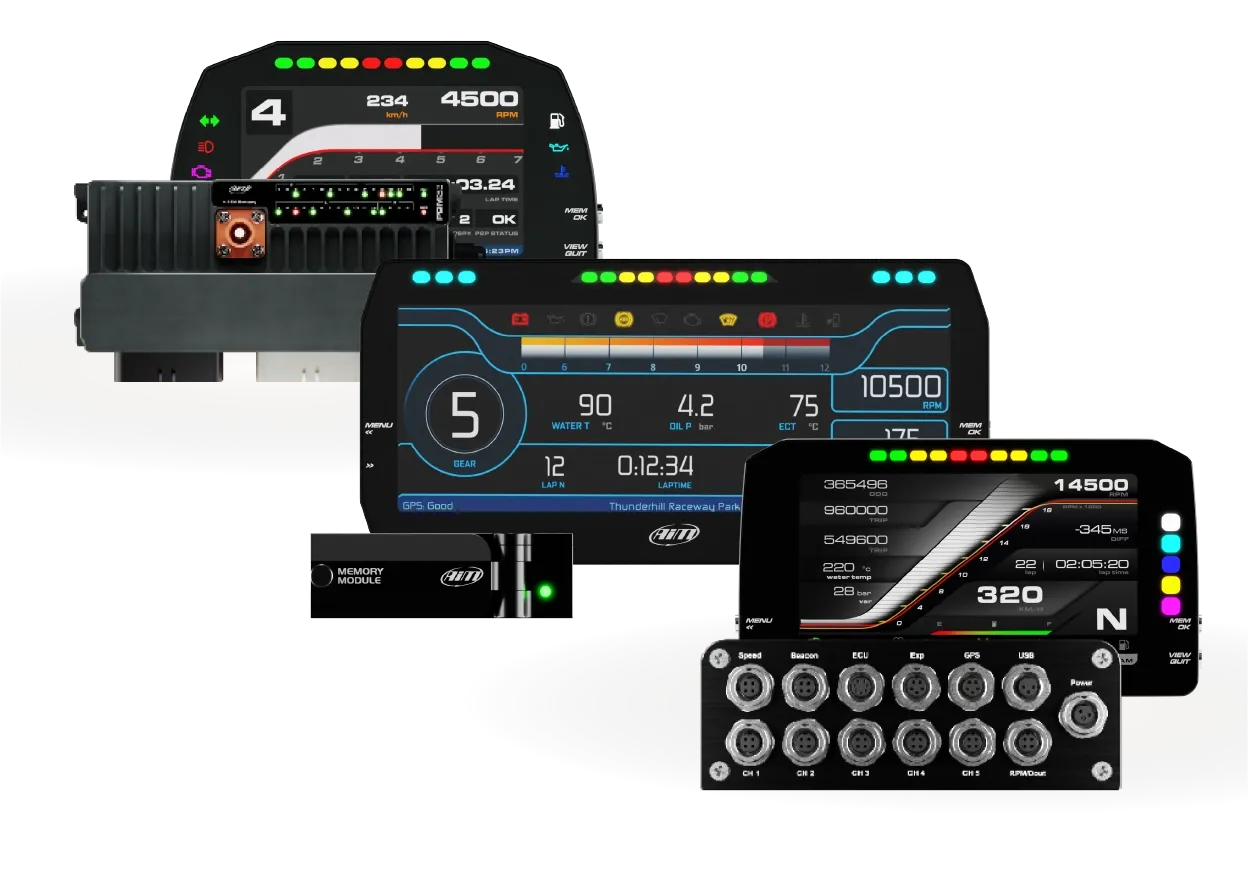

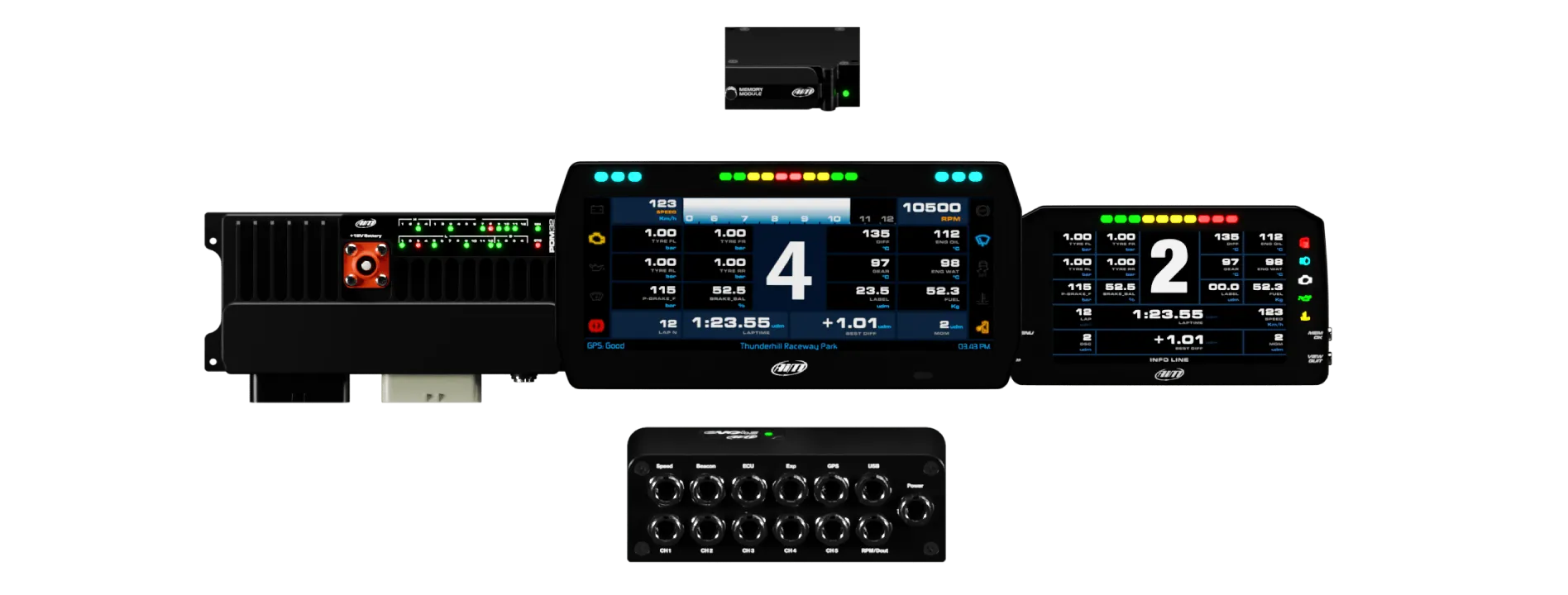

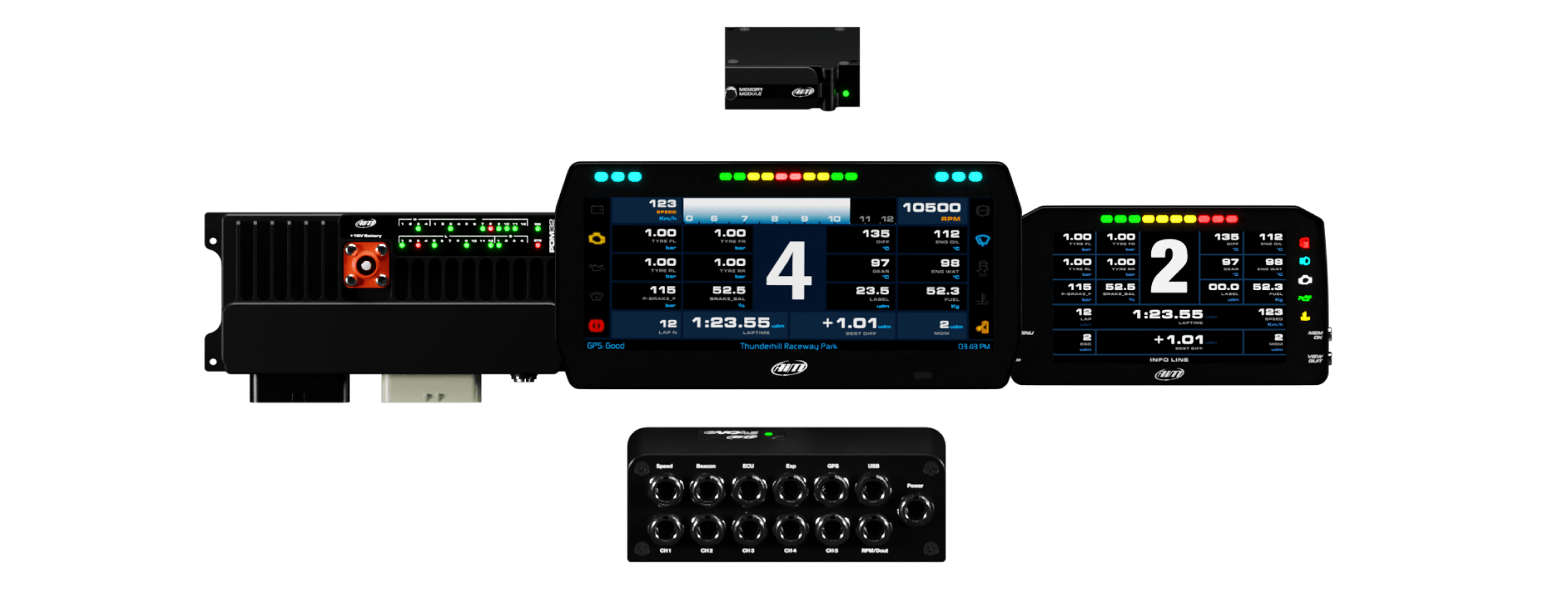

Memory Module is a small SD Card holder that can be connected via CAN bus to these AiM loggers

The Aim Memory Module management is really very simple. Just connect the Module to your logger and the data will be saved simultaneously both in the logger and on the SD Card. No configuration is needed.

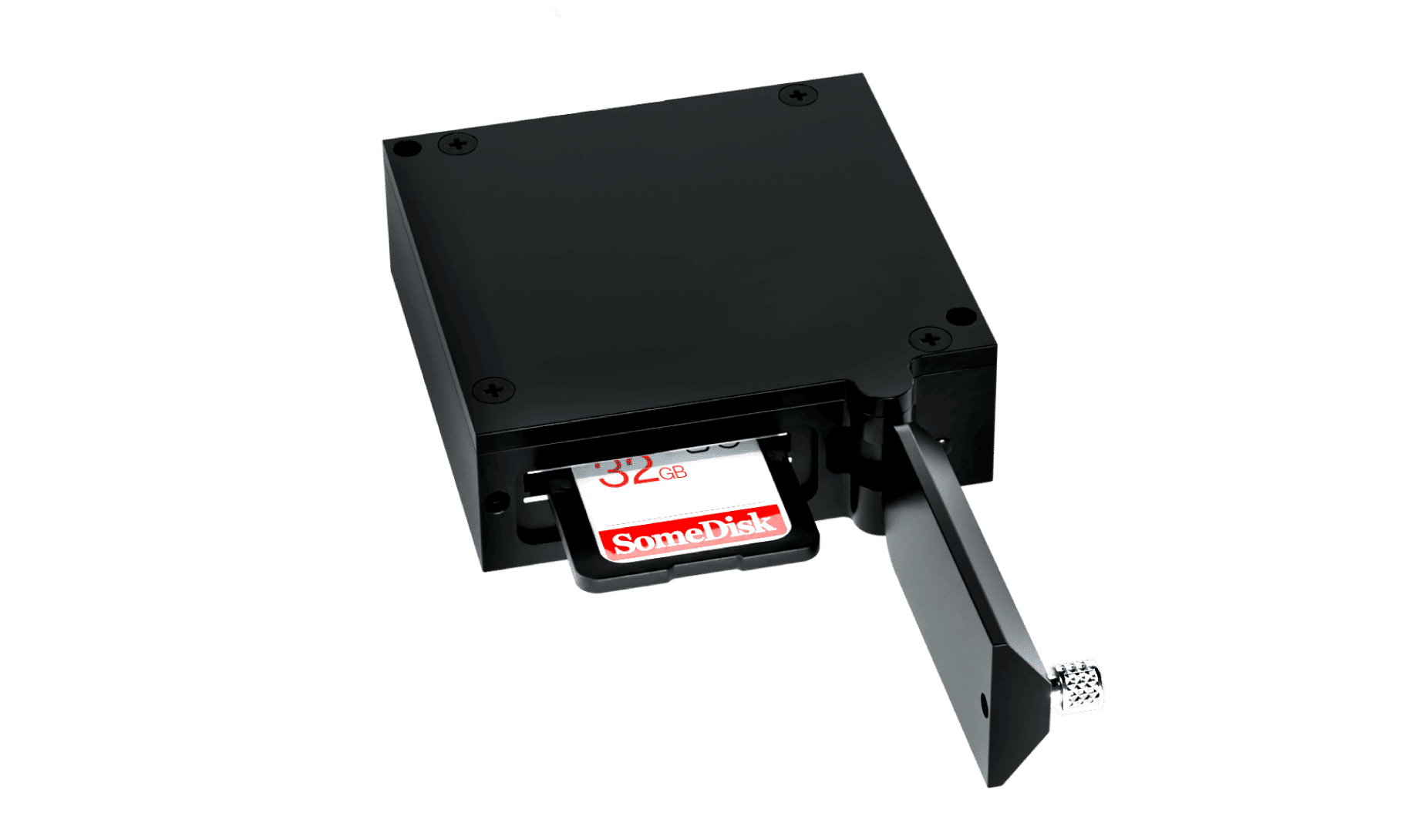

The SD card can be removed and replaced even during pit stops, while the car engine is still ON, making it extremely fast to get the data during endurance races or long tests, when the time at the paddock is really limited.

When the session is over, all you need to do is moving the SD card from the Module to your PC and download the data using Race Studio 3.

The Module features a front LED showing its recording/fw updating status. The kit includes a 4 Gb SD card and the device can support up to 128 Gb cards.

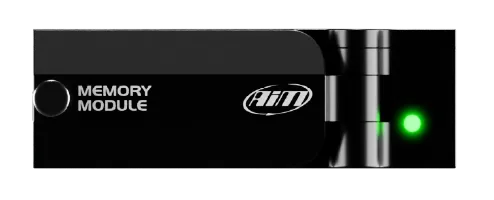

Memory Module LED
In The Box

Memory Module with 4 GB SD Card.

Technical Specs

Max power consumption : 50 mA
Cable length : 40 cm
SD Card : 4 GB (in the kit); it supports up to 128 GB
Dimensions : 55.5×78.3×18 mm
Weight : 103 g
Waterproof : IP65

Memory Module Technical Drawing
