Memory Module
Technical Information
Model
Memory Module
Overview

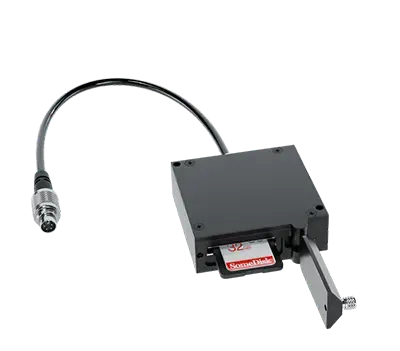

The Aim Memory Module is a small SD Card holder connected via CAN bus to the MXL2, MXS, MXP, MXG dashes, also suitable for the EVO4S EVO5 data loggers.
Size & Weight
- Dimensions: 55.5 x 78.3 x 18mm
- Weight: 103g
Waterproof
- IP 65
In The Box
- 1 x Memory Module (SD Card not included)
Technical
- Max power consumption: 50 mA
- Cable length: 40cm
- SF card: Memory module supports up to 32GB (not included)
- Connector: Binder connector 712 5 pin male
Compatibility
- MXL2, MXG, MXS, EVO4S, EVO5, MXS 1.2, MXP, MXG 1.2, MXS 1.2 Strada, MXP Strada, MXG 1.2 Strada, MXsl, MXm, Solo 2, Solo 2 DL

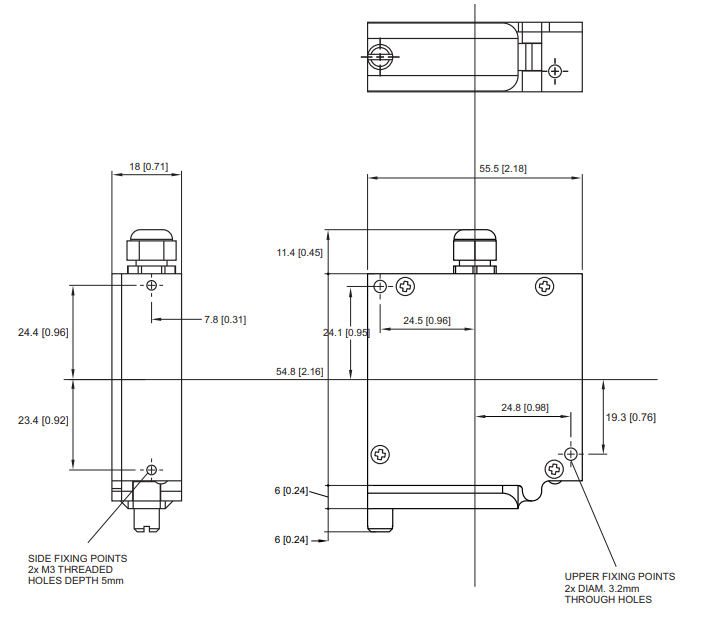

Diagram
