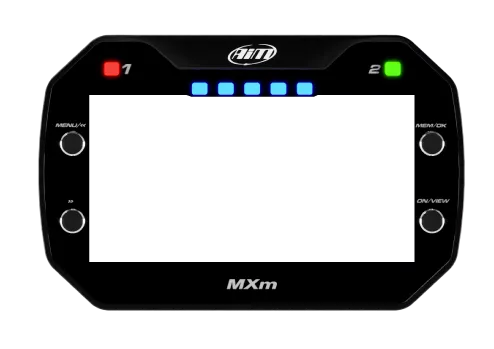

Aim MXm Legends
Compact Data Logger
Designed for Legends Cars years 2018 onwards with a 3-cylinder Yamaha FZ09 engine.
The Data Logger
For Tight Squeezes
The Aim MXm Legends dash logger delivers crucial racing data like speed, lap times, RPM, and gear selection, enhanced with multiple math channels. Its compact design fits easily in any car or bike, offering plug-and-play simplicity. Ideal for both professional and amateur racers, the MXm seamlessly integrates detailed performance tracking in a user-friendly format.
-
GPS09
The GPS Module included in the kit is connected via CAN and makes lap time calculation and track position analysis easy, it locates position, identifies track line coordinates and starts immediately sampling lap and split times
-
ECU Connection
You can configure the dash to show all the information coming from the ECU, analogue/digital inputs, predefined math channels and an optional GPS Module
-
Analogue/Digital Inputs
The MXm Legends Dash has 4 analogue and 2 digital inputs, performance and data acquired can also be incremented by adding expansion modules
-
LED Alarms
You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities
-
Math Channels
Sampled data depends on the actual ECU, but will typically include RPM, throttle position, (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio)
-
Second CAN
With CAN Output you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities
4GB
Memory
IP65 Rated
An all-weather capable GPS device, designed to function in the wettest or driest conditions
No Fuss,
No Worry
Constantly Logging Your Data
The Aim MXm Legends offers comprehensive data display and logging capabilities directly from your vehicle

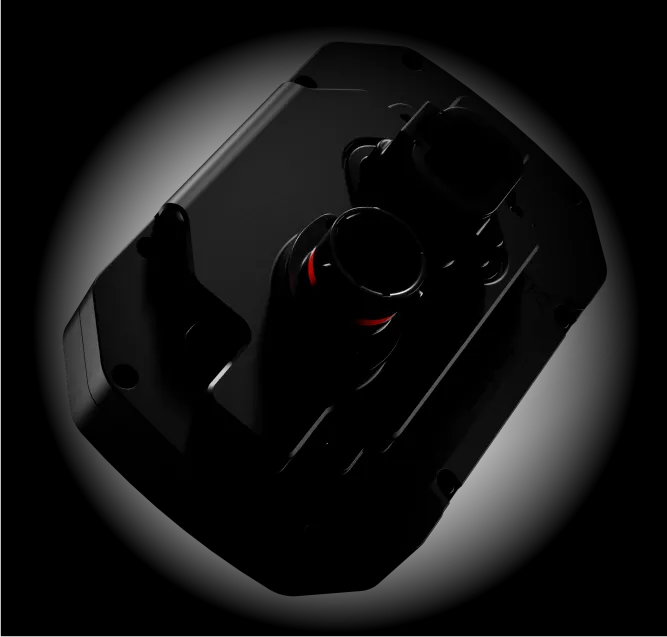

Idestructible Chassis
Made from glass fibre reinforced nylon
Choose What
Works For You
Flexible Alarms
Customise your RGB alarm LEDs, choosing colour and conditions to match your preferences. Set alarms with a variety of flashing options and prioritise them as you see fit
Back light
Choose out of seven colours

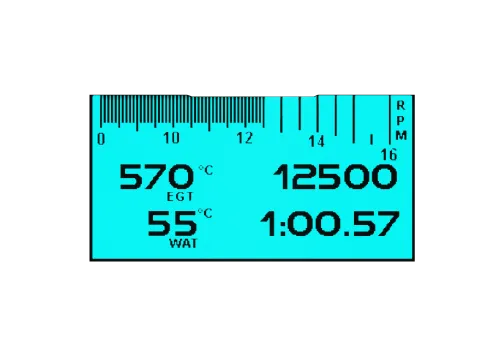

Pre-Configured
Pages
Toggle through multiple data display layouts and choose how you like to see your data
Data Recall
At the end of your test, quickly review all the key information on your display
Two Power Outputs
The MXm Legends is equipped with two power outputs, each capable of handling up to 15 A. These outputs can be programmed to activate or deactivate based on the readings from analogue or digital inputs. This functionality allows for automatic control of external systems, such as turning additional lights on or off, activating a cooling fan, or operating circulation pumps in response to specific conditions or events.
Transfer Data Fast
Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.
Learn More
Now Sampling at 25Hz,
showing Delta times and more...
All you need to know about how your data works
Learn More
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.
Expand
Your System
Enhance the functionality, performance and reliability of your Aim MXm Legends with our range of expansions designed to increase the range and depth of data collection and analysis.
