Next Generation Motorsport Action Camera

Packed with all the things you want in an action camera

Real Time Data Overlay

Your recorded sessions with the most important data in overlay.
Automatic Start & Stop

No need to think about the camera while you are ready at the starting line.
ECU Connection

A wide number of supported ECUs.
Full Internal Data Logger

Your USB-C drive contains all the information you need for data analysis.
12 MP Sensor

New Sony CMOS sensor with dedicated chip and LSI stabilisation for superior video quality.
For the Extreme

Sapphire glass and CNC machined aluminium body to face the most extreme conditions.

The Best Motorsport Action Camera

The SmartyCam 4 Series introduces major upgrades in image quality, connectivity, and usability, making it one of the most capable motorsport cameras available today.

IP65

Rated Waterproof

Sapphire

Frontal Glass

Coated

Aluminium

260g

Weight

Compact Motorsport Optics

Rectilinear Lens

Our Smoothest Recording Yet

1920×1080 FHD

Crystal-Clear Quality

85° FOV Lens

Balanced Track Visibility and Driver Focus

LSI Stabiliser

Professional-grade precision

12MP Sony CMOS Sensor

Featuring a cutting-edge 12MP Sony CMOS sensor paired with a powerful dedicated ISP processing chip, the SmartyCam 4 Corsa provides exceptionally sharp footage, richer and more accurate colours, and outstanding performance in every lighting condition, capturing every detail with professional-grade precision.

Engineered for Motorsport

Engineered to survive extreme racing conditions with uncompromising reliability

Designed for the Extreme -

Guaranteeing you great resistance against the extreme conditions of racing and against the most adverse weather.

SmartyCam 4 cameras are IP65 waterproof and are made with CNC billet aluminium with sapphire frontal glass for complete protection.

SmartyCam 4 Configuration -

With RaceStudio 3 software you can configure your overlays as you wish: add your logo and the track map and choose your graphic elements from a list of pre-determined sets with same layout or even single objects from different sets.

Your videos will be truly "yours" in all details, from the data to their graphic layout.

Automatic Track Recognition & Lap Analysis -

The SmartyCam 4 Corsa can automatically recognise which track you’re on and begin mapping - if a track is not listed, custom tracks can be created using Aim's Race Studio software.

After each session, footage can be split into individual laps for detailed review and direct comparison against previous sessions, teammates, or benchmark laps.

Brand-New Race Studio 3 App -

All camera settings including framing, frame rate, image flip and more, can be easily adjusted right from your smartphone, providing precise control for any track or condition.

Data analysis remains one of the most effective ways to improve lap times and vehicle reliability. By combining onboard video with telemetry, the SmartyCam 4 Corsa helps you identify faster and slower sectors, braking and throttle points, gear selection errors, chassis balance issues, engine warnings or pressure drops, and consistency across multiple laps.

Compatible With Various Aim Devices

The SmartyCam 4 Corsa can easily integrate with Aim devices like the Solo 2 DL data logger, GPS09 module and data hub to create a fully synchronised motorsport setup that captures, logs and overlays important aspects of your vehicle’s performance to enhance real time driving and post-race analysis.

Sensors

Integrates cleanly with Aim displays, loggers, and control modules to deliver consistent, high-quality data.

Lap Timing

Delivers precise, lap/session timing data that anchors the rest of the system’s performance analysis.

Displays & Display Loggers

Presents real-time vehicle information through a unified interface that consolidates multiple data sources.

Cameras

Aligns high-quality video with telemetry inputs to create a fully synchronised performance record.

Cables & Accessories

Provides the physical and electrical pathways that maintain stable communication and reliable system operation.

Sensors & Expansions

Extends the platform’s measurement capabilities by adding specialised channels and advanced acquisition modules.

Cameras

Aligns high-quality video with telemetry inputs to create a fully synchronised performance record.

Lap Timing

Delivers precise lap and session timing data that anchors the rest of the system’s performance analysis.

Displays & Display Loggers

Presents real-time vehicle information through a unified interface that consolidates multiple data sources.

Cables & Accessories

Provides the physical and electrical pathways that maintain stable communication and reliable system operation.

Sensors & Expansions

Extends the platform’s measurement capabilities by adding specialised channels and advanced acquisition modules.

Sensors

Integrates cleanly with Aim displays, loggers, and control modules to deliver consistent, high-quality data.

Mounting
Brackets

Provide easy installation for cars, motorbikes, off-road & drag racing setups

Find out more

"If you can’t explain it simply, you dont understand it well enough.”
Albert Einstein

One of the many reasons that the SmartyCam 4 Corsa is regarded as one of the best onboard action cameras in the motorsport industry is due to its easy configuration and integration with Race Studio 3 software. With a few easy to follow steps, you can:

Configure graphical overlays for data
Create custom tracks if necessary (the camera automatically recognises the track you’re racing on from a database of 4,000+ tracks)
Analyse, review and compare performance data
Customise layouts for performance metrics

Paul — Fri, 08 May 2026 08:00:12 +0000

EVO6 Series

Tech Specs

The Standard in Motorsport Telemetry

Data logging engineered for those chasing every millisecond

Advanced Data Acquisition

Multi-source capture from ECU, sensors, GPS & inertial platforms

High-speed analogue inputs up to 2000 Hz

100 Hz 3-axis accelerometer + gyro for motion analysis

Connectivity with 2,000+ ECUs via CAN, RS232, K-Line

Fast wireless setup, updates & data transfer

Engineered for Motorsport

Engineered to survive extreme racing conditions with uncompromising reliability

Rugged Construction

Rugged anodised aluminium, IP67 sealing, vibration‑rated for harsh motorsport environments.

Flexible Memory Options

128 GB SD logging (EVO6) or 4 GB integrated flash storage (EVO6L).

Clean, Efficient Installation

Autosport or Binder 712 connectors provide secure, motorsport‑grade wiring with minimal bulk.

Pick the Logger That Fits Your Build

Ideal for compact installs and streamlined wiring.

Perfect for high‑channel, high‑complexity systems.

Two Ways to Race Smarter

Compare the EVO6 and EVO6L data loggers to find the right balance of inputs, connectivity, and packaging.

A high-capacity platform built for larger systems and expanded I/O demands.

8 analogue inputs

Dual CAN connectivity

SD card logging with internal storage

Autosport connectors

Suited for high-channel, high-complexity builds

A compact, streamlined unit designed for simple installs and minimal wiring.

5 analogue inputs

Single CAN connectivity

Integrated internal memory

Binder 712 connectors

Ideal for tight spaces and simplified wiring

One Connected Motorsport System

Designed to communicate, configure and perform as one unified system

Sensors

Integrates cleanly with Aim displays, loggers, and control modules to deliver consistent, high-quality data.

Lap Timing

Delivers precise, lap/session timing data that anchors the rest of the system’s performance analysis.

Displays & Display Loggers

Presents real-time vehicle information through a unified interface that consolidates multiple data sources.

Cameras

Aligns high-quality video with telemetry inputs to create a fully synchronised performance record.

Cables & Accessories

Provides the physical and electrical pathways that maintain stable communication and reliable system operation.

Sensors & Expansions

Extends the platform’s measurement capabilities by adding specialised channels and advanced acquisition modules.

Displays & Display Loggers

Presents real-time vehicle information through a unified interface that consolidates multiple data sources.

Lap Timing

Delivers precise lap and session timing data that anchors the rest of the system’s performance analysis.

Cameras

Aligns high-quality video with telemetry inputs to create a fully synchronised performance record.

Cables & Accessories

Provides the physical and electrical pathways that maintain stable communication and reliable system operation.

Sensors & Expansions

Extends the platform’s measurement capabilities by adding specialised channels and advanced acquisition modules.

Sensors

Integrates cleanly with Aim displays, loggers, and control modules to deliver consistent, high-quality data.

EVO6 data logging modules operate as part of a connected system. They link straight into Aim dashes, loggers, and ECUs through the same CAN network for effortless integration.

"If you can’t explain it simply, you dont understand it well enough.”
Albert Einstein

Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.

Expand

Your System

Enhance the functionality, performance and reliability of your Aim products with our range of expansions designed to increase the range and depth of data collection and analysis.

Paul — Tue, 05 May 2026 15:08:40 +0000

Combined Sensors

Tech Specs

Combined Sensors

Dual-channel accuracy.
Single-point installation.

Capture temperature and pressure from one compact, motorsport-grade sensor designed to reduce plumbing and simplify your wiring harness

Engineered to Do More with Less

Combined Sensors are designed for applications where every port, every gram, and every second matters. By integrating two sensing elements into a single body, they deliver reliable, high-resolution data while minimising system complexity.

Two Independent Outputs

Temperature and pressure delivered simultaneously from a single threaded port, reducing the number of sensors required in high-density installations.

Multiple Thread Options

Available in a range of thread types to suit different engine blocks, manifolds, and fluid galleries across motorsport applications.

Flexible Connectivity Options

Available with a Binder 719 connector for direct Aim compatibility or free-wire variants for custom loom builds.

Bar or PSI Calibration

Offered in multiple pressure scales to match your preferred calibration workflow and data visualisation standards.

Motorsport-Ready Construction

Built to withstand continuous vibration, heat cycles, and pressure loading in demanding race environments.

Reduced Hardware Footprint

A single sensor body replaces multiple fittings and adapters, cutting leak points and simplifying the overall plumbing layout.

Two Architectures, One Precision Sensor Platform

Evaluate the difference between single-element and dual-element sensing systems.

Combined Sensor

A unified internal structure delivering streamlined measurement through a single sensing path.

Single sensing path for simplified installation

Compact, space-saving design

Unified measurement for consistent performance

Reduced wiring and easier integration

Independent Sensors

Two dedicated sensing paths providing separate measurement channels for flexible system design.

Separate pressure & temperature pathways

Independent signal processing

Real-time response

High stability and resolution

Built into the Aim Ecosystem

Designed to communicate, configure and perform as one unified system

Sensors

Integrates cleanly with Aim displays, loggers, and control modules to deliver consistent, high-quality data.

Lap Timing

Delivers precise, lap/session timing data that anchors the rest of the system’s performance analysis.

Displays & Display Loggers

Presents real-time vehicle information through a unified interface that consolidates multiple data sources.

Cameras

Aligns high-quality video with telemetry inputs to create a fully synchronised performance record.

Cables & Accessories

Provides the physical and electrical pathways that maintain stable communication and reliable system operation.

Sensors & Expansions

Extends the platform’s measurement capabilities by adding specialised channels and advanced acquisition modules.

Sensors

Integrates cleanly with Aim displays, loggers, and control modules to deliver consistent, high-quality data.

Lap Timing

Delivers precise lap and session timing data that anchors the rest of the system’s performance analysis.

Displays & Display Loggers

Presents real-time vehicle information through a unified interface that consolidates multiple data sources.

Cameras

Aligns high-quality video with telemetry inputs to create a fully synchronised performance record.

Cables & Accessories

Provides the physical and electrical pathways that maintain stable communication and reliable system operation.

Sensors & Expansions

Extends the platform’s measurement capabilities by adding specialised channels and advanced acquisition modules.

Combined sensors don’t operate in isolation. They connect directly to Aim dashes, loggers, and ECUs through the same unified CAN network for seamless data acquisition.

Built For The Way You Race

Easy CAN Integration

Connects instantly to the Aim network for clean, reliable sensor data flow.

Configured in Race Studio 3

Set up and calibrate pressure and temperature channels from one familiar workspace.

Real-Time Monitoring

View live sensor values and diagnostics the moment they’re active.

More from the Sensor Range

Explore additional sensors designed to deliver reliable measurements, consistent performance, and easy system integration.

Speed & Position Sensors

Wheel, shaft, and movement detection

Learn More

Temperature Sensors

Coolant, oil, brake, and exhaust

Learn More

Pressure Sensors

Oil, fuel, and fluid pressure

Learn More

Paul — Wed, 25 Feb 2026 10:50:53 +0000

EPM
Technical Information

Overview

Buy

EPM08

EPM32

Model

EPM08

EPM32

Overview

The Expansion Power Module adds power outputs to your installation. They are available in two variants, the EPM08 with 8 power outputs, and the EPM32 with 32 power outputs.

Size & Weight

Dimensions: 161 x 100.6 x 50.6mm
Weight: 370g

Dimensions: 234.4 x 95.1 x 49mm
Weight: 740g

Waterproof

IP 65

IP 65

In The Box

EPM08 Module

EPM32 Module

Technical

Connectors: 1 AMP connector + 1 Amphenol Surlok connector
LEDs: 8 RGB LEDs + 1 EPM ON + 1 EPM STS (status)
Inputs:
Analogue Inputs: 6 fully configurable analogue inputs (0-5V; 0-12V) recorded at max 500Hz each
Digital Inputs: Pull-up/pull-down
Power Outputs:
1 with series diode rated up to 20A (high side)
1 rated up to 25A (high side)
6 rated up to 15A (high side)
Protected For: overvoltage, undervoltage, short circuit, overcurrent and overtemperature
All outputs have an internal freewheeling diode
Total Max Current: 100A
Body: Anodised aluminium

Connectors: 2 AMP connector + 1 Amphenol Surlok connector
LEDs: 32 RGB LEDs + 1 EPM ON + 1 EPM STS (status)
Inputs:
Up to 8 analogue inputs recorded at max 500Hz each (8 configurable as analogue or digital, 4 digital only)
Digital Inputs: Pull-up/pull-down
Power Outputs:
1 with series diode + 3 rated up to 20A (high side)
12 rated up to 15A (high side)
12 rated up to 10A (high side)
4 rated up to 35A (high side/half bridge/low side/configurable)
Protected For: overvoltage, undervoltage, short circuit, overcurrent, overtemperature
Total Max Current: 120A
Body: Anodised aluminium

Diagram

Downloads

Paul — Tue, 24 Feb 2026 11:48:14 +0000

Aim EPM Expansion Power Module

EPM Tech Specs

"Expansion Power Modules designed for the future of motorsport engineering."

Smart Power Expansion

The system dynamically allocates power across modules, ensuring stable delivery as new hardware is added or congurations evolve.
Live Current Monitoring

Every output is tracked in real time, giving you clear visibility into load behaviour and early indicators of irregular performance.
Automatic Protection

Fault conditions are detected and isolated instantly, safeguarding connected components and maintaining system integrity.
CAN-Driven Control

All commands and status updates flow through a unified CAN interface, enabling precise, predictable control across the entire platform.
Cleaner, Lighter Wiring

A centralised distribution approach removes bulky relays and fuses, reducing harness weight and simplifying installation.
Scalable Architecture

Modules stack logically, allowing the system to grow with your project while keeping conguration and integration straightforward.

Intelligent Power Distribution

No relays. No fuse boxes. No compromises.

Digitally control, monitor and protect your vehicle's electrical circuits through Aim's CAN and Race Studio 3.

Two Modules,
One Intelligent Power Platform

Pick the configuration that fits your vehicle's complexity.

Compact power expansion for focused builds.

8 Outputs - 100A Capacity

Perfect for lightweight vehicles and streamlined electrical systems.

High-channel power control for complex systems.

32 Outputs - 120A Capacity

Designed for high-channel systems and advanced power distribution.

Engineerd for Total Control

Every detail of the system is designed for precision, reliability, and motorsport-grade performance.

Precision Control

Up to 32 configurable power outputs for precise, flexible power delivery.
Advanced Input Monitoring

12 configurable inputs with high-speed sampling up to 500Hz.
Built for Motorsport

IP65-sealed anodised aluminium housing with intelligent thermal and overcurrent protection.

Built into the Aim Ecosystem

Designed to communicate, configure and perform as one unified system.

EPM Modules don't operate independently. They integrate directly with MX dashes, PDM systems and steering wheels through Aim's CAN network.

Built For The Way You Race

Easy CAN Integration

Connects instantly with the Aim network for unified data flow.

Configured in Race Studio 3

Set up, adjust, and refine everything from one familiar workspace.

Real-Time Monitoring

See live status, current, and activation the moment it happens.

More from the EPM range

Explore more of the EPM range, featuring 5, 6 and 10-inch PDM Displays, remote interface module and PDM power distribution modules.

MXSL Dash Display

Integrated power dash display

Learn More

RIO Module

Remote input/output module

Learn More

PDM Power Distribution Module

An easier solution to a traditional fuse box

Learn More

Click to Change Icons

Race

Road

Paul — Thu, 16 Oct 2025 09:20:32 +0000

Technical Information

Overview

Buy

MXq
Technical Information

Model

MXq

Overview

The MXq dash logger is the lighter version of the MXm, divering only in the number of analogue and digital inputs, outputs and connectors. It delivers crucial racing data like speed, lap times, RPM, and gear selection, enhanced with multiple math channels. Its compact design fits easily in any car or bike, overing plug-and-play simplicity. Ideal for both professional and amateur racers, the MXq seamlessly integrates detailed performance tracking in a user-friendly format.

Key Features

High contrast configurable display
CAN & Analogue Data Input
5 configurable RGB LEDs Shift lights
Waterproof
Integrated GPS
5 configurable RGB colours
2 configurable RGB LEDs alarms
Free race studio 3 download

Size & Weight

Dimensions: 137 x 88.4 x 31.9 mm
Weight: 330g

Waterproof

IP 65

In The Box

MXq
RS232 / OBDII or RPM harness

Technical

Ambient light sensor: Yes
Shift Lights: 5 configurable RGB LEDs
Alarm LEDs: 2 configurable RGB LEDs
CAN connections: 2
ECU connection: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
GPS: Integrated
External modules: Lambda Controller, SmartyCam HD, ACC3
Analogue inputs: 1 fully configurable, max 500Hz each
Digital inputs: Low level coil RPM input, 0-5 V square wave
WiFi connection: Yes
Internal Memory: 4 GB
Body: PA6 GS30%
Pushbuttons: Metallic
Connectors: 3 Binder connectors

Display

Resolution: 268 x 128 pixels
Backlight: 8 configurable RGB colours

Diagram

Downloads

Paul — Thu, 16 Oct 2025 09:19:33 +0000

MXq Dash Display

Tech Specs

Compact Data Logger

The Data Logger

For Tight Squeezes

GPS09

The GPS Module included in the kit is connected via CAN and makes lap time calculation and track position analysis easy. It locates position, identifies track line coordinates and starts immediately sampling lap and split times
ECU Connection

The MXq dash can be configured to show all the information coming from the ECU, analogue/digital inputs, predefined math channels and GPS Module
Analogue/Digital Inputs

The MXq has 1 analogue input and 1 digital input. Performance and data acquired can also be incremented by adding expansion modules
LED Alarms

You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities
Math Channels

Sampled data depends on the actual ECU, but will typically include RPM, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear & lambda value (air/fuel ratio)
Second CAN

With CAN Output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities

4GB
Memory

IP65 Rated

An all-weather capable GPS device, designed to function in the wettest or driest conditions

No Fuss,
No Worry

Constantly Logging Your Data

The Aim MXq offers comprehensive data display and logging capabilities directly from your vehicle

Idestructible Chassis

Made from glass ﬁbre reinforced nylon

Choose What
Works For You

Flexible Alarms

Customise your RGB alarm LEDs, choosing colour and conditions to match your preferences. Set alarms with a variety of ﬂashing options and prioritise them as you see ﬁt

Back light

Choose out of eight colours

Pre-Configured
Pages

Toggle through multiple data display layouts and choose how you like to see your data

Integrate Shift
Light Array

Tailor your shift light sequences with an array of RGB patterns, even assigning different colours for each gear shift

Delta Times

Delta Times provides instant feedback on your performance, showing how your current timing compares to your best

Data Recall

At the end of your test, quickly review all the key information on your display

Analogue And Digital Inputs

The MXq has 1 fully configurable analogue input and 1 digital input (1 low level coil RPM input, 0-5 V square wave).

Transfer data fast

Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.

Learn More

"If you can’t explain it simply, you dont understand it well enough.”
Albert Einstein

Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.

Now Sampling at 25Hz,
showing Delta times and more...

All you need to know about how your data works.

Learn More

Expand

Your System

Enhance the functionality, performance and reliability of your Aim MXq data logger with our range of expansions - designed to increase the range and depth of data collection and analysis.

MXq Dash Display Summary
The Aim MXq dash display and data logger provides drivers with important racing data like speed, lap times, RPM and gear selection to optimise their motorsport performance.
- Integrated GPS: Precise 25Hz GPS-based lap timing with data logging capabilities for performance analysis.
- Wireless data transfer: Supports 802.11 Wi-Fi for quick and secure data downloads and system configuration, without the need for wires.
- High-resolution display: Crisp, clear graphics with anti-glare technology on a compact display for optimal visibility in various lighting conditions.
- Durable design: Made from glass fibre reinforced nylon, the MXq dash display is built for rugged motorsport environments, with a waterproof and shock-resistant casing.
- Usability: Designed with ease of use in mind, this compact data logger is ideal for any skill level.

Paul — Tue, 14 Oct 2025 15:13:25 +0000

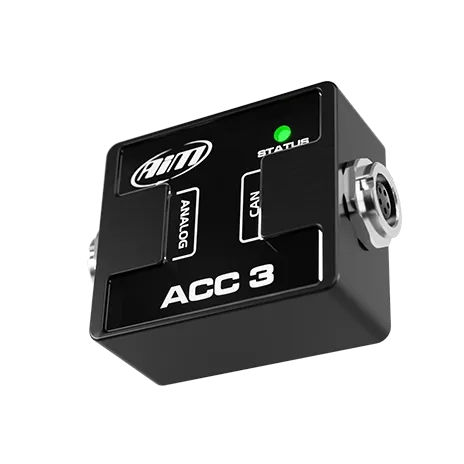

ACC 3 Open

Standard Version Tech Specs

The Compact Aim Analogue CAN Converter

The ACC 3 Open seamlessly integrates with Aim data loggers, enhancing their
capabilities and enabling better-informed decisions and more efficient
monitoring of vehicle performance.

Analogue Channels

PA6

+30% Glass Reinforced

Anodised

Aluminium

IP65

Rated Waterproof

Robust Construction

The Aim Analogue CAN Converter features a rugged construction built to endure harsh conditions, ensuring reliability in demanding environments.

Designed for the demanding environment of rally racing, the ACC 2 typically features a rugged and durable construction to withstand vibrations, impacts, and other challenges encountered during competition.

Open Can Network.

The open CAN network on the ACC 3 facilitates seamless integration with all devices, allowing for comprehensive data sharing and analysis across the network. Every OPEN device can be connected to a PC via a dedicated USB cable for easy connection

Compatible with Aim Solo 2/DL

ACC 3 Open seamlessly integrates with the Aim Solo 2 DL data logger, enhancing its capabilities for performance monitoring by providing additional data inputs.

Ethernet Control

Ethernet control can be used from anywhere around the world as long as you have a connection giving you full control over the data you receive.

Configuration with Race Studio 3

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam 3 cameras.

Paul — Mon, 30 Jun 2025 08:53:37 +0000

Technical Information

Standard Version
