Pressure Sensors

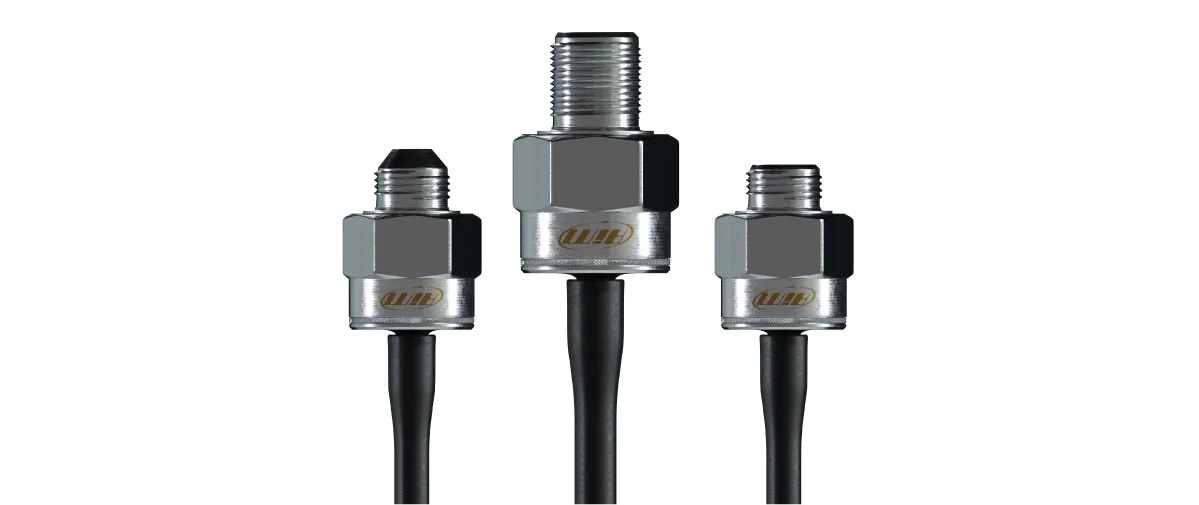

“Our M10 and 3/8 24 thread pressure sensors provide accurate monitoring of oil and fuel pressure, while our dedicated brake pressure sensors ensure optimal brake performance with a variety of pressure ranges available.”
Oil/Fuel Pressure

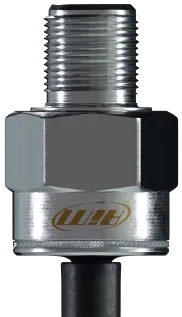

Aim's M10 and 3/8 24 thread pressure sensors precisely track oil and fuel pressure, guaranteeing peak performance across a range of pressure options.

Pressure Range:
0-5/0-10 Bar

Pinouts & Threads
The M10 0-10 Bar pressure sensors are fitted with male four pins black 719 binder plug connections to suit all Aim loggers and dash display/loggers.
1/8 NPT

M10

3/8 24

719 Male Connector
All fitted with a four pin 719 binder plug connection to fit all Aim loggers and dash display/loggers.

Brake Pressure

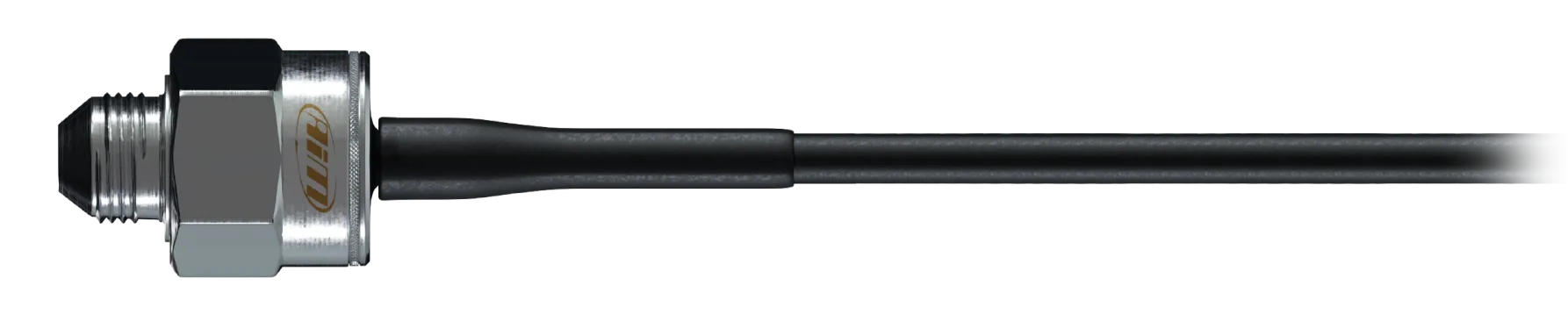

Aim brake pressure sensors, ensure accurate monitoring to achieve precision in braking dynamics and safety on the track.

Pressure Range:
0-100 Bar/
0-160 Bar

Pinouts & Threads
The Aim 3/8th 24 - 0-100 Bar brake pressure sensors are fitted with male four pins black 719 binder plug connections to suit all Aim loggers and dash display/loggers
M10 Thread

3/8 24

719 Male Connector
All fitted with a four pin 719 binder plug connection to fit all Aim loggers and dash display/loggers.

Absolute Pressure Sensors

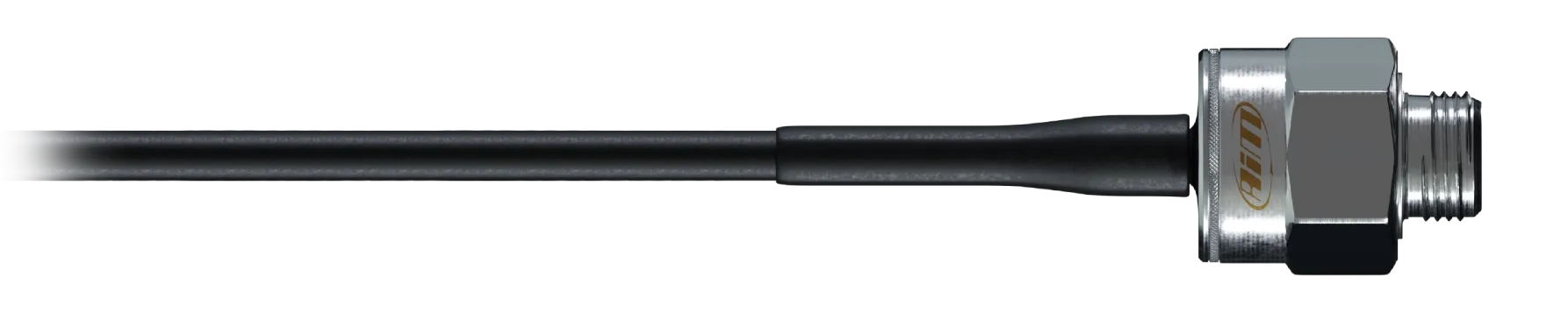

Aim devices can sample and record manifold air pressure (MAP). Aim 0-5 bar absolute pressure sensor can read the pressure from -1 (depression) up to +4 absolute bars.

Pressure Range:
0-5 Bar

Pinouts & Threads
The Aim Absolute boost pressure sensor, fitted with a male four pin black 719 binder plug connection, suits all Aim loggers and dash display/loggers.
M10 Thread

3/8 24

719 Male Connector
All fitted with a four pin 719 binder plug connection to fit all Aim loggers and dash display/loggers.

Adaptors
For a straightforward pressure takeoff, the Banjo Adaptor simplifys the installation of brake pressure sensors onto banjo unions.
Banjo Adaptor
The Aim Motorsport adaptor easily connects a brake pressure sensor to a banjo union with an M10 x 1 thread, allowing simple installation on an existing banjo union for straightforward pressure measurements.

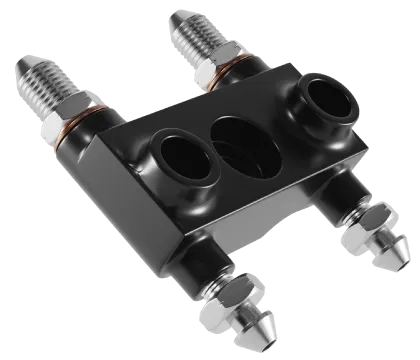

Dual Brake Pressure Mounting T-Piece Kit
The Dual Brake Pressure Mounting T-Piece Kit holds two sensors and allows you to see brake pressure, braking points, driver alertness, and brake system status for motorsport racing.
