Data Hub
Technical Information
Model
Data hub
Overview
The Aim four-way Data Hub provides a CAN channel and works as an interface between our Aim loggers and sensors.
Key Features
- Five pins 712 male Binder
- CAN connection
- Four-way hub
- Build a network
Size & Weight
- Dimensions: 123 x 30 x 23.5mm
- Weight: 97g
Waterproof
- IP 65
In The Box
- 1 Four-way Data Hub
Technical
- Cable length: 40/150cm

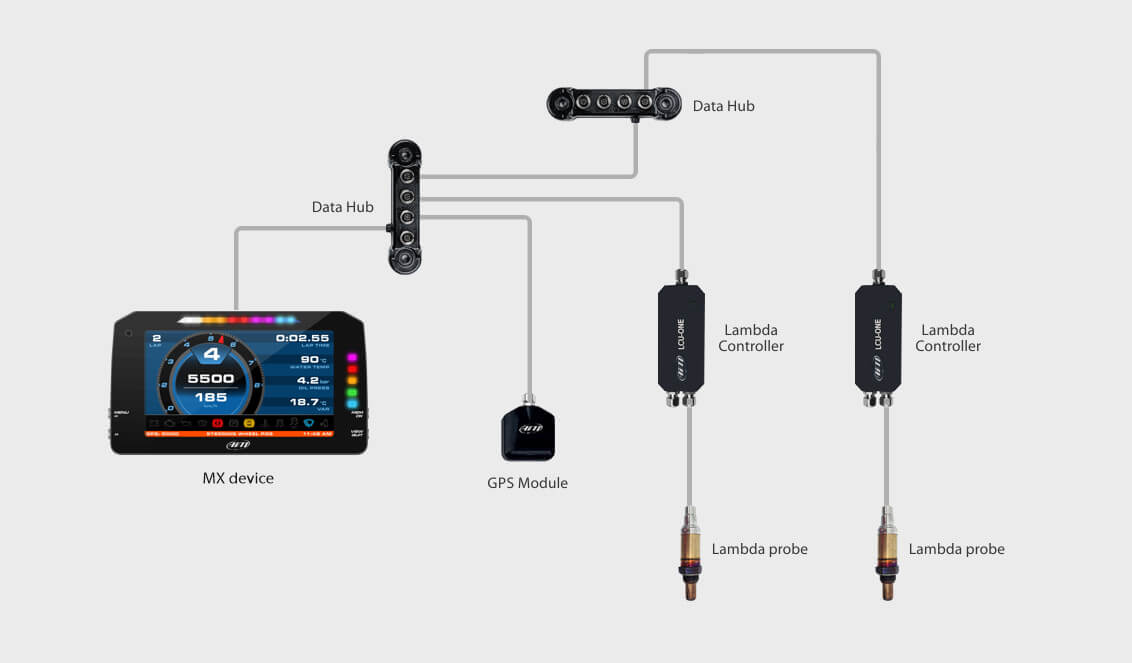

Connection example

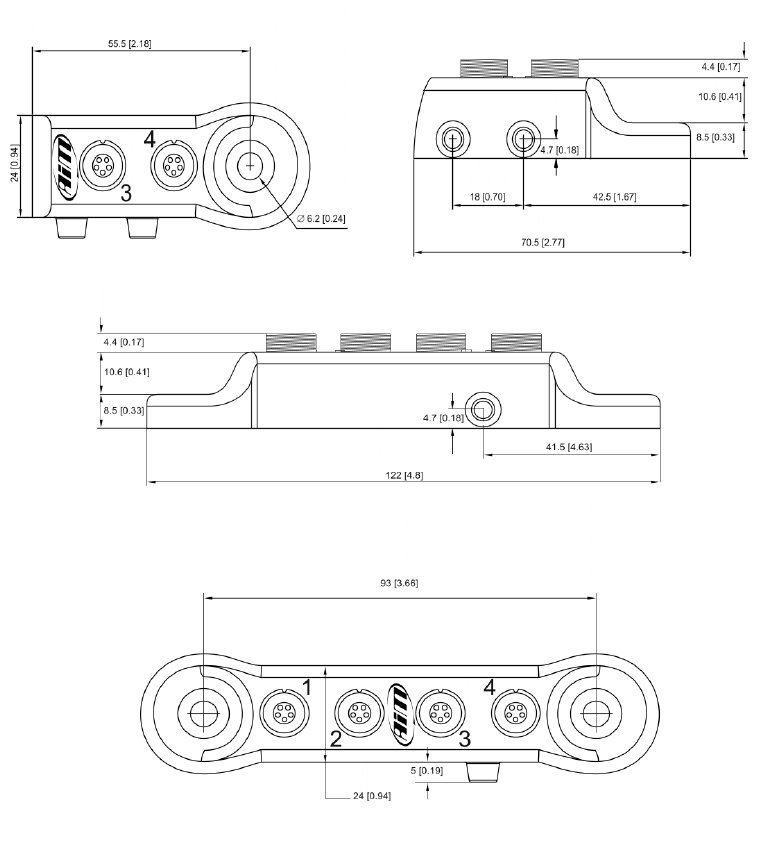

Diagram
