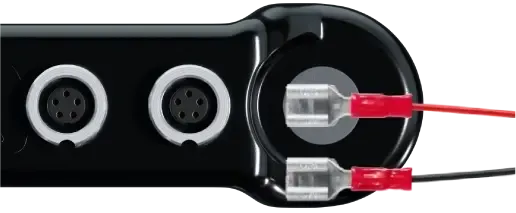

Aim Data Hub

The acquisition of all essential data you need to evaluate your vehicle performance, needs the connection of many peripherals to your data logger. This implies the presence of a great number of cables.

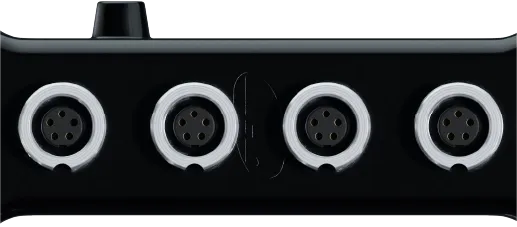

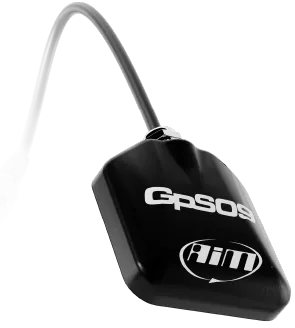

To solve this problem, Aim developed Data Hub, the new CAN connection multiplier that works as an interface between all AiM loggers and their peripheral equipment. Each Hub connects the logger with four peripherals: i.e. LCU lambda controller, GPS08 Module and one or more TC Hub (thermocouple multiplier).

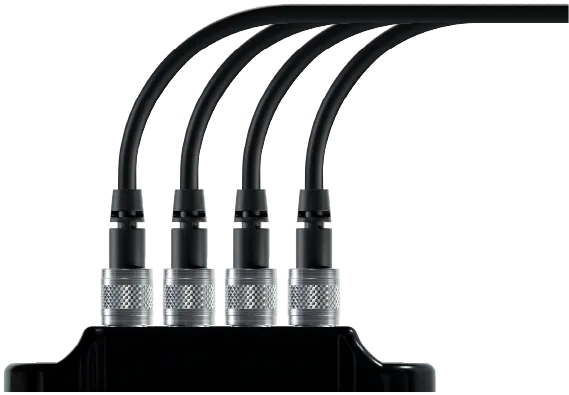

Data Hub takes all the information you need to your logger with only one cable, minimising wires overall.

Data Hub is available in two versions:

  • Two way Data Hub with external power

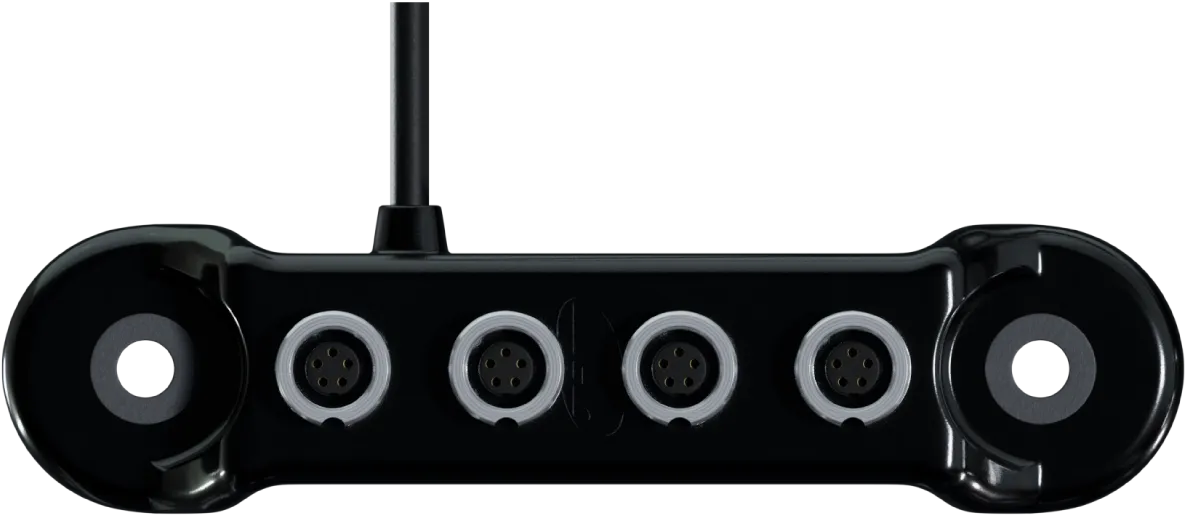

  • Four way Data Hub

More Data Hub can be connected in sequence in order to increase the number of peripherals which can be connected. Data Hub is waterproof IP65.

Connection Examples

Connection Example
Connection Example
In The Box

Aim Data Hub

Technical Specs

TWO WAYS DATA HUB

Dimensions: 70x30x23.5 mm
CAN cable length: 40 cm
Source cable length: 165 cm
Weight: 86 g
Waterproof: IP65

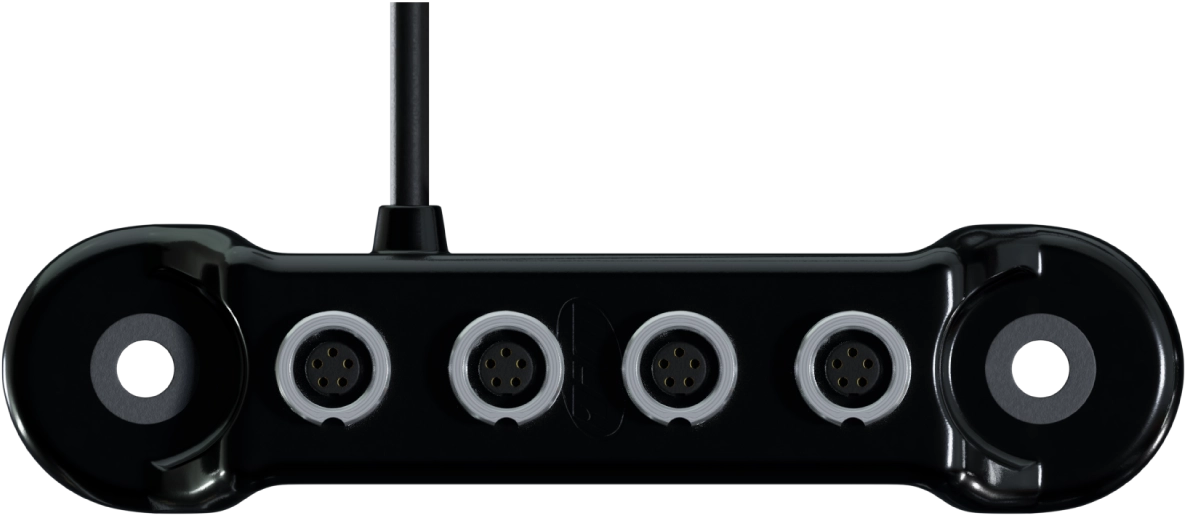

FOUR WAYS DATA HUB

Dimensions: 123x30x23.5 mm
CAN cable length: 40/150 cm
Weight: 97 g
Waterproof: IP65
