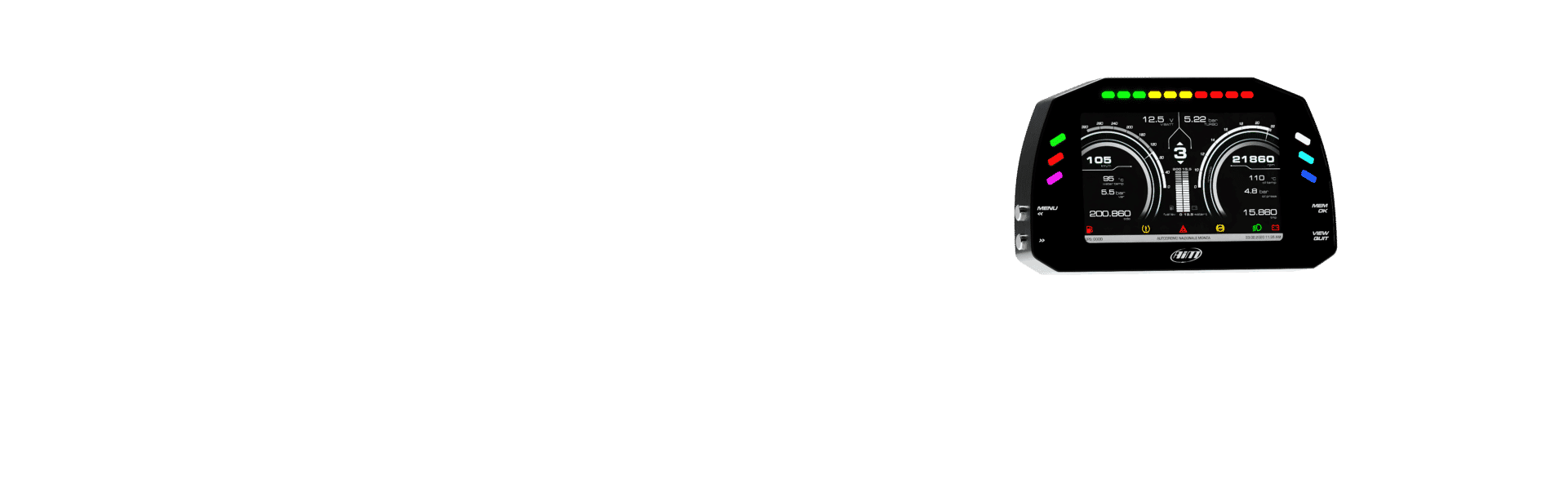

MX Series Dash Display
The Complete Range Of Motorsport Dash Display Loggers
View Specs
View Specs
View Specs
View Specs
Unlimited Power
The MX series dash display and data logger is engineered to collect data sourced from your ECU, internal accelerometer, gyro, GPS09 Module (included in the kits), analogue/digital inputs, and pre-defined math channels. These features are crucial for capturing detailed dynamic movement of the vehicle, which is essential for professional motorsports analysis.
-
GPS09
The GPS Module included in the kit is connected via CAN and makes lap time calculation and track position analysis easy, it locates position, identifies track line coordinates and starts immediately sampling lap and split times
-
ECU Connection
You can configure the dash to show all the information coming from the ECU, analogue/digital inputs, predefined math channels and an optional GPS Module
-
Analogue/Digital Inputs
MX series dash displays have 8 configurable analogue inputs. External modules can also be added, such as GPS modules, TC hubs or channel expansion units to enhance data collection
-
LED Alarms
You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities
-
Math Channels
Sampled data depends on the actual ECU, but will typically include RPM, throttle position, (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, lambda value (air/fuel ratio)
-
Second CAN
With CAN Output you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities
No Fuss,
No Worry
Consistently Logging Data
The MX series dash display surpasses the display-only MX Strada series by providing extensive data logging and display features for a range of motorsport vehicles, including race cars, bikes and more, without the need for additional expansions.

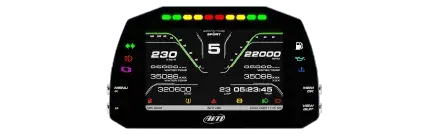

TFT Display

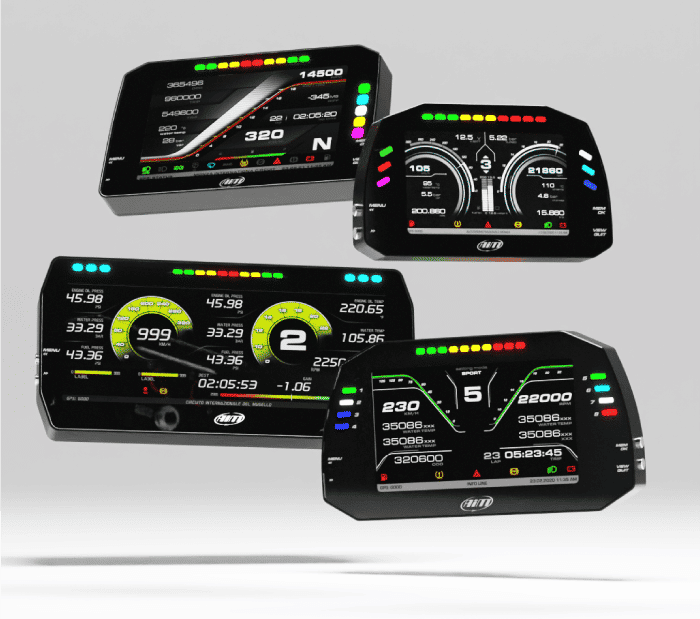

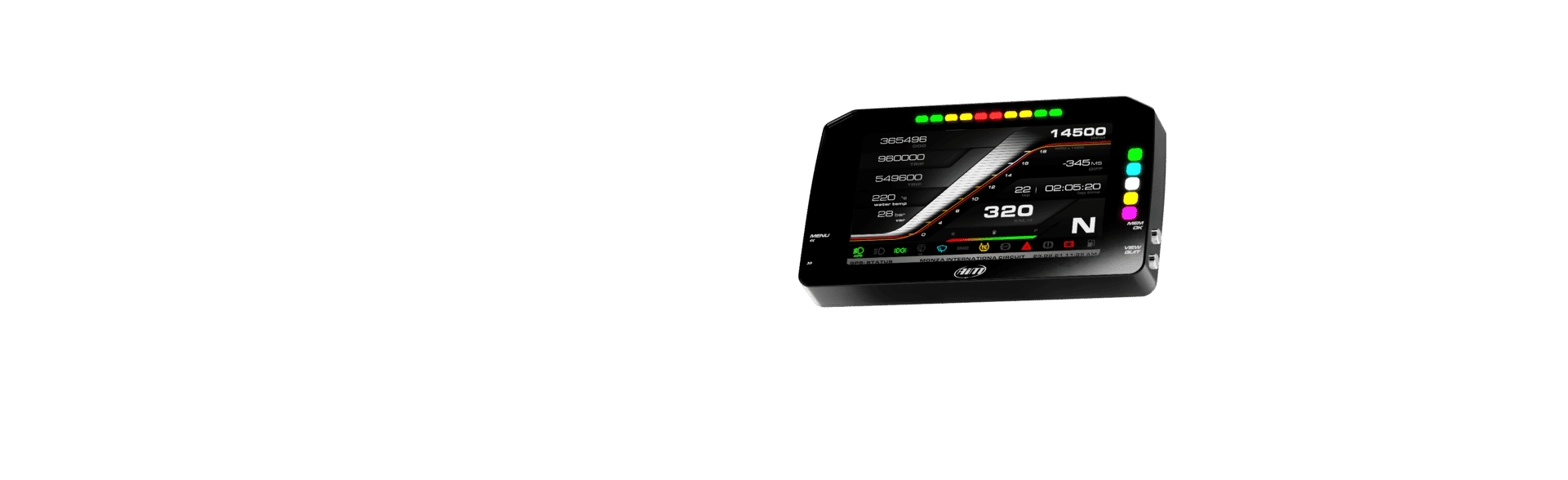

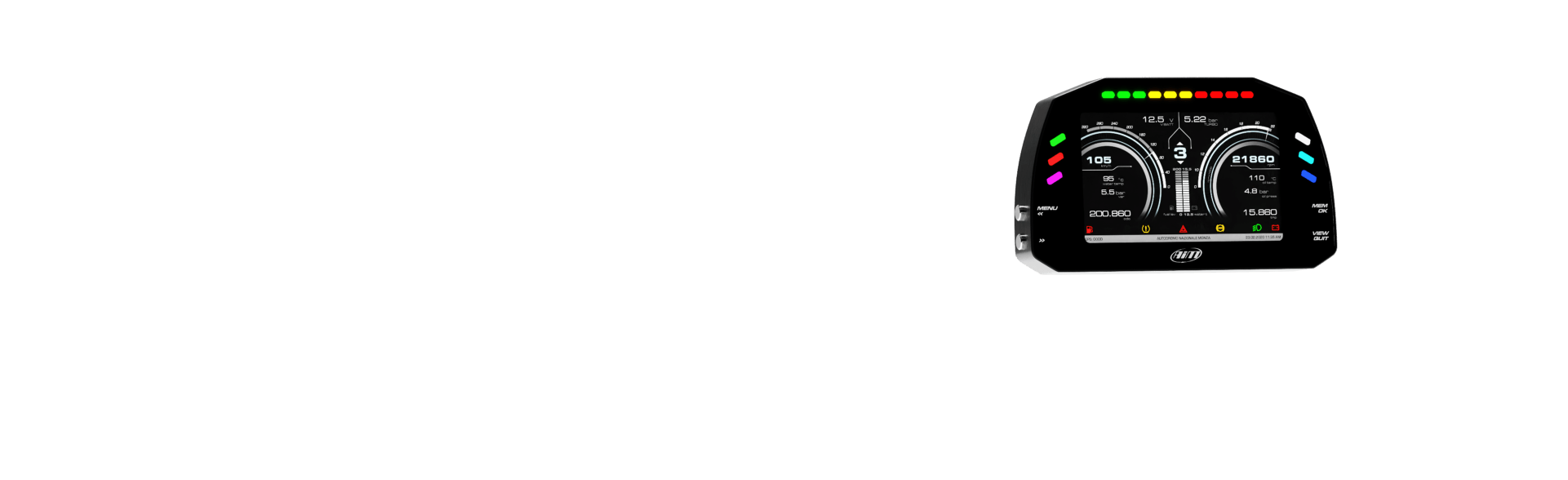

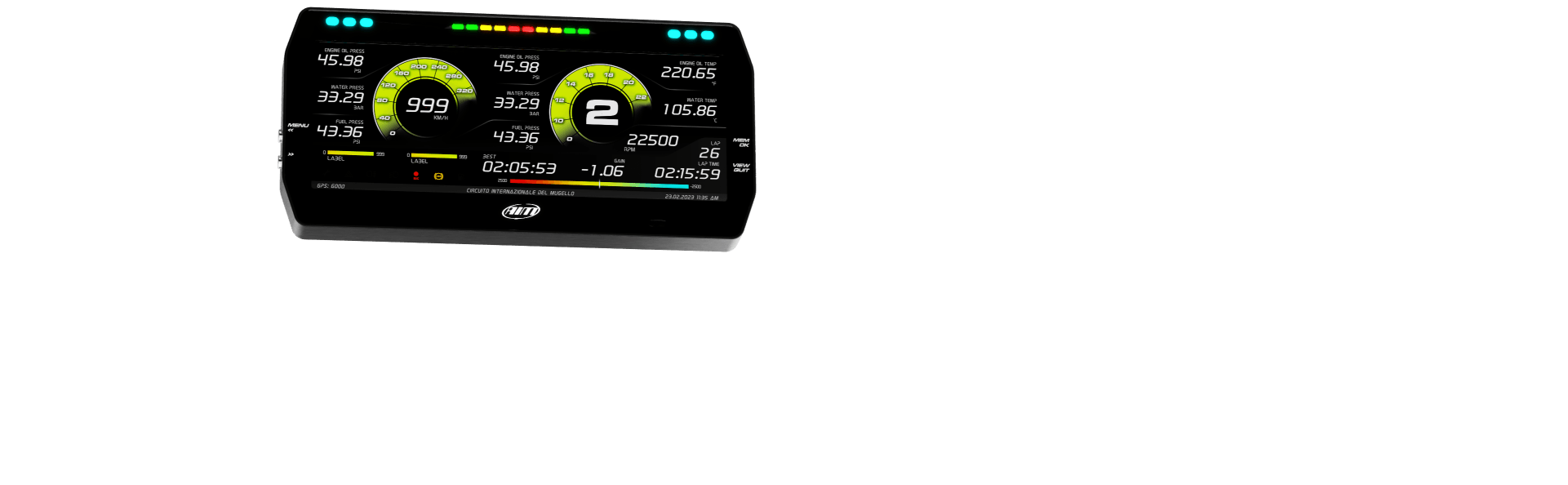

The MX series dash display comes in 4 TFT display sizes to suit your preferences: MXS 5" display, MXP 6" display, MXG 7" display and MXT 10" display. All offer great flexibility in information display and alerts, whilst a built-in light sensor adjusts the screen for optimal visibility under varying lighting conditions.
Choose What
Works For You
Flexible Alarms
The MX series dash display allows you to customise your RGB LEDs, choosing different colours for each gear, with a variety of alarm flashing options available too. This customisation provides drivers with immediate visual cues that are easy to interpret at high speed.
Race Icons
The display loggers offer race icon customisation distinct from the Strada versions.
Integrated Shift Light Array
Tailor your shift light sequences with an array of RGB patterns, even assigning different colours for each gear shift.

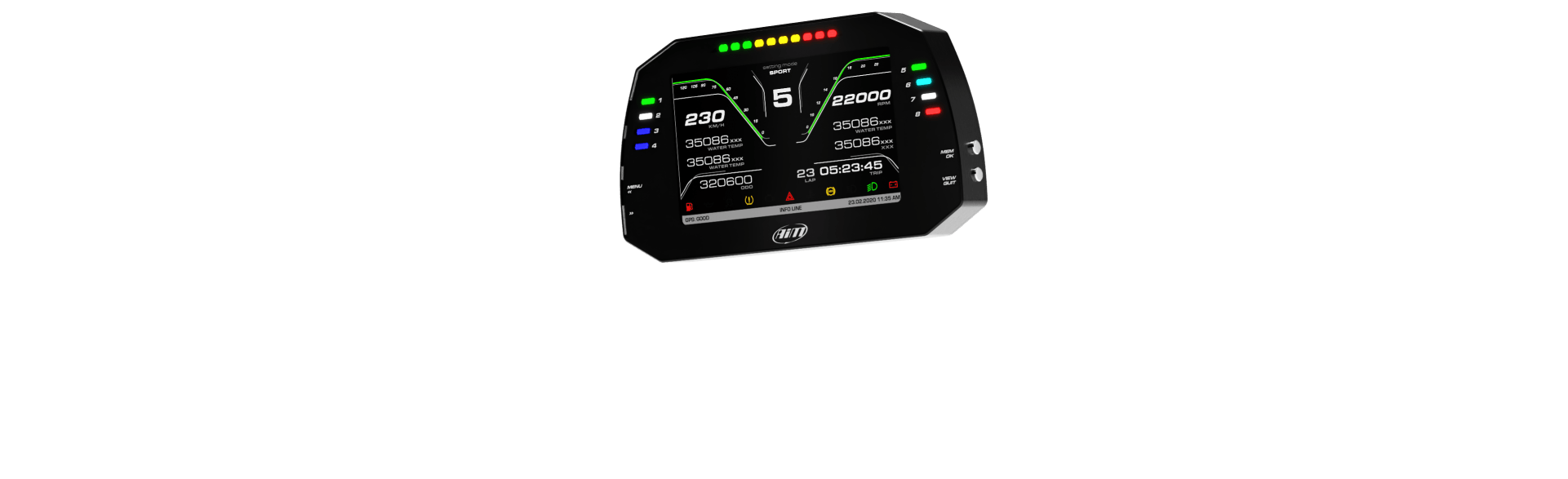

2 Display Styles
Choose between analogue and digital display designs depending on how you like to see your data.

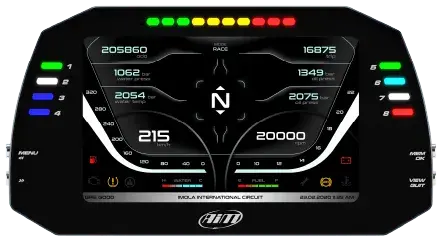

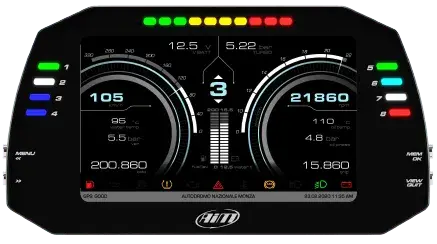

Analogue
v

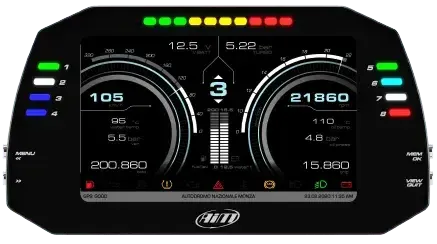

Digital
v
Delta Times
Delta Times provides instant feedback on your performance, showing how your current timing compares to your best.
8 Analogue
Sensor Inputs
8 fully configurable analogue sensor inputs, max 500 Hz each.
37 Pin Harness:
Comes standard and provides the first four analogue inputs, one speed input and one CAN Network.
22 Pin Harness:
Purchased separately and provides the remaining four analogue inputs, three speed inputs and the extra CAN Network
Two Digital Outputs
These digital outputs (Dout) are LOW SIDE type (switch to ground) and can be configured to activate based on various input values for enhanced vehicle control.

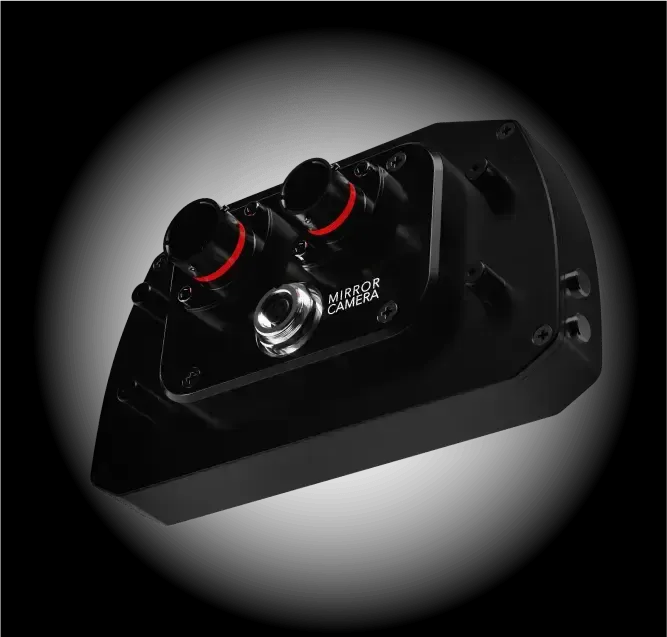

Rearview Camera
Upgrade your visibility with the new dual rear camera management, which can be useful in both race situations and during general vehicle operation.
Transfer Data Fast
Simplify wireless data transfer with a secure 802.11 Wi-Fi connection, allowing for remote calibration and configuration up to 50 meters away.
Learn More >
Now Sampling at 25Hz,
showing Delta times and more...
All you need to know about how your data works.
Learn More
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.
Expand
Your System
Enhance the functionality, performance and reliability of your Aim MX Series display logger with our range of expansions - designed to increase the range and depth of data collection and analysis for the motorsport industry.
