MX SERIES
Technical Information

Model

MXT

AIM MXT

MXG

AIM MXG

MXP

AIM MXP

MXS

AIM MXS

Overview

The MX Series dash loggers have been designed to acquire and display data coming from the ECU.

Key Features

  • 10” TFT display
  • 3 CAN conections
  • GPS Module
  • 10 configurable RGB LEDs shift lights
  • 6 alarm RGB LEDs
  • 8 analogue inputs
  • Two digital outputs
  • Wi-Fi connectivity
  • Integrated shift array
  • W1,000+ industry-leading ECUs
  • 7" TFT display
  • 2 CAN conections
  • GPS Module
  • 10 configurable RGB LEDs shift lights
  • 8 alarm RGB LEDs
  • 8 analogue inputs
  • Two digital outputs
  • Wi-Fi connectivity
  • Integrated shift array
  • W1,000+ industry-leading ECUs
  • 6" TFT display
  • 3 CAN conections
  • GPS Module
  • 10 configurable RGB LEDs shift lights
  • 5 alarm RGB LEDs
  • 8 analogue inputs
  • Two digital outputs
  • Wi-Fi connectivity
  • Integrated shift array
  • W1,000+ industry-leading ECUs
  • 5" compact TFT display
  • 3 CAN conections
  • GPS Module
  • 10 configurable RGB LEDs shift lights
  • 6 alarm RGB LEDs
  • 8 analogue inputs
  • Two digital outputs
  • Wi-Fi connectivity
  • Integrated shift array
  • W1,000+ industry-leading ECUs

Size & Weight

  • Dimensions:
    278 X 135 X 43.2mm
  • Weight: 1,200g
  • Dimensions:
    237 x 127.6 x 26mm
  • Weight: 950g
  • Dimensions:
    189.6 x 106.4 x 24.9 mm
  • Weight: 640g
  • Dimensions:
    169.4*97*23 mm
  • Weight: 530g

Waterproof

  • IP65
  • IP65
  • IP65
  • IP65

In the box

  • MXT Dash Logger
  • 37 pin standard harness
  • GPS Module with cable
  • USB Cable
  • Aim sticker
  • MXG Dash Logger
  • 37 pin standard harness
  • GPS Module with cable
  • USB Cable
  • Aim sticker
  • MXP Dash Logger
  • 37 pin standard harness
  • GPS Module with cable
  • USB Cable
  • Aim sticker
  • MXS Dash Logger
  • 37 pin standard harness
  • GPS Module with cable
  • USB Cable
  • Aim sticker

Technical

  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Alarm LEDs: 6 configurable RGB LEDs
  • Shift Lights: 10 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 4 Speed input, lap signal, coil RPM input
  • Digital outputs: 2 (1 A max)
  • Second CAN: Yes
  • Wi-Fi connection: Yes
  • Inertial platform: Internal 3 axis gyro, magnetometer and ±5G accelerometer (MXG 1.2, MXP, MXS 1.2 only
  • Internal memory: 4 GB
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 Motorsport connectors + 1 Binder connector
  • Power consumption: 450 mA
  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Alarm LEDs: 8 configurable RGB LEDs
  • Shift Lights: 10 configurable RGB LEDs
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 4 Speed input, lap signal, coil RPM input
  • Digital outputs: 2 (1 A max)
  • Second CAN: Yes
  • Wi-Fi connection: Yes
  • Inertial platform: Internal 3 axis gyro, magnetometer and ±5G accelerometer (MXG 1.2, MXP, MXS 1.2 only
  • Internal memory: 4 GB
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 Motorsport connectors + 1 Binder connector
  • Power consumption: 400 mA
  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Alarm LEDs: 5 configurable RGB LEDs
  • Shift Lights: 10 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 4 Speed input, lap signal, coil RPM input
  • Digital outputs: 2 (1 A max)
  • Second CAN: Yes
  • Wi-Fi connection: Yes
  • Inertial platform: Internal 3 axis gyro, magnetometer and ±5G accelerometer (MXG 1.2, MXP, MXS 1.2 only
  • Internal memory: 4 GB
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 Motorsport connectors + 1 Binder connector
  • Power consumption: 500 mA
  • Light Sensor: Yes
  • Alarm Display Icons: Yes, freely configurable
  • Alarm LEDs: 6 configurable RGB LEDs
  • Shift Lights: 10 configurable RGB LEDs
  • CAN connections: 3
  • ECU connections: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
  • External modules: GPS Module, Channel Expansion, TC Hub (necessary to connect K thermocouples),
  • Analogue inputs: 8 fully configurable, max 500 Hz each
  • Digital inputs: 4 Speed input, lap signal, coil RPM input
  • Digital outputs: 2 (1 A max)
  • Second CAN: Yes
  • Wi-Fi connection: Yes
  • Inertial platform: Internal 3 axis gyro, magnetometer and ±5G accelerometer (MXG 1.2, MXP, MXS 1.2 only
  • Internal memory: 4 GB
  • Body: Anodised Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 Motorsport connectors + 1 Binder connector
  • Power consumption: 400 mA

Display

  • Display: 10" TFT
  • Resolution: 1280 x 480 pixels
  • Contrast: 1,100:1
  • Brightness:800cd/m2 - 1,100 Lumen
  • Display: 7" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 1000:1
  • Brightness: 700cd/m² - 1,100 Lumen
  • Display: 6" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m² - 1,100 Lumen
  • Display: 5" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m² - 1,100 Lumen

Diagram

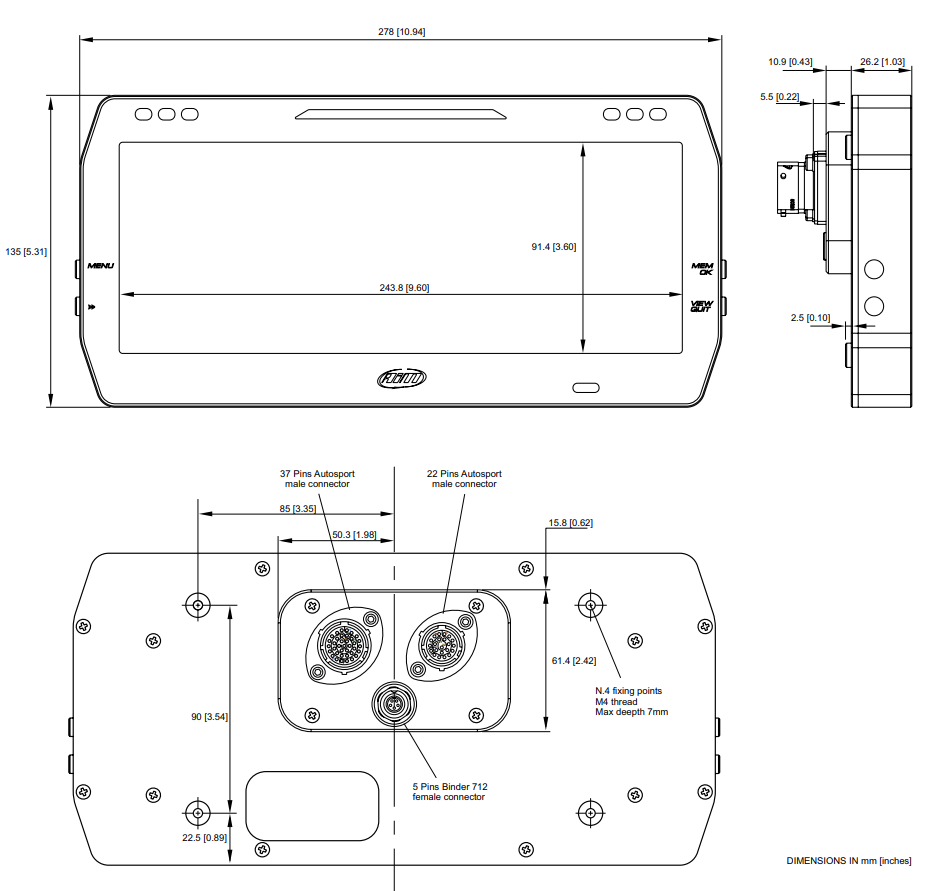

MXT

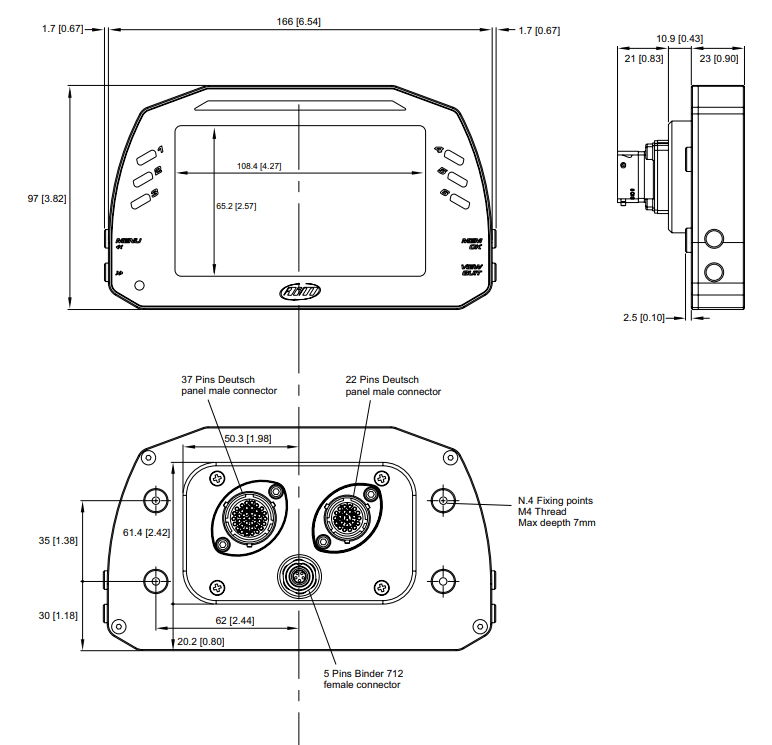

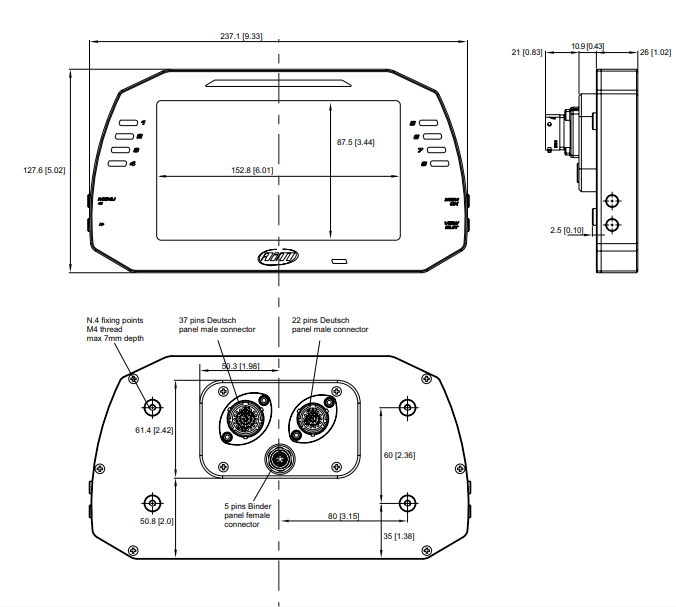

MXG

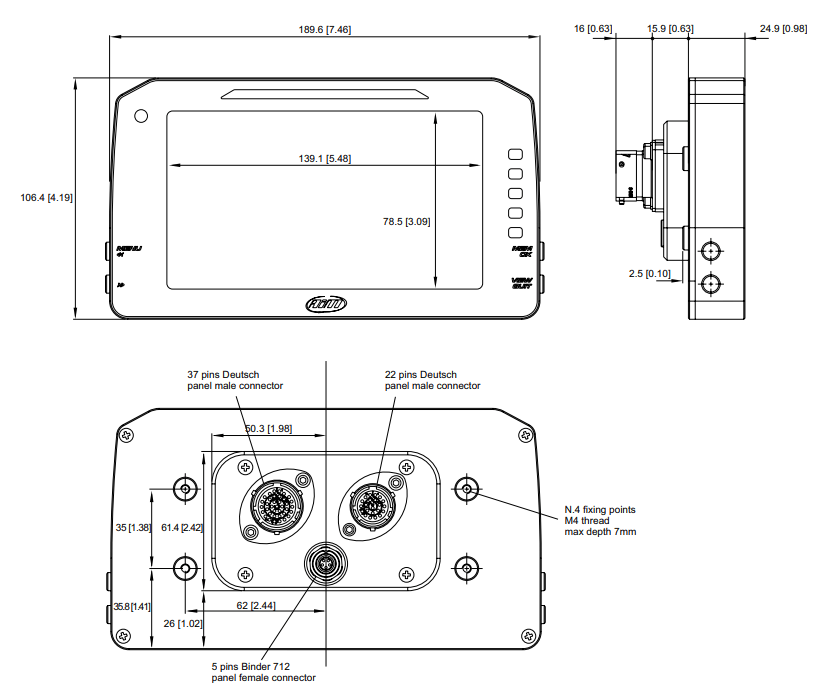

MXP
MXS
