ECU Log
Technical Information

ECU Log is the smallest datalogger to record data from your ECU. The reduced size of the ECU Log makes it ideal for motorcycle and any underseat compartment installation. The analysis of the performance is a key factor, all recorded data can be managed in Race Studio 3 Analysis with histograms, scatters, diagrams, maps and even videos recorded with a SmartyCam are automatically synchronised to the laps data for a better comparison.

• Only 61 x 44 x 27mm

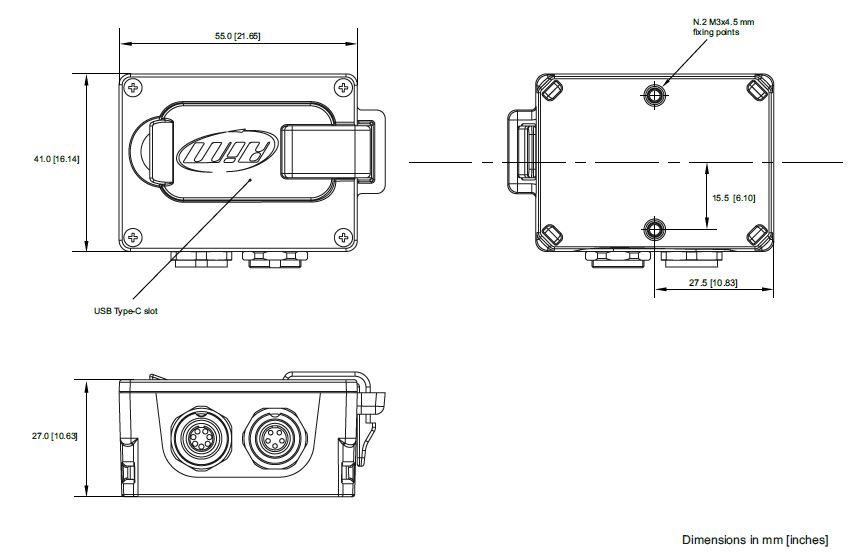

• Dimnesions: 61.4 x 44.7x27.2 mm
• Weight: 100g approx

• IP 65

• ECU Log
• Mini USB drive 16gb
• Either CAN/OBDII or CAN/RS232/EXT. Power 2m cable
• USB 2.0 A-Type C-Type 2m cable
• Aim Sticker

• ECU Connection: CAN, RS232 or K-Line to 1,000+ industry leading ECUs
• External Modules Connection: GPS09c/GPS09c Pro, ACC2, LCU1, SmartyCam 3 Series
• External power: 9÷15 V
• Internal Memory: 4GB + removable USB-C memory card
• Connectors: 1socket (Binder) 712, 5 pins, 1socket (Binder) 712, 7 pins, 1 USB Type-C
• Material: PA6 GS30%
