ECU Log
The ECU Log is one of our smallest dataloggers that records data from your ECU
Revolutionarily

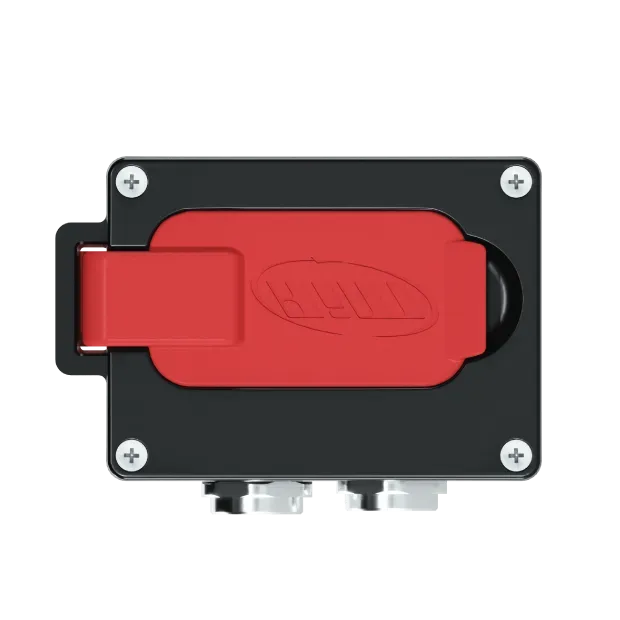

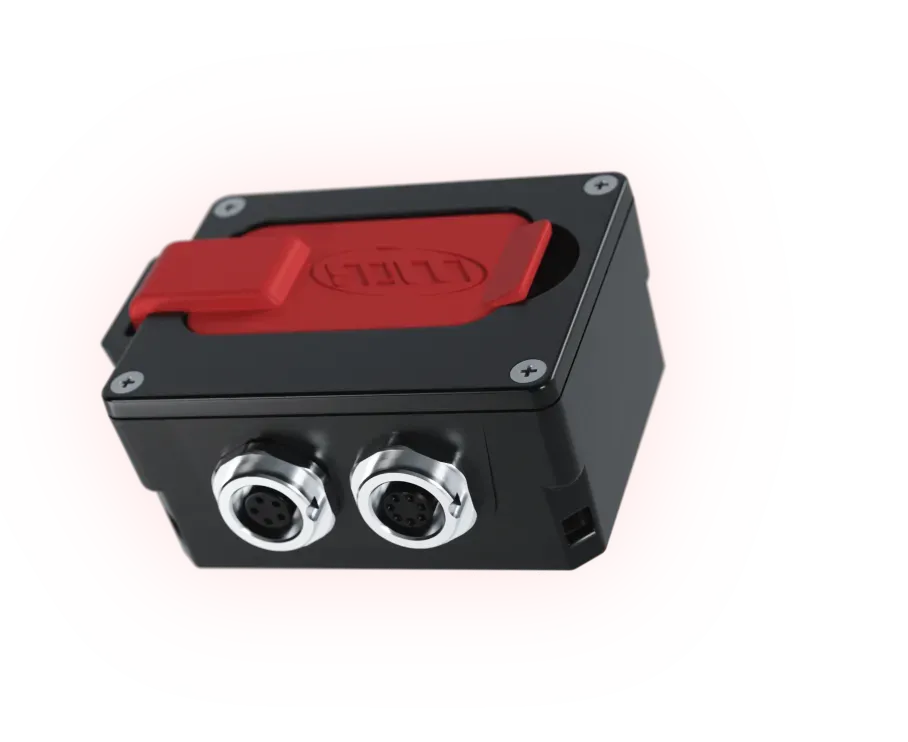

Small & Compact
Dimensions only measure 61 x 44 x 22mm
Data Connections
The new ECU Log integrates data connectivity, providing real-time monitoring of engine performance metrics and enabling remote diagnostics and maintenance adjustments. It offers insights into historical data for optimising engine tuning and predicting maintenance needs.
Removable USB Type-C Key
Allows for easy data transfer and device configuration via USB connection. 4 GB Internal Memory: Provides ample storage capacity for recorded data, enabling continuous logging during race sessions.
ECU Stream CAN
Supports K-Line or RS232 connections for direct communication with the ECU, enabling real-time data capture of engine parameters and performance metrics.
ECU Connection
Direct connection to the ECU stream via CAN bus, ensuring reliable data capture without additional sensors or interfaces.
A Flexible System
It is simple to create a complete system with the new ECU Log designed by Aim. Different expansions are available to cover most requirements.

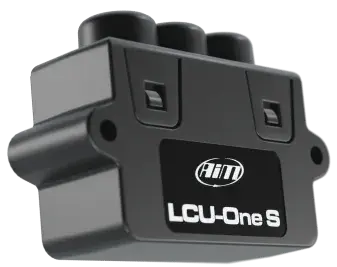

LCU-One S
Compatible with the Lambda controller for precise monitoring and tuning of air-fuel ratios.

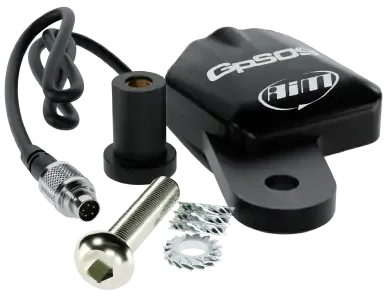

GPS09
Compatible with the GPS09c GPS module for accurate positioning data, enhancing track mapping and lap analysis.

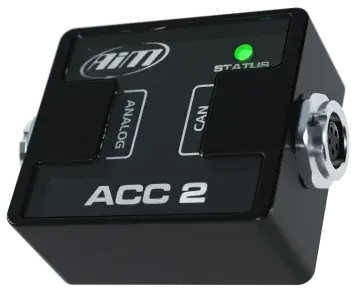

ACC 2
Allows for integration of analogue inputs to capture additional sensor data, expanding the range of performance metrics recorded.
SmartyCam 3 Series
Seamlessly integrates with motorsport cameras for synchronised video recording, providing visual context to data analysis.
"If you can’t explain it simply, you dont
understand it well enough.”
Albert Einstein
Utilise Race Studio 3 to manage configurations, access a vast track library, and analyse performance with video support.
Expand
Your System
Enhance the functionality, performance and reliability of your Aim products with our range of expansions designed to increase the range and depth of data collection and analysis.
