GS Dash
Technical Information
Model
GS Dash
Overview

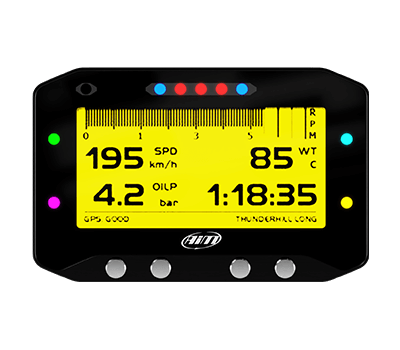

The Aim GS-Dash has been designed to show data sampled by EVO4S and EVO5 loggers.
Its small dimension makes it particularly suitable for small cockpit installations, such as formula cars and kit cars. Manufactured in aluminium with edge to edge glass and metallic push buttons the Aim GS Dash is robust and fully waterproof.
It displays racing data from the vehicle ECU, from the accelerometers, GPS and any custom sensors. It features a 5 pin binder 712 male spiral cable which will enable you to connect your EVO4S or EVO5 with minimum effort.
Please Note: The GS-Dash is not compatible with EVO4.
It displays racing data from the vehicle ECU, from the accelerometers, GPS and any custom sensors. It features a 5 pin binder 712 male spiral cable which will enable you to connect your EVO4S or EVO5 with minimum effort.
Please Note: The GS-Dash is not compatible with EVO4.
Size & Weight
- Dimensions: 127.8 x 82 x 22.2 mm
- Weight: 380g
Waterproof
- IP 65
In The Box
- GS-Dash with spiral cable
- Aim sticker
Technical
- Light Sensor: Yes
- Alarm LEDs: 4 configurable RGB LEDs
- Shift Lights: 5 configurable RGB LEDs
- Display Pages: Fully configurable
- Body: Aluminium
- Pushbuttons: Metallic
Display
- Resolution: 268 x 128 pixels
- Backlight: 7 configurable RGB colours

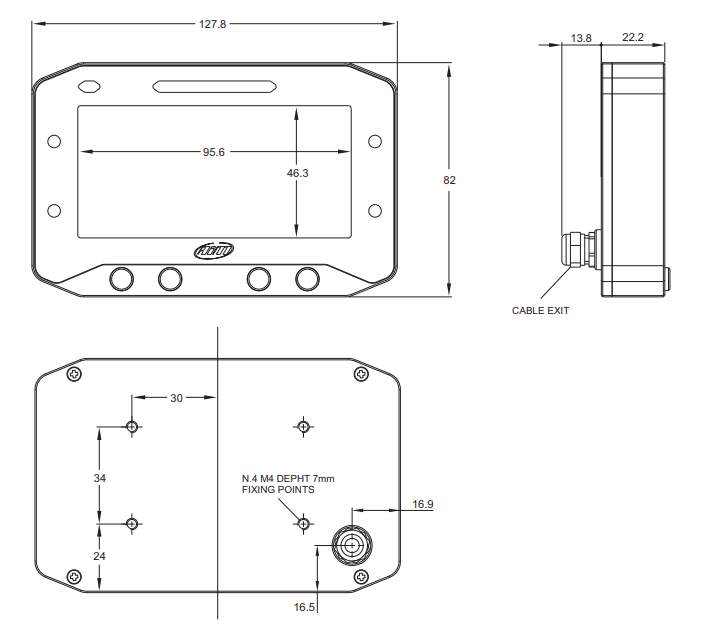

Diagram
