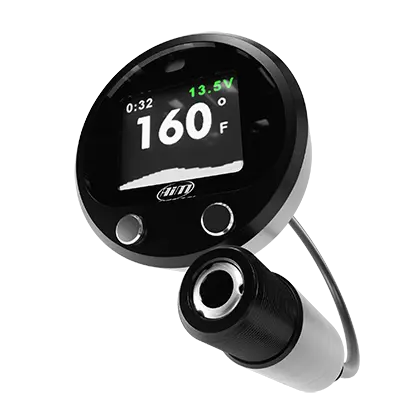

Infrared Belt Temperature System
Technical Information
Model
Infrared Belt Temperature System
Overview
The Infrared Belt Temperature System reads the belt temperature and battery voltage.
Key Features
- Reads belt temperature
- Reads battery voltage
- Set alarms for warnings
- Set alarms thresholds
- Display in Fahrenheit / Celsius
- TFT display
- RGB LED alerts
- IP65 water resistant
Waterproof
- IP 65
In The Box
- Gauge
- One Sensor - Single point temperature sensor
- Power Cable
- 3m extension cable
- Sensor fixing kit
- Aim sticker
Technical
- SENSOR:
- 1 Measurement point
- Field of view 12°
- Temperature range -60/550°F
- Real time temperature tracking
- Average temperature tracking
- Tracks average temperatures over the last 15', 30' or 90' of run time
- GAUGE:
- RGB LED Alert: the LED starts blinking red when the temperature exceeds the user defined level
- Anti-Glare TFT display
- Anodised aluminium body
- Vibration proof
- 1P65 Water resistant

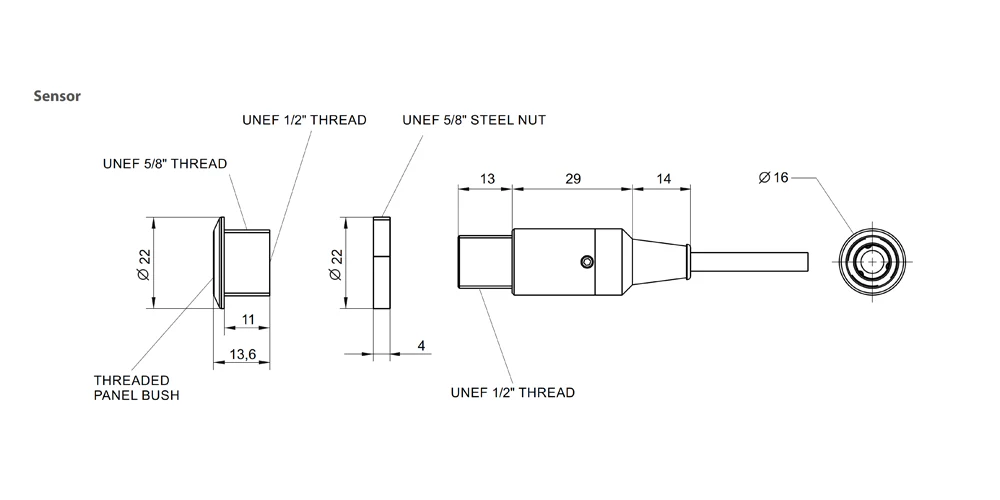

Sensor Diagram

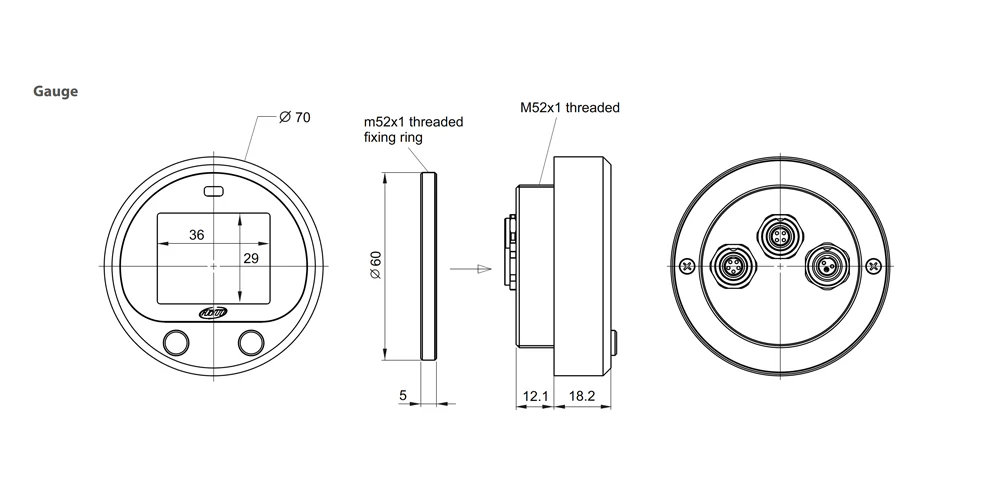

Gauge Diagram
